18. BCD INPUT
1. BCD code is all-digit parallel input at NPN open collector pulse input.
2. Input logic of data can be changed.(Refer to P42)
Hi Active : Each input terminal and GND are open.
Low Active : Each input terminal and GND are open.
3. Latch Signal Input
Data is not input when latch signal is input.
0 : Latch on short - Data is not input when latch signal pin (37pin) and GND are short.
1 : Latch on open - Data is not input when latch signal pin (37pin) and GND are open.
4. When this option is selected, D-sub37P male connector (XM2A-3701) and Hood (XM2S-3711) are attached
by the addition.

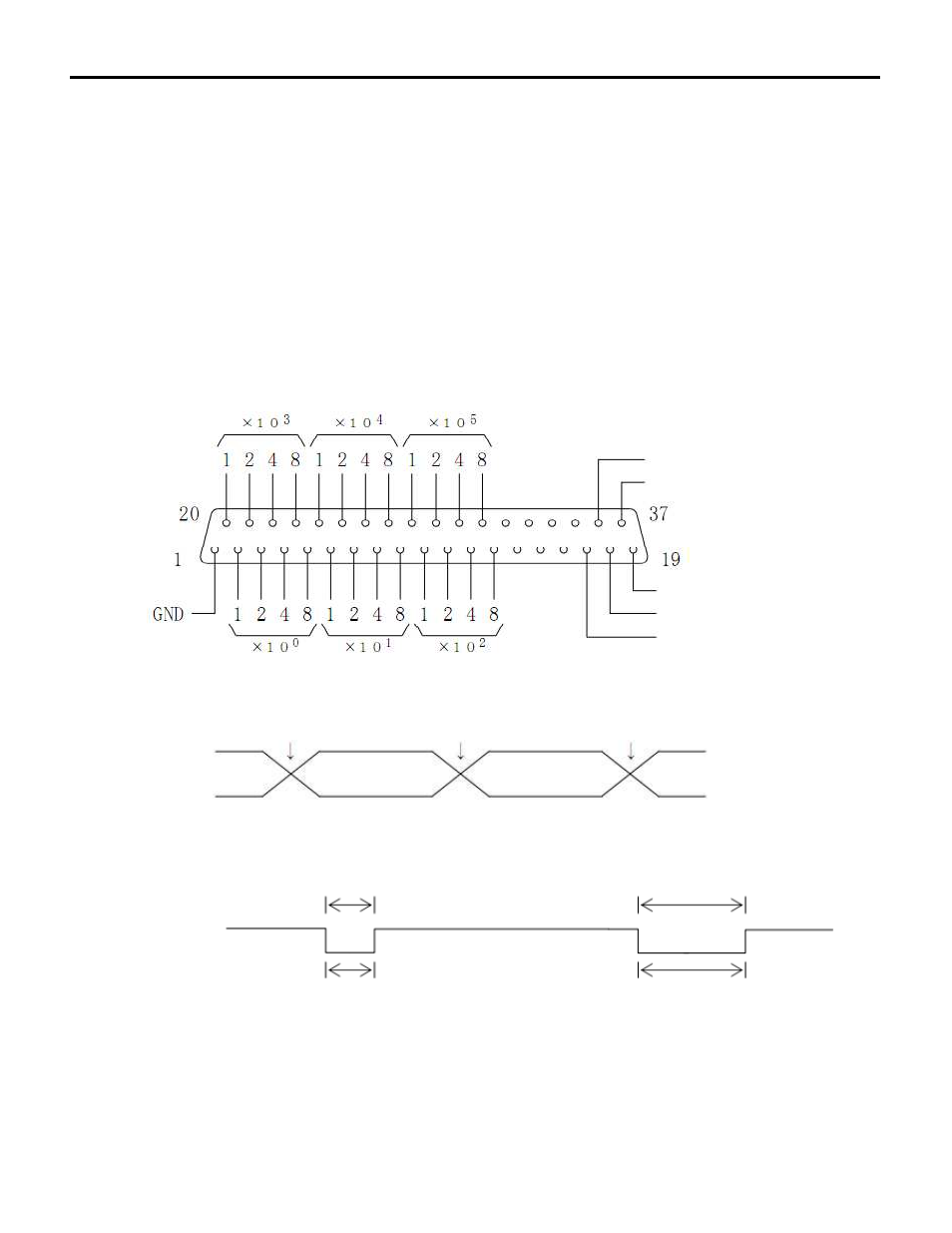

BCD Input Pin Layout (D-Sub 37P fenmale connector at meter side)
Taking Data (Latch Signal Input logic is "Latch on short")
Minus Sign
Spare Input
Meter side
Latch Input
GND
Spare Input
BCD Data BCD Data
Update Update Update
50ms or more 50ms or more
Latch ON (Short)
Latch OFF (Open)
Taking data is possible. Taking data is possible.
