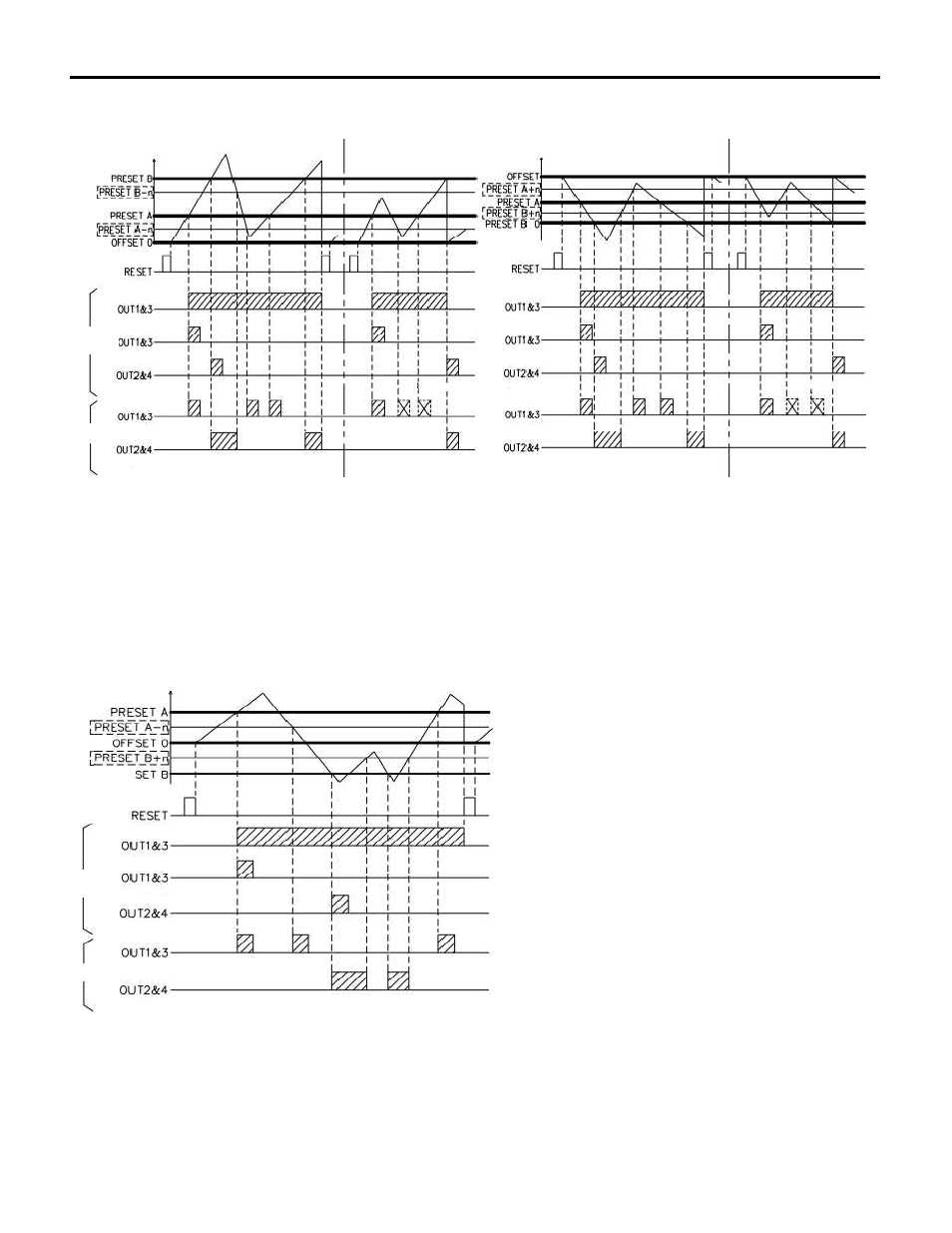

Output timing for preset action and setting condition
0: Plus side 2stages preset action
Setting name (contents)
PRESET A: 1stage setting value
PRESET B: 2nd stage setting value
OFFSET: Display value when reset (display offset value)
Setting condition
UP: Offset =0, OFFSET< PRESET A < PRESET B
DOWN: PRESET B=0, PRESET B< PRESET A < OFFSET
1: ±Each 1stage preset action
Setting name (contents)
PRESET A: Plus side setting value
PRESET B: Minus side setting value
OFFSET: Display value when reset (display offset value)
Setting condition (set each item as follow)
UP/DOWN: OFFSET=0, PRESET B< Offset < PRESET A
with re-output
without
re-output
with re-output
without
re-output
P26
