5. CONNECTING TERMINAL BLOCK
Caution!
(1) Check power supply
1. Be careful not to get a shock while wiring.
2. Pay attention if the unit is for AC power supply type or DC power supply type
3. In case of DC power supply, carefully check +,-. Do not connect other way round
(2) Check the names of terminals and wire them correctly

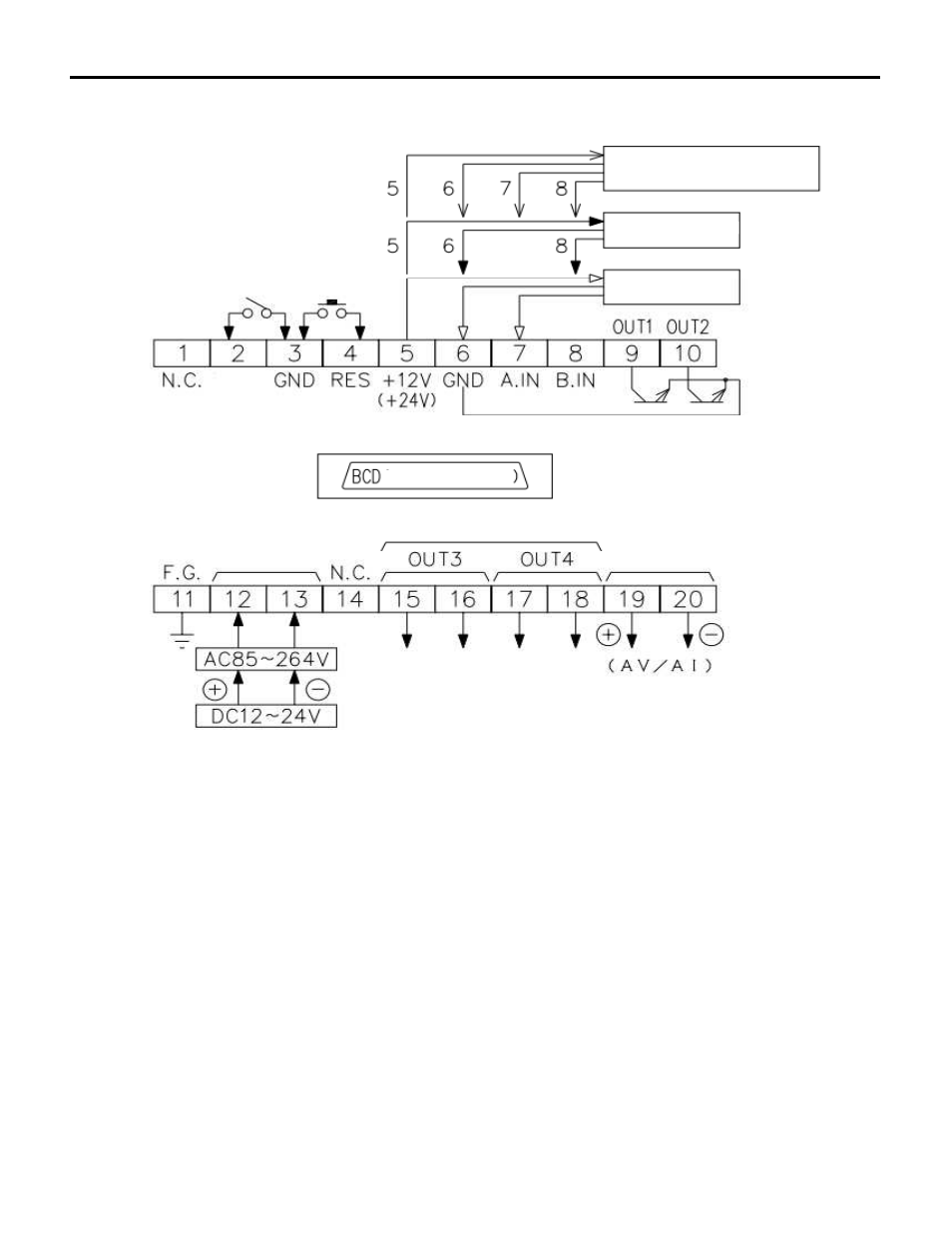

(3) Wiring differs depending on the sensors. Refer to the wiring diagram on P11.
Maximum power supply to sensor is DC12V 100mA (optionally: DC24V 60mA), never over load.
Wrong wiring might cause damages to sensor or circuit.
(4) Make sure to tighten the screws on the terminal block
(5) About BCD output, please refer to " BCD output" on P48
About BCD input, please refer to "BCD input" on P49
(6) Sensor's power source should not be used for other usage.
Encoder 90°phase contrast
(Option)
Pulse sensor B
Pulse sensor A Reset
External
Input
NPN Open collector pulse output
output/input(Option
Analog output (Option) Power supply
Relay output
( PhotoMOS relay )
