Instruction manual, Panel mount tachometer model dt-5rl-1, 2, 3, Features

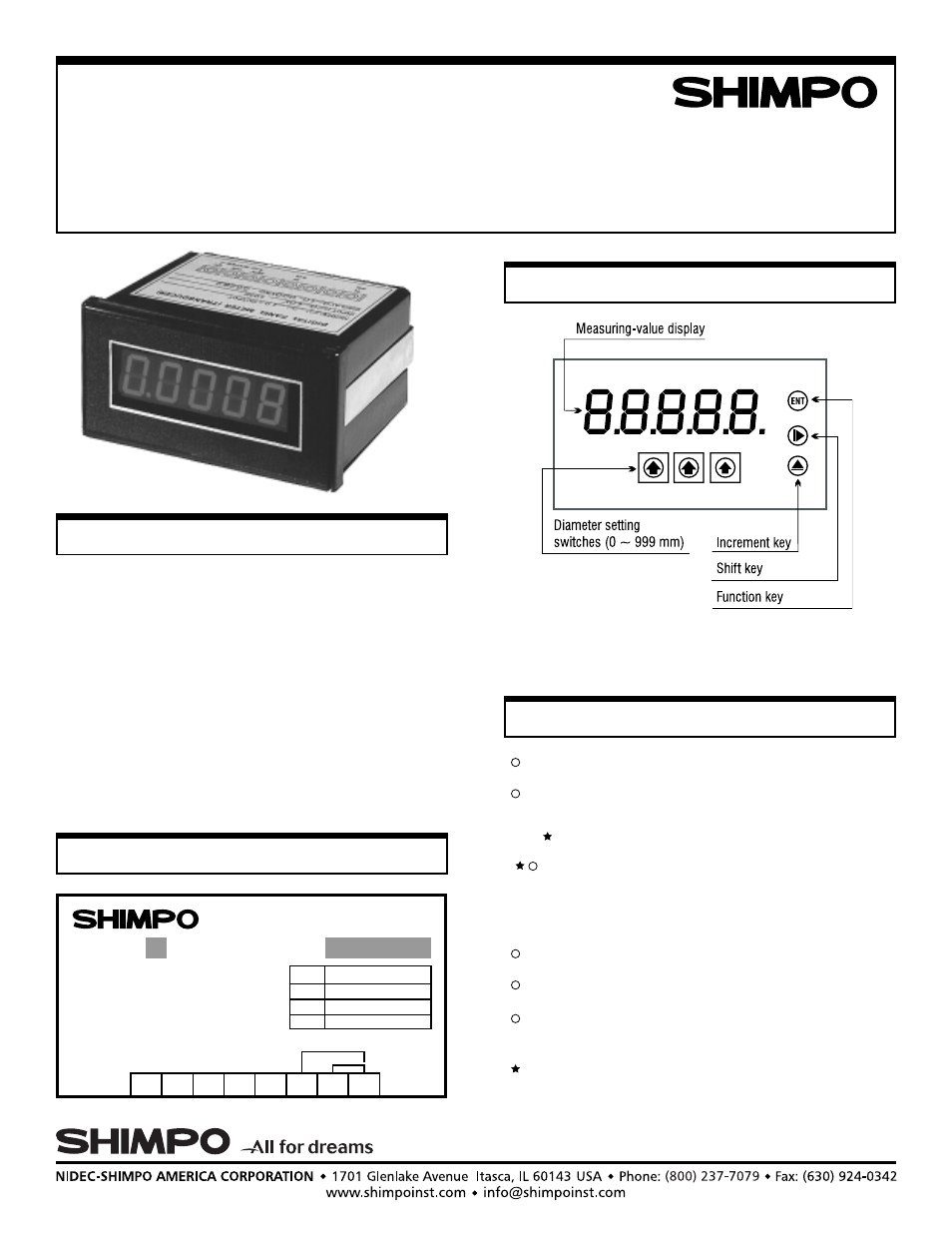

Instruction Manual
Features
Panel Mount
Tachometer
Model DT-5RL-1, 2, 3
*
•
Range
(0 - 99999)
•
Accuracy
0.01% F.S.
•
Input frequency 5KHz max.
•
Measures
RPM or linear speed (scaleable)
•
Linear Speed
y/min, m/min or ft/min (selectable)
•
Number of ppr (1 - 9999)
•
Decimal point
selectable
•
Display
5 digit LED .56" (14.22mm) high
•
Sampling Time 0.1 ~ 99.9 sec. (selectable)
•
"dP" (decimal point selection)
•
"diS-t" (display "function" selection)
•
"r-t" (RPM)
•
"L-t" (linear-speed)
"unit" (display unit)
•
"nn" (M/min)
•
"Ft" (Ft/min)
•
"Y" (Y/min)
"PPr" number of pulses per revolution
"LS-t" sampling time (0.1 ~ 99.9 seconds)
"Aug" select according to how fast the observed
speed changes. Set anywhere between 1and 99.
Set diameter of feeding roller through the three
rotary switches.
Symbol Detail
Name of Parts
•
•
•
•
DIGITAL TACHOMETER
S/N
DT-5RL-
1 2 3 4 5 6 7 8
No.
SIGNAL INPUT
1
TTL LEVEL
2
NPN O.C.
3 1-60VAC
NIDEC-SHIMPO
AMERICA CORPORATION
ITASCA, IL (630) 924-7138
SIG
OV
+12V
50mA
230 VAC
115 VAC
To access keys, remove front bezel with flathead screwdriver
in slot at bottom of bezel and twist.
Wiring Detail
