SHIMPO DT-601CG User Manual
Page 8

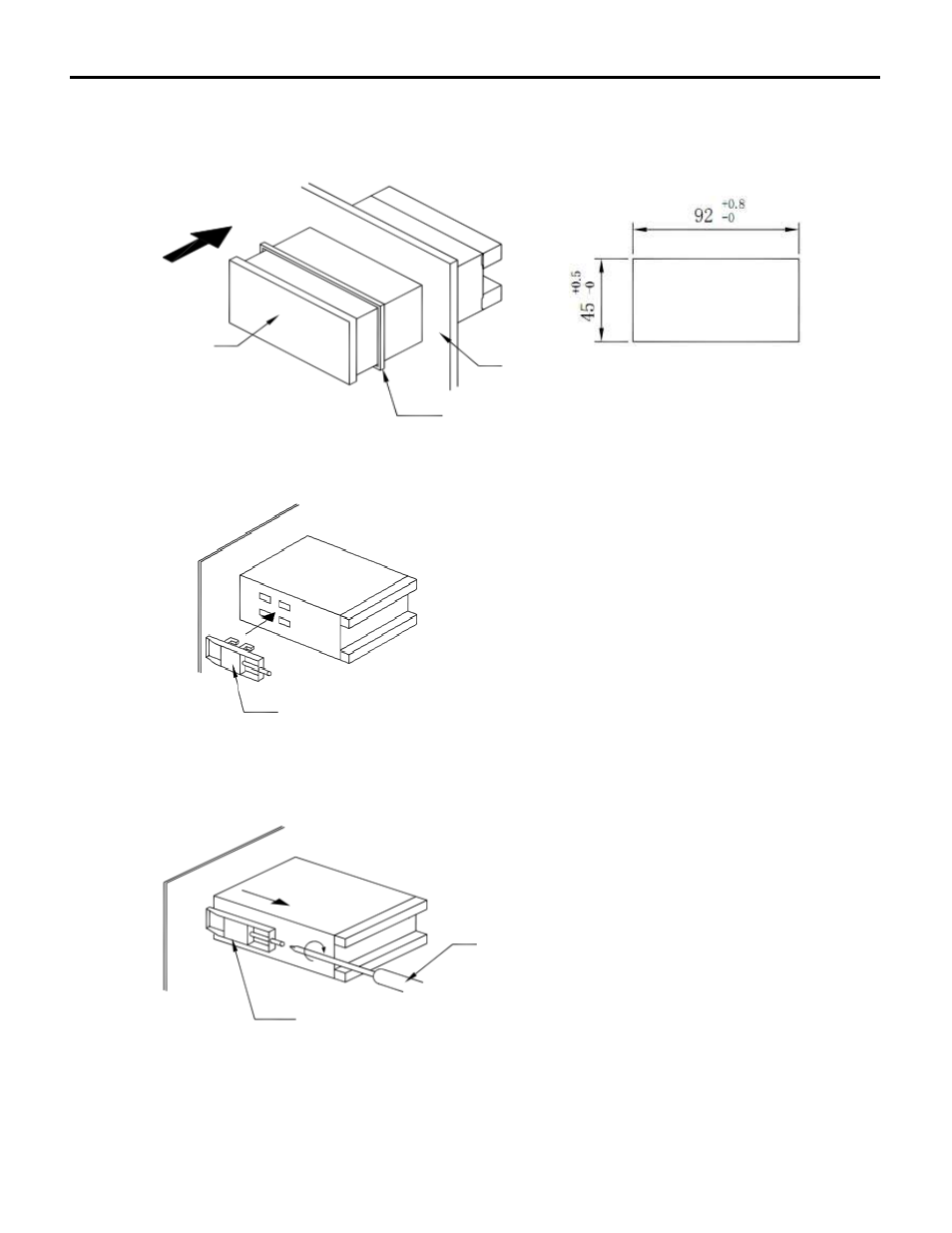

3. METER INSTALLATION
(1) Cut the panel and insert the meter from the front part.
* When you need a splash proof,
insert the attached splash proof packing between meter and installation panel.
Dimensions of panel
(2) Insert the attachment lugs in both sides of the meter.
(3) Slide the attachment lugs to the back(towards the terminal block side),
and turn the screw to steady the meter. (both sides)
NOTE :
1. Make sure to horizontally installed
2. Panel has to be 1.0mm to 4.0mm thick.
3. Do not tighten the screw too much. The case might break.
Meter
Installation panel
Splash proof packing
Attachement parts
Attachement parts
Driver
P6
