Mode# Setting of the indicated value of Max. Analog output AV3-5/AI exclusive use
1 1 * This setting is necessary when AV3-5/AI option is chosen.
A B C D E F
1 1. 1 0 0 0
Display 0001 - 9999
( Do not set "0000" )
[Setting the indicated value of Max. Analog output]
Setting the indicated value of Max. Analog output.
Set 4 digits, and disregard the decimal point at that time.
[example 1]
Analog output is AV5(0-10V), Setting of maximum output when display is _ _ 1 0 0 0
A B C D E F Mode 10
1 0. 0 E : 0
A B C D E F Mode 11
1 0. 1 0 0 0 C - F (Display is "1000" when output is maximum)
Analog output is a absolute value of display value.

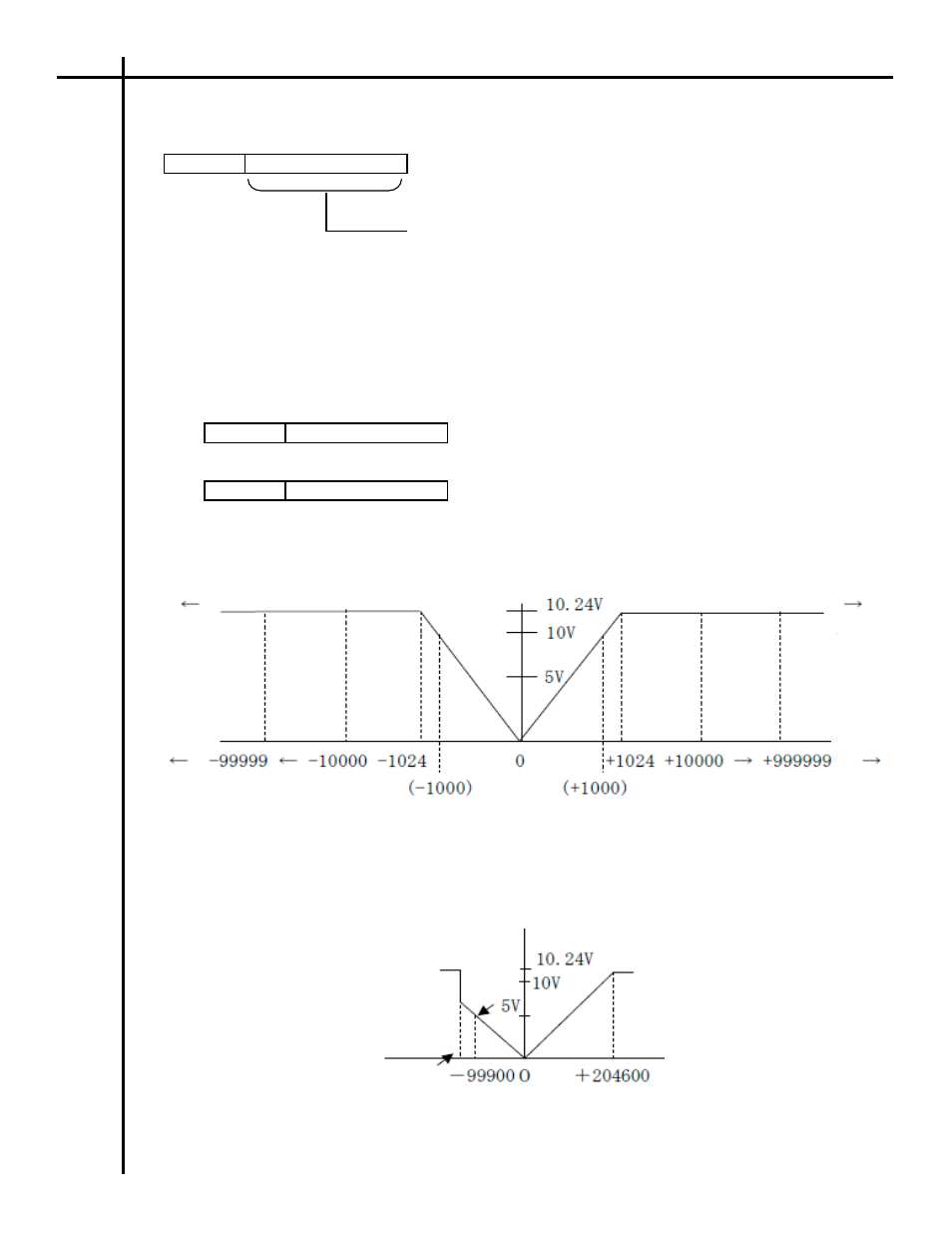

Output is as shown in the figure below.
[example 2]
Output digits is 4 digits of left, Display is 2000 when maximum analog output, Range is DC0-10V.
It is shown in the figure below when these conditions,
Analog Output Value
Over Over
Display
Over
P38,39
