SUMMIT 8800 DISPLAY & WEB ACCESS 06
6 .8 .2 .1 Variable
The variable item can be used as a place holder for any type of variable:

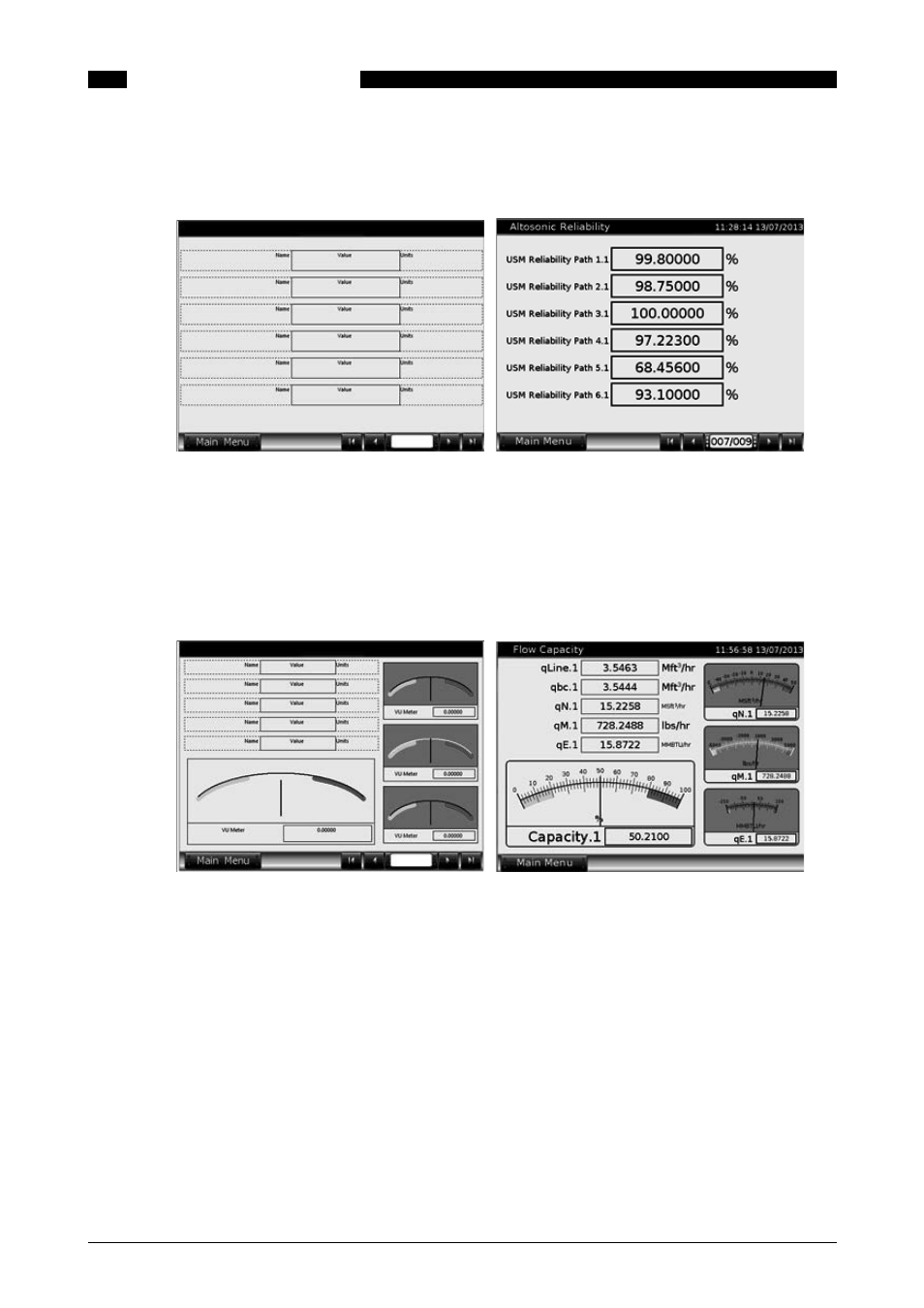

Figure 75 Template: variable configuration and Summit screen
Nothing needs to be configured for a variable.
6 .8 .2 .2 VU Meter
A VU meter is a mimic of an analog panel meter. Multiple meters can be on one page, each with
their own settings:
Figure 76 Template: VU meter configuration and Summit screen
The big VU meter below left used the standard settings, the small meter below right uses the
settings below.
Right clicking on the VU Meter or pressing “configure”, will bring up the settings:
