Select the colours to be used for the mimic items. Normally these are:
Mask Colour the colour for the base or background of the item.
OK Colour the colour for the item when its status is OK
Alarm Colour the colour for the item when in alarm
Warning Colour the colour for the item when in warning
For buttons, to make them look more dynamic, the colouring of the background and text can
change depending if the button is:
Enabled The colour when the supervisory mode is enabled
Disabled The colour when the supervisory mode is disabled
Pressed The colour when the button is pressed
For text there is only a foreground and background colour.
For lines, thin pipes and solid boxes, there is only one colour, so the colour palette will be shown
immediately:

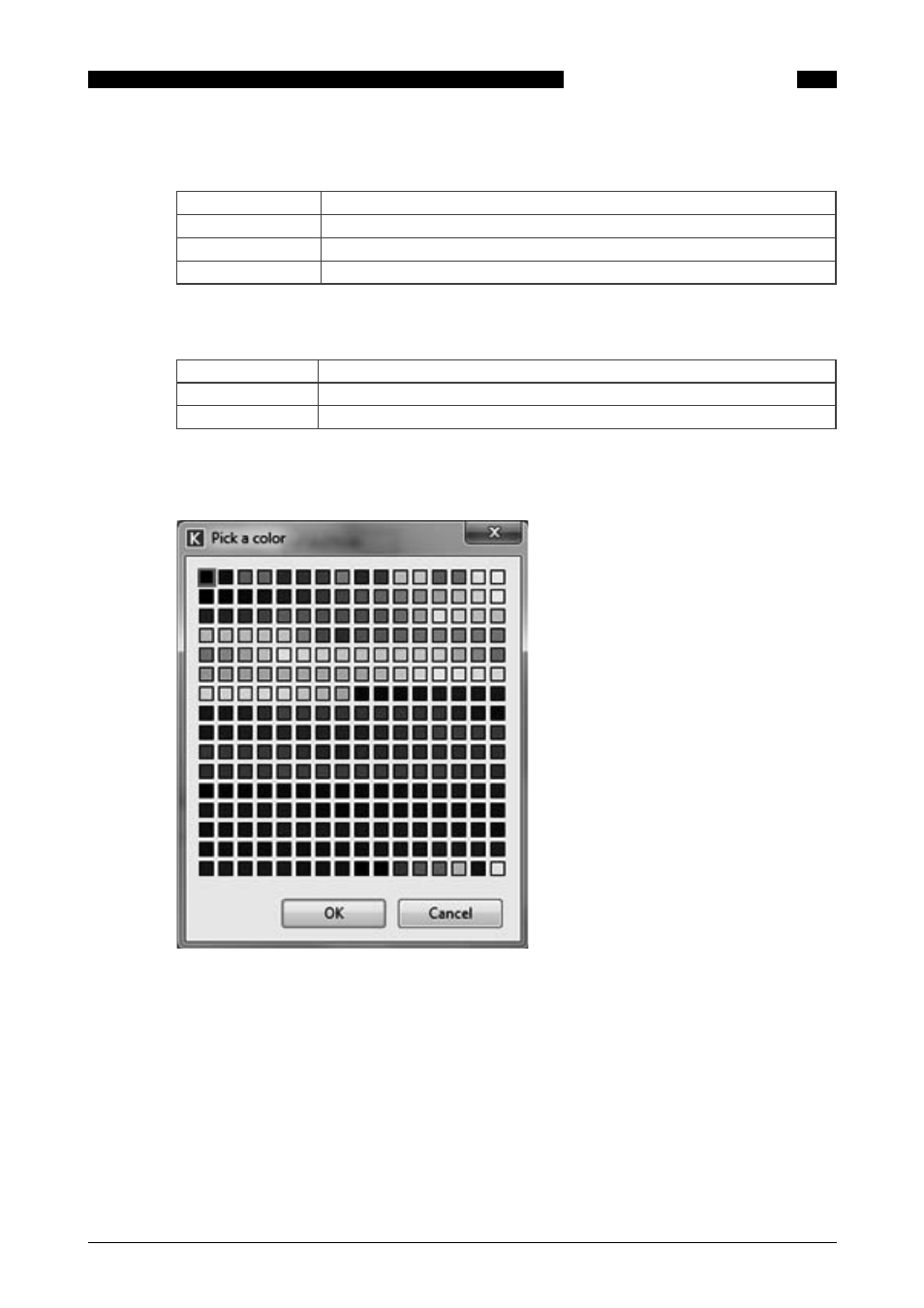

Figure 59 Mimic item colour palette
