SUMMIT 8800 DISPLAY & WEB ACCESS 06
6 .7 .3 .2 Alarms and warnings
In most mimic items, colours can be depending on alarms or warnings. Here the actual alarm
and warning are defined.

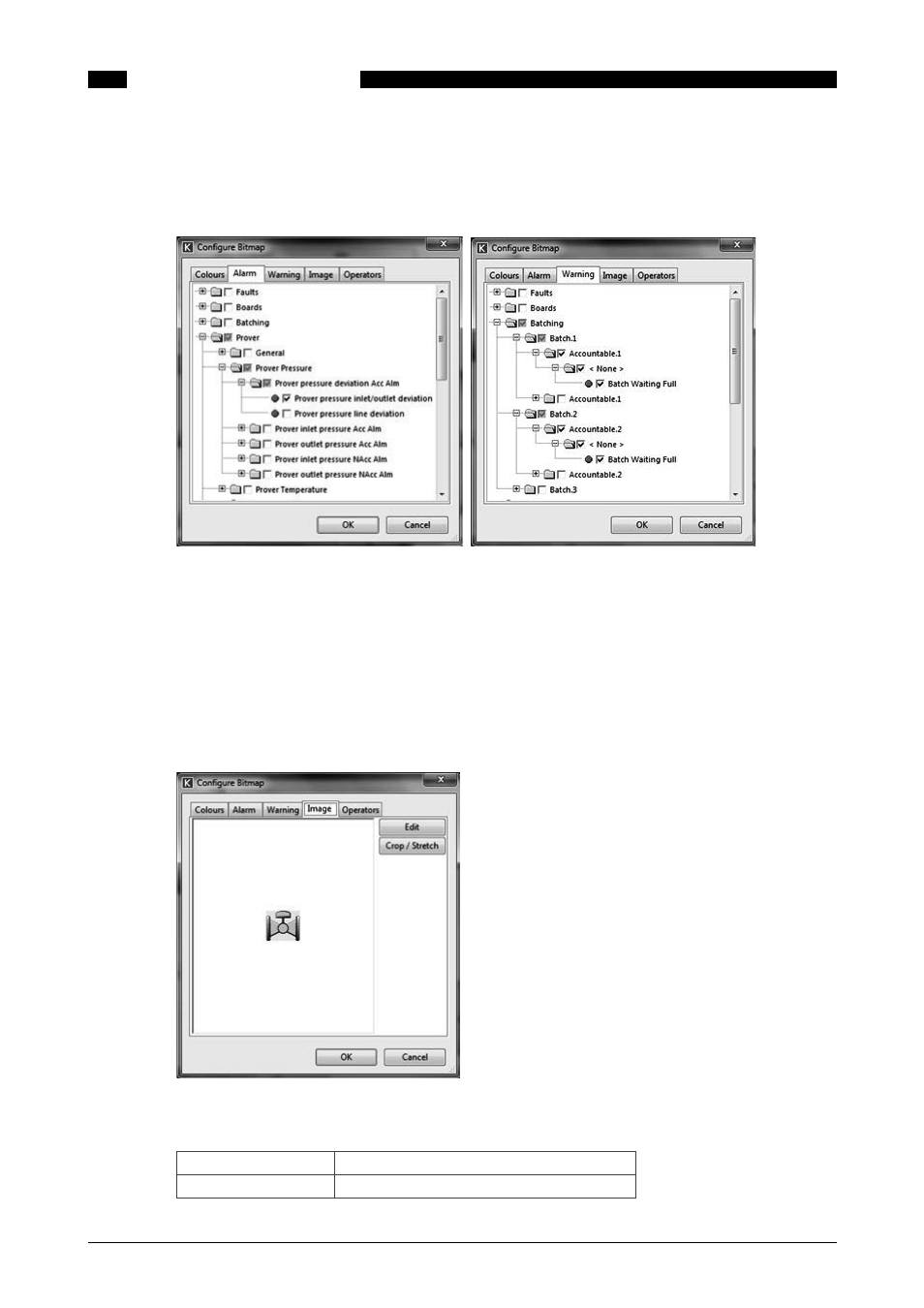

Figure 60 Mimic item configure an alarm and warning
A selection can be made from an ID tree which alarms/ warnings are involved with the colour
change. This can be one single alarm, but can also be a combination of several alarms e.g. to
create one meter system alarm.
6 .7 .3 .3 Image
Most mimic items have a picture that can be changed:
Figure 61 Mimic item configure image
The following options are available:
Edit the bitmap Change, import or export the bitmap at will.
Crop the bitmap Make the bitmap smaller
