2.7GHz Spectrum Analyzer Operation Manual

85

RF Diagnosis

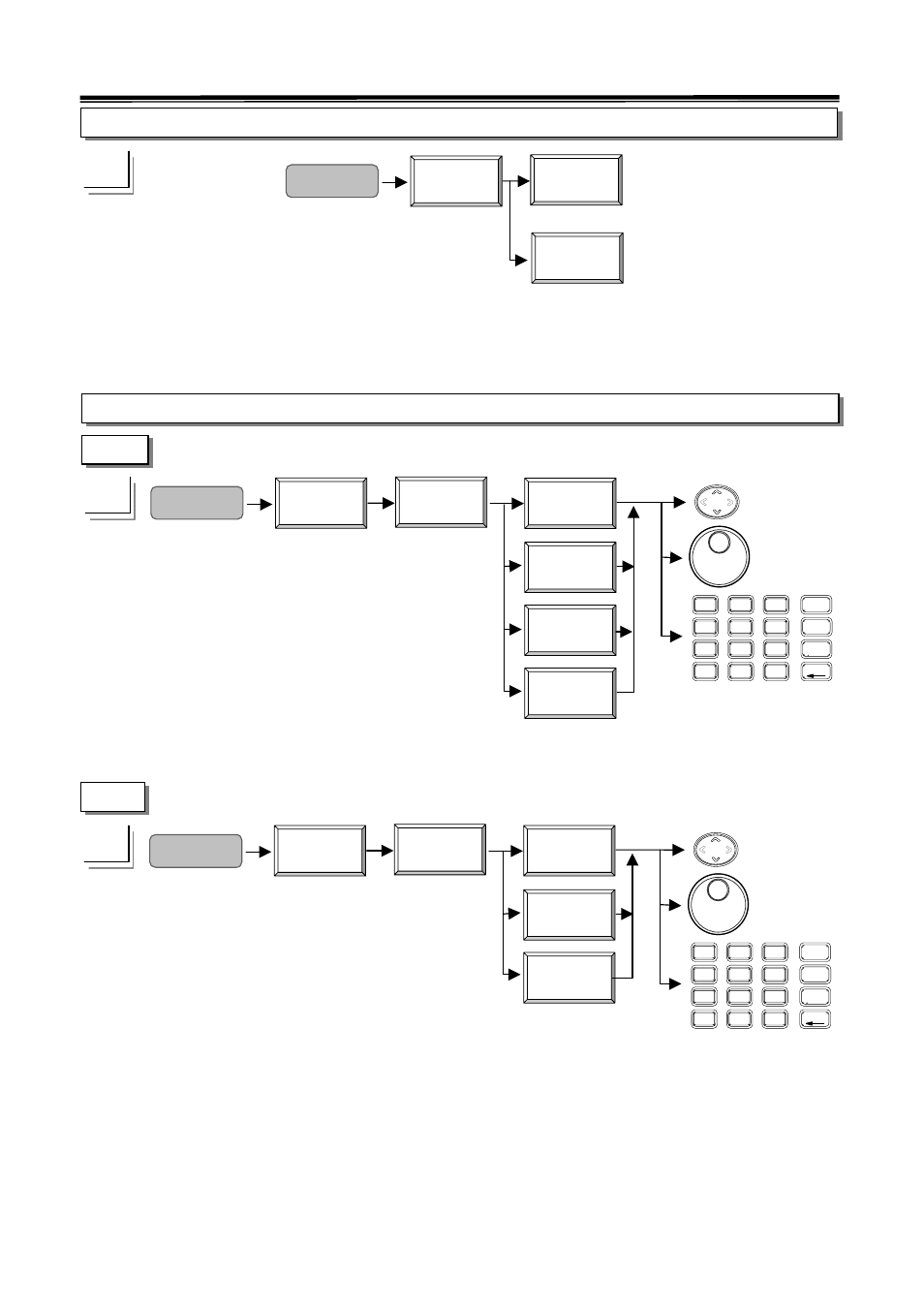

The RF Diagno will tell the LED status of LO1 and reference signal, F Word, N Word and
F Word

. The LED has to be set ON in normal operation.

System Clock

Date

First select Year, Month, Day, Day of Week and followed with UP/DOWN, Scroll or

Editing

keys to specify the current date.

Time

+-

First select Hour, Minute, Second and followed with UP/DOWN, Scroll or Editing keys to

specify the current date. The Hour here is in 24 hours form.
