2.7GHz Spectrum Analyzer Operation Manual
⎯ ⎯
66
OCBW %

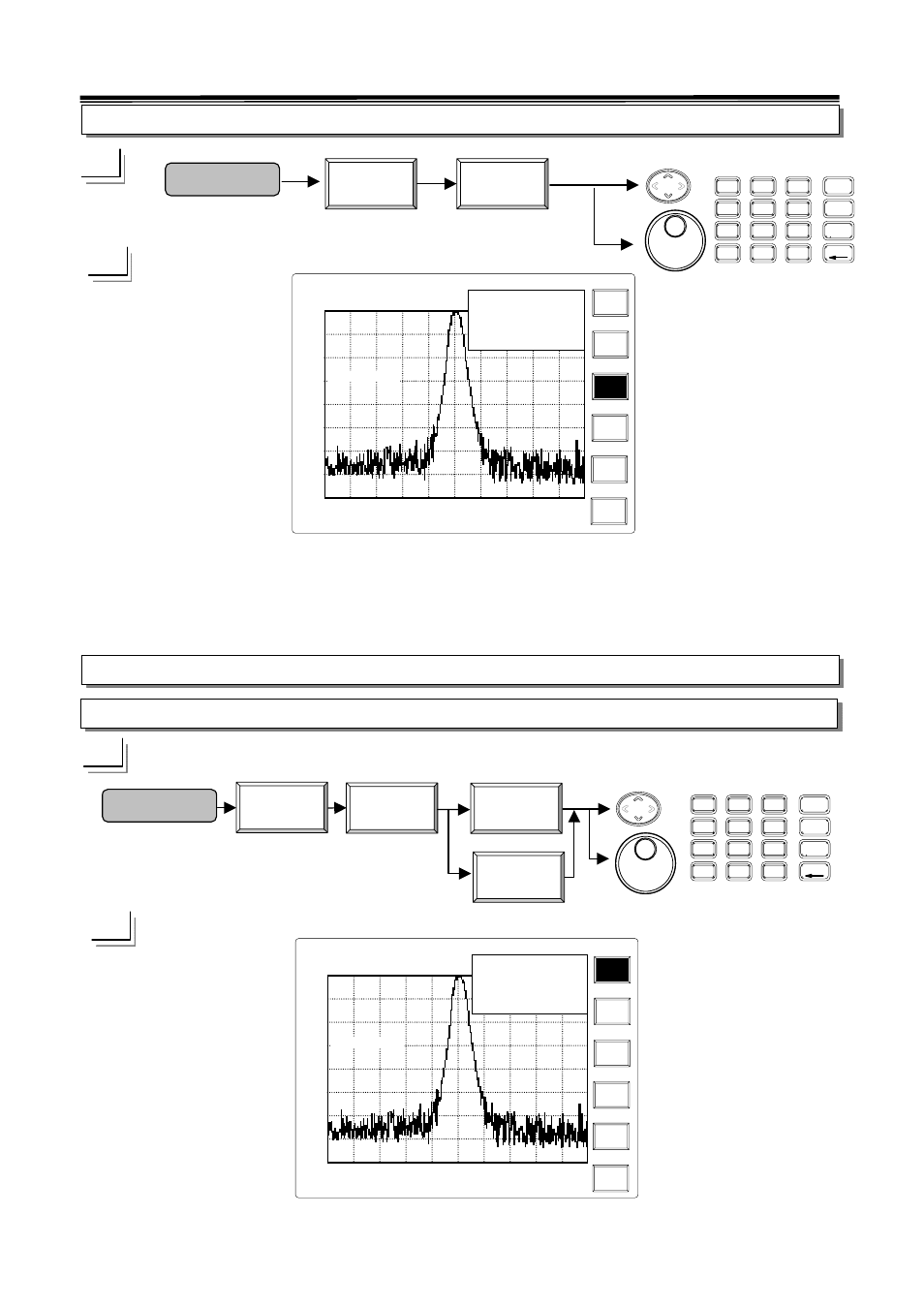

UP/DOWN and Scroll: To change the power ratio by 1 percent for every adjustment.
Editing : Numerical keys followed by Enter key can set from 0 to 100 % directly.
Adjacent Channel Offset
Adjacent Channel Bandwidth 1(2)
Pwr Measure
0
1 2 3
7
6 5 4
8 9
. -
GHz
dBm
MHz
dBmV
kHz
dBuV
BK SP
1
OCBW % Setup
Start:99.5MHz
RBW:30 kHz
Stop:100.5MHz
VBW:100 kHz
Center:100.0MHz
Span:1.0MHz
Sweep:100.0ms
Percent: 90 %
Ref Lvl: -30.0 dBm
-30.0
-40.0
-50.0
-60.0
-70.0
-80.0
-90.0
-110.0
-100.0
SAT JAN 28, 2003 14:30:25
INT:REF
AMPL CAL
Power Measurement
ACPR
LACPR UACPR
1: -41.42 -40.56 dB
2: --- ---
OCBW:205 kHz
Power:-30.2dBm CH SPC
ADJ CH
OFFSET
Return
CH BW
OCBW %
Pwr Measure
0
1 2 3
7
6 5 4
8 9
. -
GHz
dBm
MHz
dBmV
kHz
dBuV
BK SP
1
Start:99.5MHz
RBW:30 kHz
Stop:100.5MHz
VBW:100 kHz
Center:100.0MHz
Span:1.0MHz
Sweep:100.0ms
BW:100 kHz
Ref Lvl: -30.0 dBm
-30.0
-40.0
-50.0
-60.0
-70.0
-80.0
-90.0
-110.0
-100.0
SAT JAN 28, 2003 14:30:25
INT:REF
AMPL CAL
Power Measurement
Adj CH
BW 1
Adj CH
Offs 1
ADJ CH
BW 1
Setup
ACPR
LACPR UACPR
1: -41.42 -40.56 dB
2: --- ---
OCBW:205 kHz
Power:-30.2dBm
Return
Adj CH
BW 2
Adj CH
Offs 2
ADJ CH
OFFSET
ADJ CH
BW 2
