GW Instek GSP-827 User Manual - Manual (Page 54)

2.7GHz Spectrum Analyzer Operation Manual
⎯ ⎯
53
To Peak

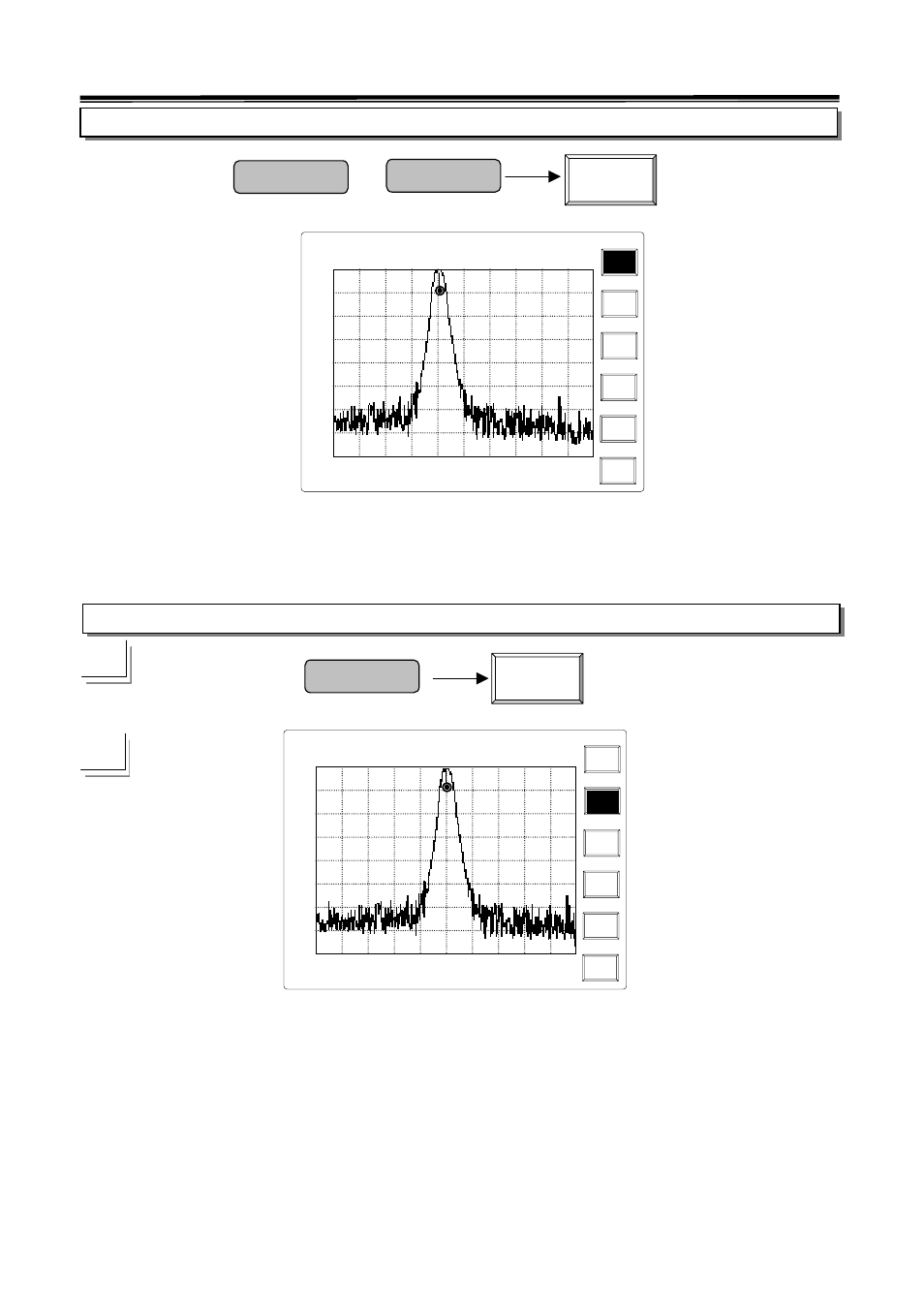

The marker will find the peak signal on the display. In MM Mode, the currently activated marker
will find the peak.
Marker to Center
Note: The difference from Peak to Center in Frequency functions is that the Marker is
activated in Peak Search group.
1
Peak Search To
Peak
Peak Search
,
1
Peak Search
Mkr->
Center
Start:99.6MHz
RBW:30 kHz
Stop:100.6MHz
VBW:100 kHz
Center:100.1MHz
Span:1.0MHz
Sweep:100.0ms
To
Peak
Peak
Left
Ref Lvl: -30.0 dBm
-30.0
-40.0
-50.0
-60.0
-70.0
-80.0
-90.0
-110.0
-100.0
SAT JAN 28, 2003 14:30:25
INT:REF
AMPL CAL
Marker Level Freq(MHz)
1 -30.7 100.0
Mkr-
>Cente
r
Start:99.5MHz
RBW:30 kHz
Stop:100.5MHz
VBW:100 kHz
Center:100.0MHz
Span:1.0MHz
Sweep:100.0ms
Ref Lvl: -30.0 dBm
-30.0
-40.0
-50.0
-60.0
-70.0
-80.0
-90.0
-110.0
-100.0
SAT JAN 28, 2003 14:30:25
INT:REF
AMPL CAL
Marker Level Freq(MHz)
1 -30.7 100.0
Peak
Right
Next
Peak
Track
ON OFF
To
Peak
Peak
Left
Mkr-
>Cente
r
Peak
Right
Next
Peak
Track
ON OFF
