2.7GHz Spectrum Analyzer Operation Manual
⎯ ⎯
73
VBW

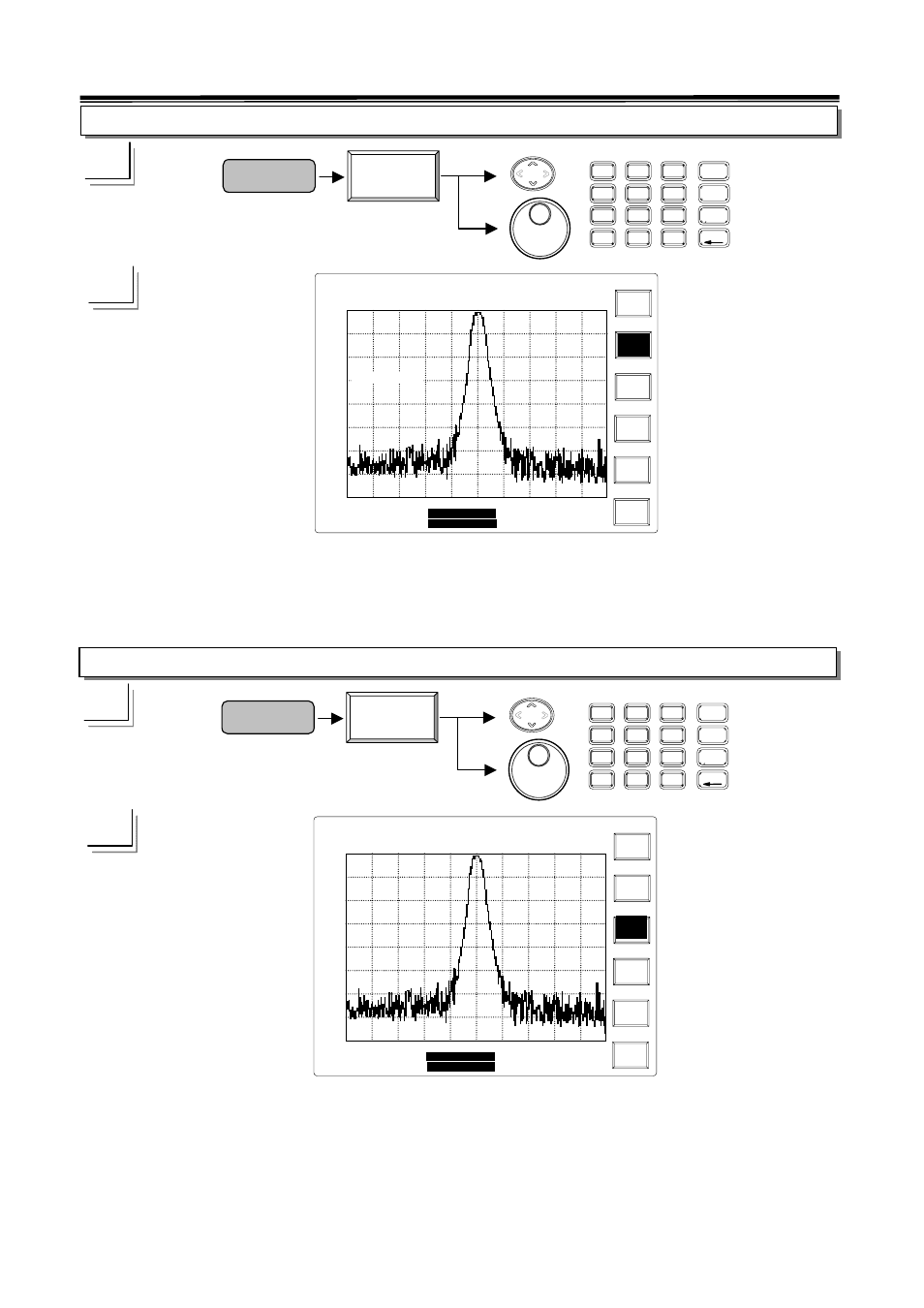

Repeating VBW Auto key can switch the VBW between Auto and Manual mode.
UP/DOWN
and Scroll: Select the RBW within 10Hz to 1MHz in 1-3 sequence in Manu Mode.
Editing : The editing entry will select the closest VBW as described above.
Sweep Time
Repeating SwpTm Auto key can switch the Sweep Time between Auto and Manual mode.
UP/DOWN
and Scroll: Change the Sweep Time to Manu Mode.
Editing : Enter the sweep time directly. The minimum is 100msec.
