NO T-TAPS
PERMITTED
+
+
+
+
+
+
SIG 1
INP 1
INP 1
SIG 2
INP 2
INP 2
CONTROL PANEL
TYPICAL SUPERVISORY SWITCHES
4.7K EOL RESISTOR
P/N 46229-0107
0R EOL-P1
STYLE B (CLASS B) SUPERVISORY INITIATING DEVICE CIRCUIT WIRING
1. ZONE CONFIGURED AS SUPERVISORY ZONE.
NOTE
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
2 ZONE IDC MODULE
+
+
+
+
+
+
SIG 1
INP 1
INP 1
SIG 2
INP 2
INP 2
CONTROL PANEL
2 ZONE IDC MODULE
4.7K EOL RESISTOR
P/N 46229-0107
0R EOL-P1
1.1K INLINE AND
3.6K EOL RESISTOR
P/N 46229-0409
0R EOL-P1
STYLE B (CLASS B) ALARM INITIATING DEVICE CIRCUIT WIRING
1. CONFIGURE ZONE AS ALARM OR
HIGH IMPEDANCE VERIFIED ALARM ZONE.
1. CONFIGURE ZONE AS ALARM OR HIGH
IMPEDANCE VERIFIED ALARM ZONE.
2. DO NOT MIX 2-WIRE SMOKE DETECTORS OF
DIFFERENT MANUFACTURERS ON ANY CIRCUIT.
2. DO NOT MIX 2-WIRE SMOKE DETECTORS OF
DIFFERENT MANUFACTURERS ON ANY CIRCUIT.
3. DO NOT MIX 2-WIRE DETECTORS OF DIFFERENT
TYPES (I.E. ION, PHOTOELECTRIC) ON SAME
CIRCUIT.
NOTES
NOTES
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
IN
OUT
+
+
MANUAL PULL
STATION
COMPATIBLE SMOKE
DETECTOR
HEAT
DETECTOR
+
+
+
+
+
+
+
+
SIG 1
SIG 1
INP 1
INP 1
INP 1
INP 1
SIG 2
SIG 2
INP 2
INP 2
INP 2
INP 2
CONTROL PANEL
2 ZONE IDC MODULE
STYLE D (CLASS A) ALARM INITIATING DEVICE CIRCUIT WIRING
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
IN
OUT
+
+
MANUAL PULL
STATION
COMPATIBLE SMOKE
DETECTOR
HEAT
DETECTOR
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
SIG 1
SIG 1
INP 1
INP 1
INP 1
INP 1
SIG 2
SIG 2
SIG 2
SIG 2
INP 2
INP 2
INP 2
INP 2
CONTROL PANEL
CONTROL PANEL
TYPICAL WATERFLOW SWITCHES
TYPICAL SUPERVISORY SWITCHES
STYLE D (CLASS A) WATERFLOW ALARM INITIATING DEVICE CIRCUIT WIRING
STYLE D (CLASS A) SUPERVISORY INITIATING DEVICE CIRCUIT WIRING
1. ZONE CONFIGURED AS WATERFLOW/SUPERVISORY ZONE.
1. ZONE CONFIGURED AS SUPERVISORY ZONE.
NOTE
NOTE
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
2 ZONE IDC MODULE
2 ZONE IDC MODULE
+
+
+
+
INP 1
INP 1
INP 2
INP 2
STYLE D/Z CONVERTER
CAT. NO. 2400-BPA
STYLE D/Z CONVERTER
CAT. NO. 2400-BPA
STYLE D/Z CONVERTER
CAT. NO. 2400-BPA
+
+
+
+
+
+
+
+
SIG 1
SIG 1
INP 1
INP 1
INP 2
INP 2
STYLE D IDC CONVERTER
CAT. NO. 2400-IDCA
STYLE D IDC CONVERTER
CAT. NO. 2400-IDCA
STYLE D IDC CONVERTER
CAT. NO. IDCA
+
+
+
+
+
+
SIG 1
INP 1
INP 1
SIG 2
INP 2
INP 2
CONTROL PANEL
TYPICAL WATERFLOW SWITCHES
STYLE B (CLASS B) WATERFLOW/SUPERVISORY ALARM INITIATING DEVICE CIRCUIT WIRING
1. ZONE CONFIGURED AS WATERFLOW/SUPERVISORY
OR WATERFLOW/SUPERVISORY WITH RETARD.
2 INLINE SERIES RESISTOR AND SUPERVISORY
SWITCH MUST BE LOCATED ELECTRICALLY
BEYOND ANY WATERFLOW SWITCHES.
NOTES
ADDITIONAL CIRCUITS WIRED
SAME AS INP1.
2 ZONE IDC MODULE
TYPICAL
SUPERVISORY SWITCHES
1. ALL WIRING SUPERVISED AND
POWER LIMITED.
2. MAXIMUM WIRE RESISTANCE
SHOULD NOT EXCEED 50 OHMS
PER CIRCUIT.
3. NO T-TAPS PERMITTED ON ANY
IDC CIRCUITS.
4. REFER TO APPENDIX FOR
COMPATIBLE DEVICES.
5. 2-WIRE RELAY BASES ARE
NOT SUPPORTED.
6. SEE CONTROL PANEL APPLICATIONS 2
DRAWING FOR 4-WIRE RELAY
BASE CONFIGURATION
NOTES

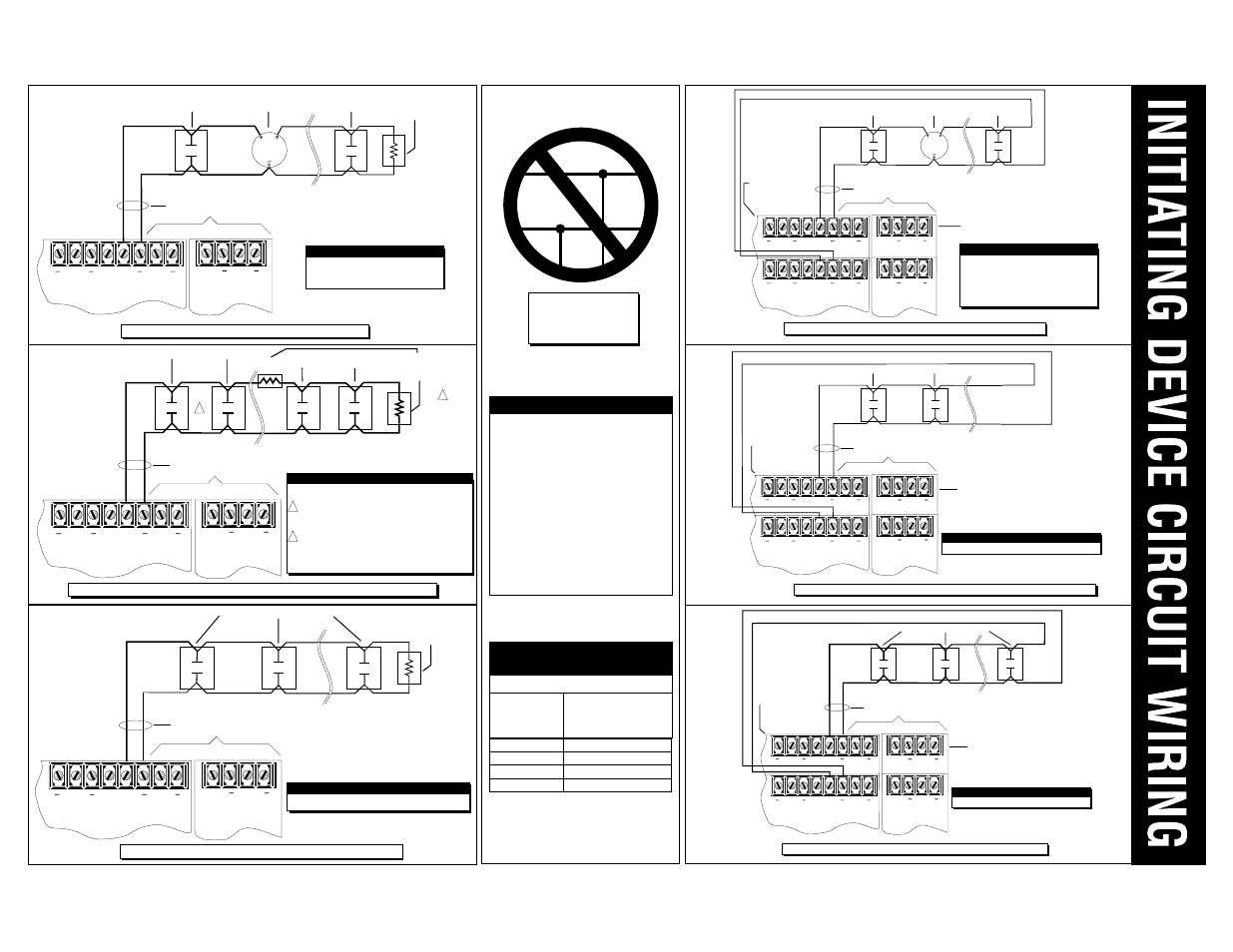

INITIATING DEVICE CIRCUIT
MAXIMUM WIRING RUNS
CIRCUIT WIRING
WIRE GAUGE
MAXIMUM WIRE RUN
FEET (METERS)
(TO EOL RESISTOR OR
CLASS A LOOP LENGTH)
12
14
16
18
10000 (3049)
9600 (2927)
6250 (1905)
3800 (1159)
[EALZIDC.CDR]
03/08/95
1.1K
INLINE
3 THE ULI LISTED SERIES RESISTOR (1.1K) AND ULI
LISTED EOL RESISTOR (3.6K) ARE PACKAGED
TOGETHER AS P/N 46071-0409. IN CANADA,
ORDER TWO EOL-P1 EOL PACKAGES.
2
3
3.6K EOL
