Edwards Signaling 2400 Series - Manual (Page 69)

TOP VIEW
FRONT VIEW
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
COVER
COVER
BATTERY
BATTERY
BATTERY
BATTERY
BATTERY
BATTERY
BATTERY
BATTERY
ALL KNOCKOUTS
FOR 3/4" CONDUIT
(1.9 cm)
FINISHED WALL
(SURFACE MOUNT)
FINISHED WALL
(FLUSH MOUNT)
14.5"
(36.8 cm)
15"
(38.1 cm)
13"
(33 cm)
2.75" (7 cm)
21.62"(54.9 cm)
22"(55.9 cm)
20.18"(51.3 cm)
1"(2.54 cm)
ROUTE 120 VAC
THROUGH THESE
KNOCKOUTS ONLY
TOP KNOCKOUTS FOR
POWER LIMITED WIRING
1 TO 3 TWO ZONE INITIATING DEVICE CIRCUIT MODULES (2400-2IDC) AND ANY COMBINATION OF 3 OPTION
MODULES: RELAY/CITY TIE (2400-RCT), ANNUNCIATOR DRIVER (2400-ADM), OR DIALER (2400-DL1) MODULES.
IF RCT WIRED FOR MUNICIPAL BOX, MOUNT IT FURTHEST FROM BASE PANEL & WIRE THRU SEPARATE KNOCKOUT.
MAINTAIN 1/4 IN (6mm) SPACING FROM OTHER WIRING.
TO DEDICATED
120 VAC,
15 AMP, 50/60 Hz
BRANCH
CIRCUIT

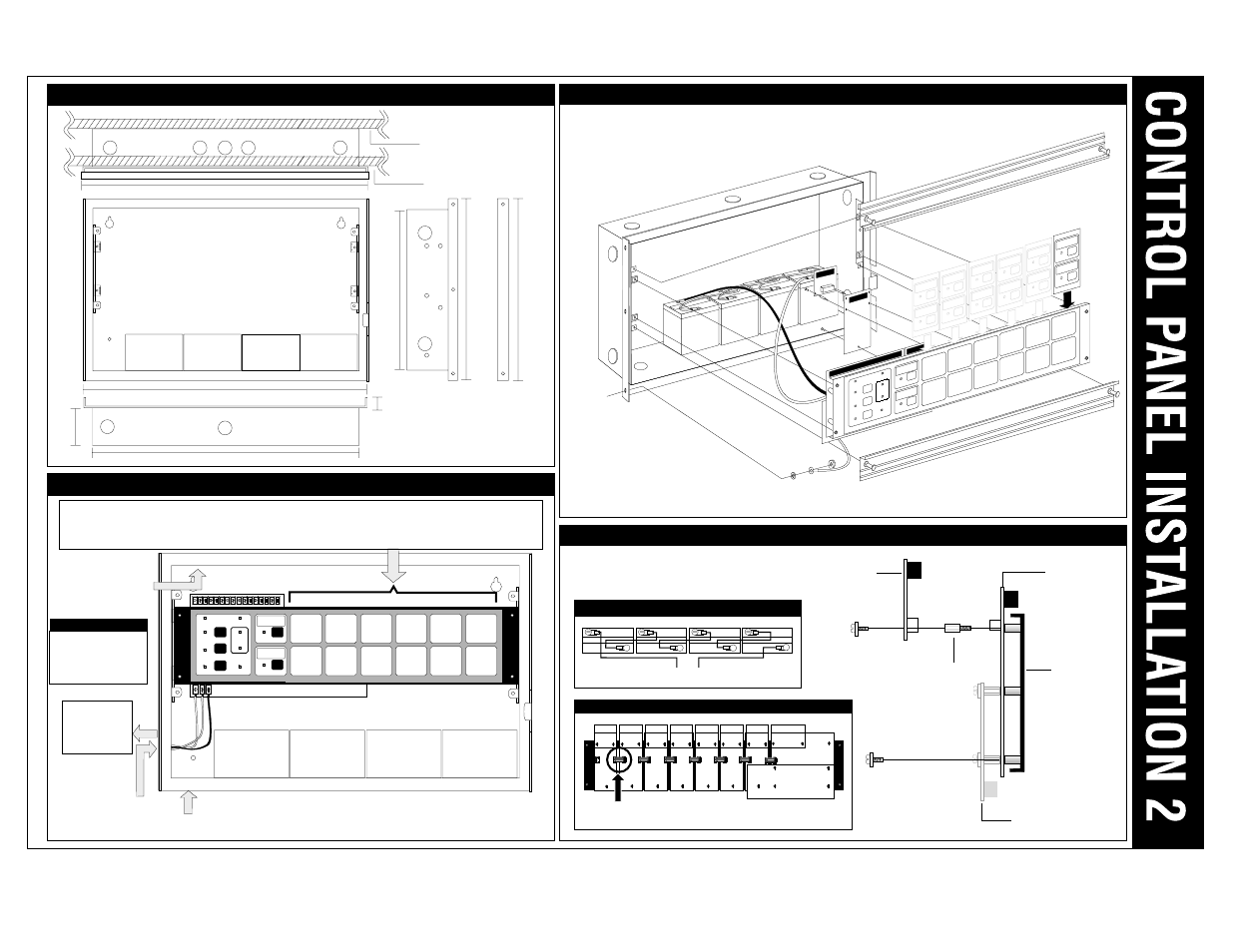

CONTROL PANEL DIMENSIONS CONTROL PANEL ASSEMBLY
CONTROL PANEL ASSEMBLY DETAIL
MODULE AND WIRING PLACEMENT
POWER
ZONE DISABLED
ALARM SILENCED
ALARM GROUND FAULT
SYSTEM TROUBLE
CIRCUIT 1
CIRCUIT 2
SIGNAL TROUBLE
TROUBLE SILENCE ENABLE DISABLE
ENABLE DISABLE
ALARM
SILENCE
RESET
POW ER
ZON E DISA BLED
ALAR M
SILE NCE D
ALAR M
GRO UND FAUL T
SYS TEM TRO UBL E
CIRC UIT 1
CIRC UIT 2
SIGN AL TRO UBL E TRO UBL E
SILE NCE
ALAR M
SILE NCE
RES ET
ENA BLE
DISA BLE
ENA BLE DISA BLE
OPTION
MODULE
CARD
INSE
RTS
TO
MOUNTING
STUD
ON DOOR
STANDOFF
EXPANDER OR
CONVERTER MODULE
(IF USED)
CONTROL PANEL
POWER SUPPLY
CONTROL PANEL
FACEPLATE
CONTROL PANEL
MAIN BOARD OR
OPTION MODULE
CONTROL PANEL
MAIN BOARD
RED STRIPES ON ALL RIBBON
CONNECTORS FACE DOWN
BACK VIEW
RIBBON CONNECTORS
[EALZCPI3.CDR]
05/23/95
CONTROL PANEL
POWER SUPPLY
BATTERY CONNECTION
TO CONTROL PANEL
POWER SUPPLY
+ + + +
TOP VIEW
BLACK RED
EXPANDER/
CONVER
TER
MODULE
MAINTAIN 1/4 IN (6 MM)
SPACING BETWEEN
POWER LIMITED AND
NON-POWER LIMITED
WIRING.
NOTE
