2-35

IM 04P01B01-61E

Configuring the Recorderr

Index

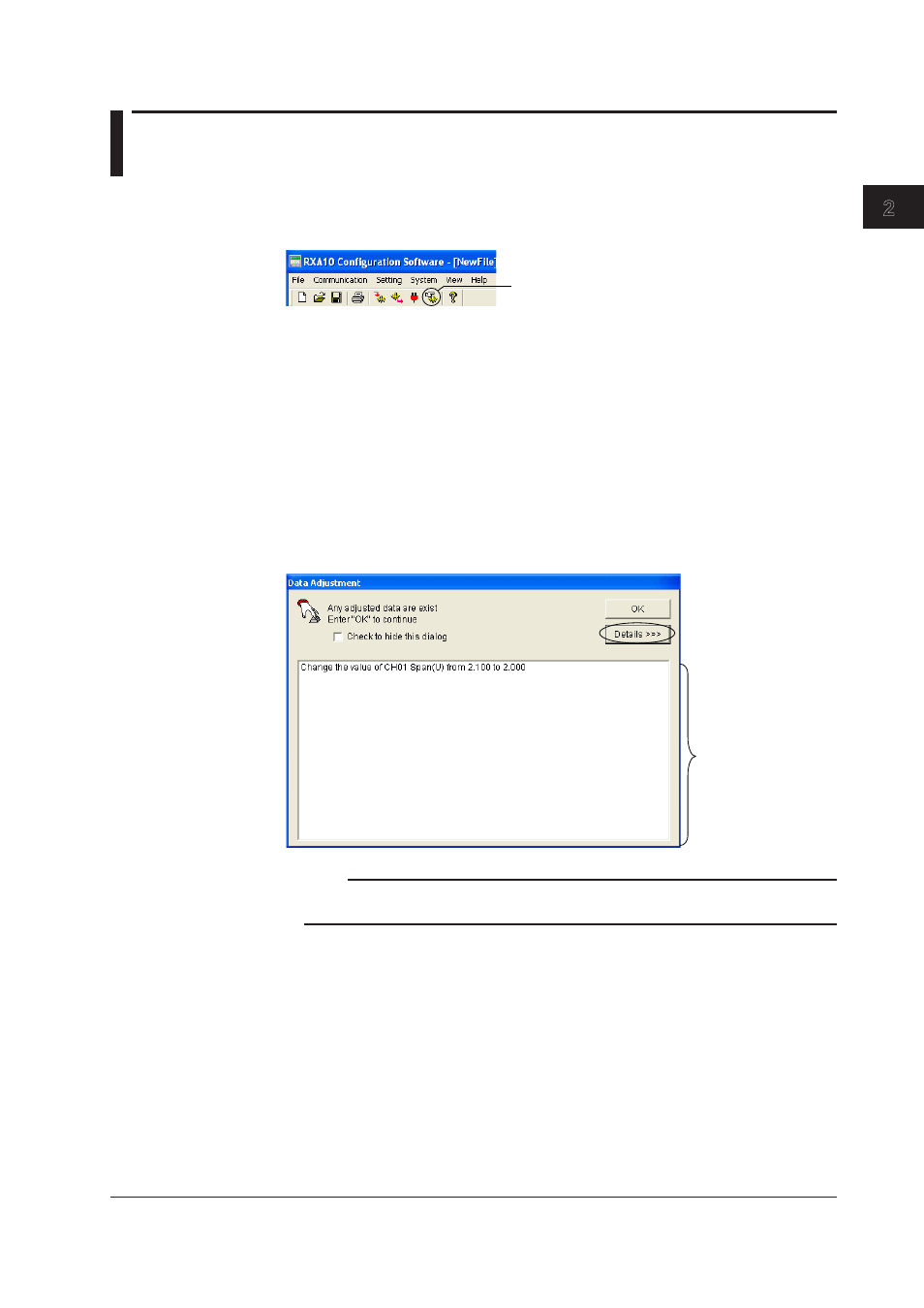

2.8 Checking the Consistency of the Settings

Checking the Consistency of the Settings

From the

System menu, choose Data Adjustment. You can also click the Data

Adjustment icon.

Data Adjustment icon

This function checks whether the settings are consistent with the system configuration
and setup conditions and automatically corrects the data if they are not.
The data are corrected in the following cases:
• When the values of the items of the Measure/Math tab are outside the selectable

range.

• When an invalid character string is used

Checking the Corrections

From the

View menu, click Data Adjustment Dialog so that a check mark appears

beside it. If the data is inconsistent when adjusting the data or when sending the data,
the

Data Adjustment dialog box opens. Click Details to display the details of the

correction.

Detailed message

Note

When sending setup data to the recorder, the data is adjusted, and consistent data is sent to
the recorder.
