2-20
IM 04P01B01-61E

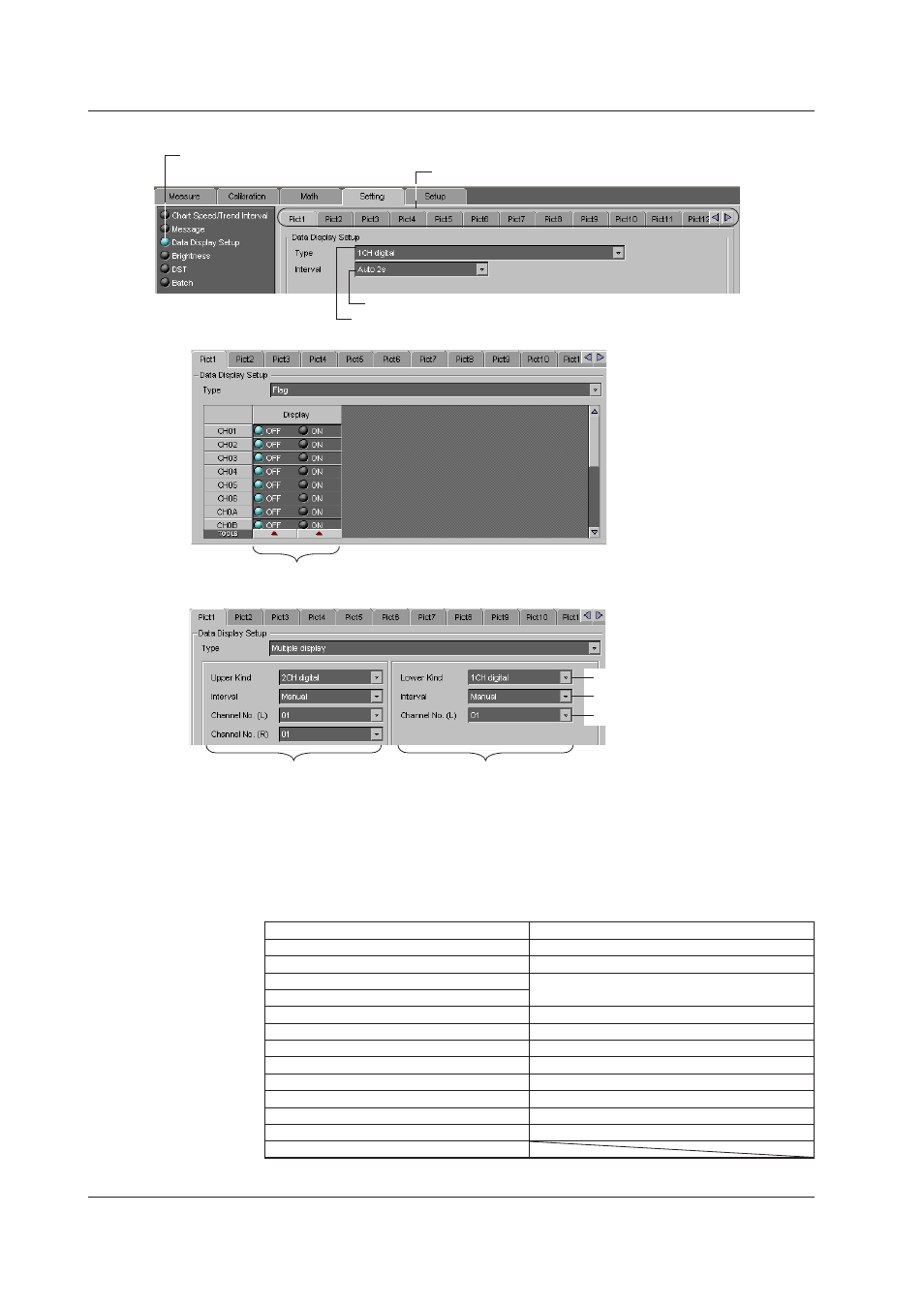

Data Display Setup
Click here (or choose [Setting] > [SET [Regular] Setting] > [Data Display Setup])
Screen tab
When display type is [Flag]
When display type is [Multiple display]
Displayed channel switching interval
Display type
Display of the top section Display of the bottom section
Display type
Displayed channel switching interval
Display channel
Selects the channels on which flag is to be displayed.
Pict1 Tab to Pict15 Tab
Corresponds to Screen 01 to Screen 15.
• Type
The following display types available. For details on the display types, see section
12.4, “Display Function Specifications” in the µR10000 Recorder User’s Manual (IM
04P01B01-01E) or µR20000 Recorder User’s Manual (IM 04P02B01-01E).
Display Type Display Type
Skip (the screen is not displayed) Time/Chart speed
1 CH digital DI/DO
2 CH digital Multiple display (Display in which different screens
can be assigned to the top and bottom sections) 4 CH digital
6 CH digital (6-dot models)
Tag_1 CH digital
12 CH digital (12/18/24-dot models, µR20000) Tag_2 CH digital
1 CH digital + 1 CH bargraph
Tag_1 CH digital + 1 CH bargraph
1 CH digital + 4 CH bargraph (pen models) Tag_1 CH digital + 4 CH bargraph (pen models)
2 CH digital + 2 CH bargraph Status
4 CH bargraph (pen models) System
6 CH bargraph (dot models, µR10000) Batch Name*
Flag Lights out (display with no contents)
Channel alarm status
* Selectable on recorders with firmware version 1.31 or later and header printout (/BT1 option).
2.6 Setting the Items in Setting Mode and the Data Display Method
