Setting Each Computation Channel

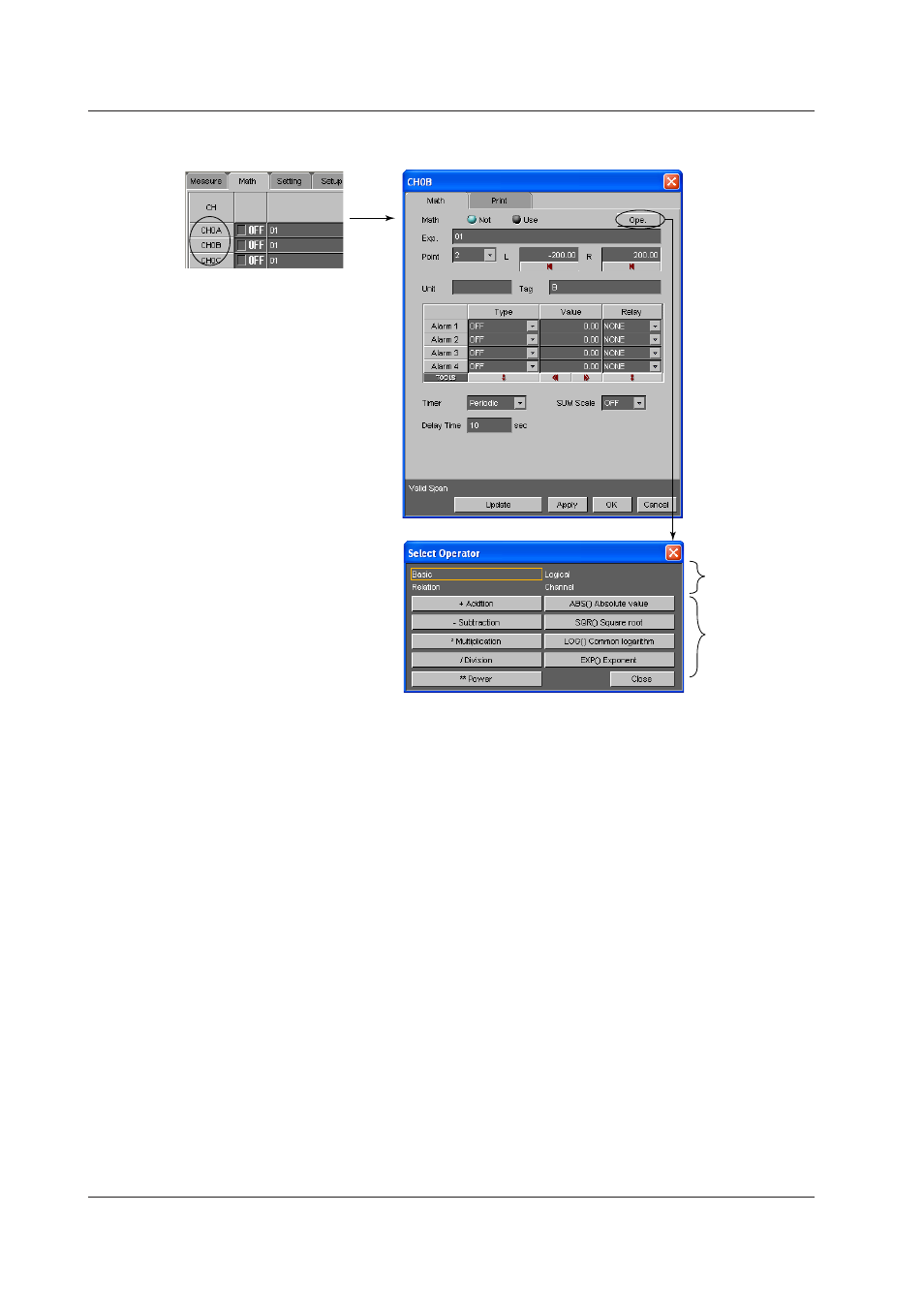

Double-click a channel number. The dialog box for that channel opens.
Buttons to select
the operator type
Operator buttons
Setting the Equation
Click the
Ope. button to open the Select Operator dialog box.
Select the operator type to switch the displayed operator buttons. Click a operator button
to enter the operator in
Exp.
The items in the math channel tab can be configured for each channel. The settings in
this dialog box are the same as those on the Math tab.
2.5 Setting the Computation Channels (/M1 Option)
