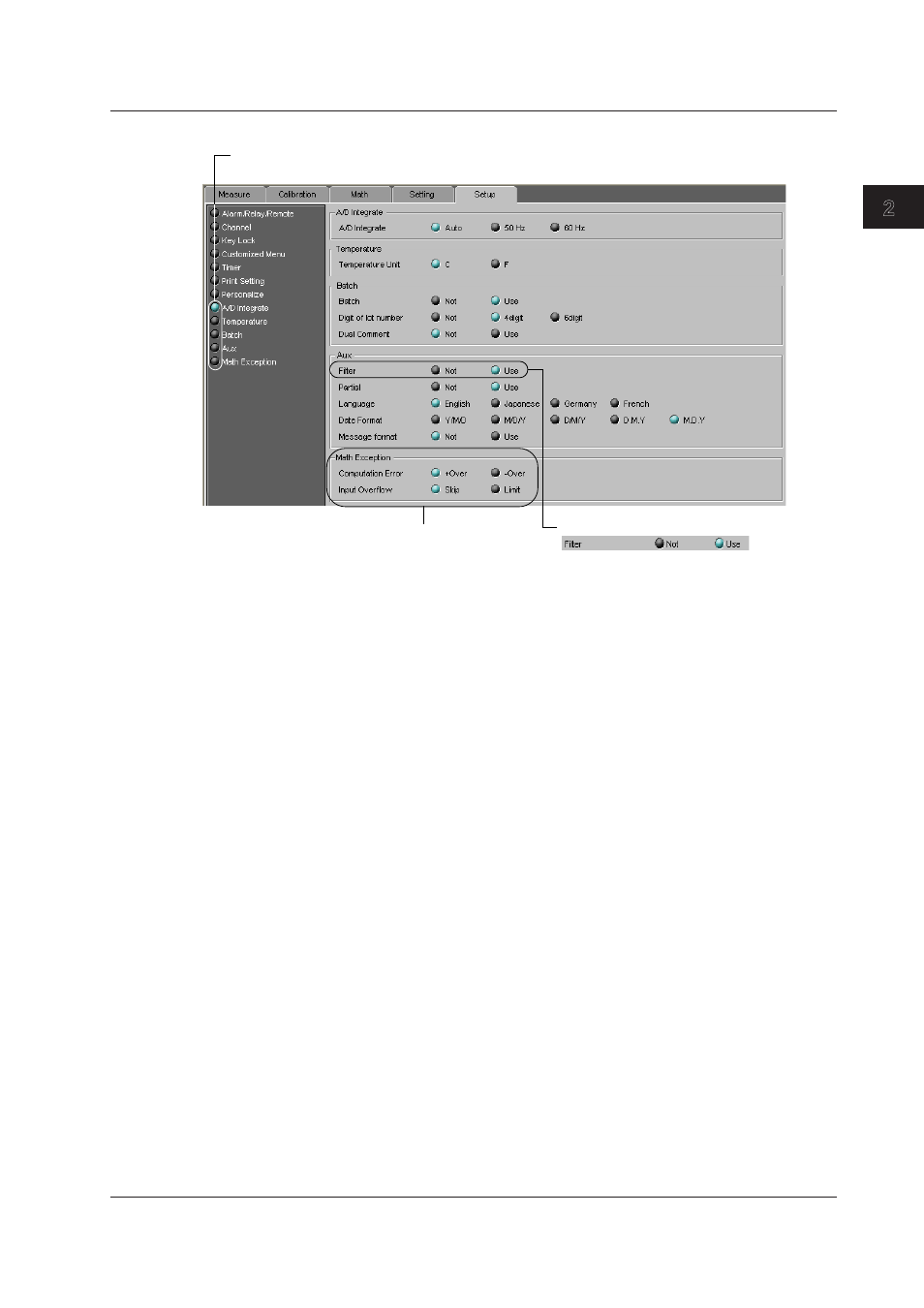

A/D Integrate, Temperature, Batch, Aux, and Math Exception
Click here (or choose [Setting] > [SET [Basic] Setting]
> [A/D Integrate]/[Temperature]/[Batch]/[Aux]/[Math Exception])
Displayed on models with the computation
function (/M1 option).
On the pen model, [Filter] is displayed.
A/D Integrate (Integration Time of the A/D Converter)
50 Hz: Sets the time to 20 ms.
60 Hz: Sets the time to 16.7 ms.
Auto: Set to the integration time synchronized to the power supply
frequency (20 ms or 16.7 ms).
100 ms (dot model): Sets the integration time to 100 ms. The scan interval is set to 2.5 s.
Temperature
Sets the unit of temperature measurements using thermocouples and RTDs.
C: Celsius
F: Fahrenheit
Batch (/BT1 Option)*
* Function available on recorders with firmware version 1.31 or later.
• Batch
Use: Enables start printout, end printout, and batch name.
• Digit of lot number
Sets the number of digits of the lot number.
• Dual Comment
Use: Enables start printout 2 and end printout 2.
Aux
• Moving Ave (Dot Model)
Select Use to enable the setting of the sampling count of the moving average for the
measurement channels.
• Filter (Pen Model)
Select Use to enable the setting of the filter constant for the measurement channels.
• Partial
Select Use to enable the setting of the boundary position and boundary value of the
partial expanded recording function for measurement channels and computation
channels.
