Page 30
2-17
IM 04P01B01-61E
Configuring the Recorderr
1
2
3
4
Index
2.6 Setting the Items in Setting Mode and the Data
Display Method
Click the
Setting tab. You can also select the item by choosing SET [Regular] Setting
from the
Setting menu.

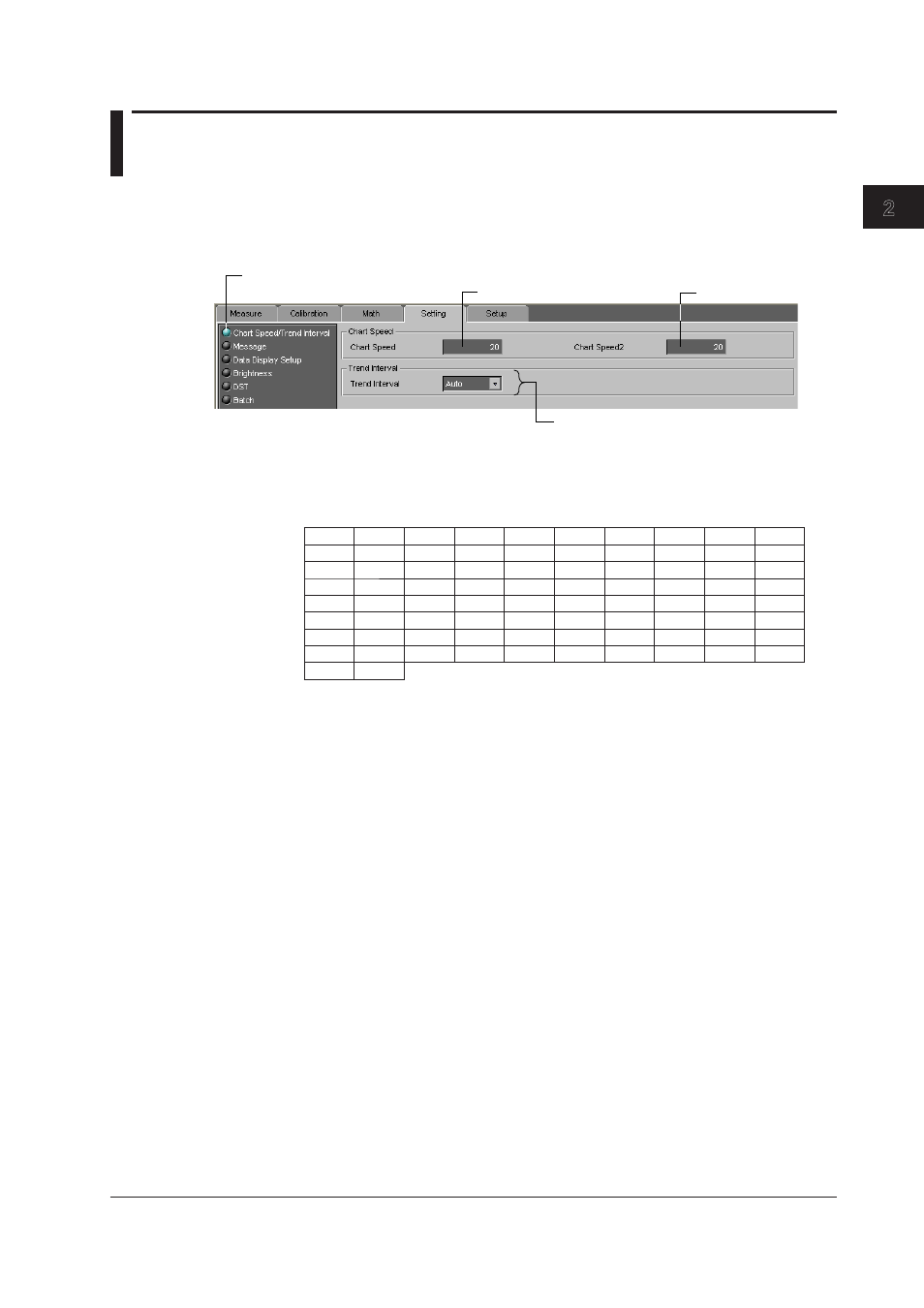

Chart Speed/Trend Interval
Click here (or choose [Setting] > [SET [Regular] Setting] > [Chart Speed]/[Trend Interval])
Chart speed
Secondary chart speed
Trend interval (dot model)
Chart Speed
• Pen Model
The chart speed can be selected from 82 settings shown below.
Chart speed on the pen model (unit: mm/h)
5
6
8
9
10
12
15
16
18
20
24
25
30
32
36
40
45
48
50
54
60
64
72
75
80
90
96
100
120
125
135
150
160
180
200
225
240
250
270
300
320
360
375
400
450
480
500
540
600
675
720
750
800
900
960
1000
1080
1200
1350
1440
1500
1600
1800
2000
2160
2250
2400
2700
2880
3000
3600
4000
4320
4500
4800
5400
6000
7200
8000
9000
10800 12000
• Dot Model
The chart speed can be set in the range of 1 to 1500 mm/h in 1 mm steps.
Trend Interval (Dot Model)
Auto: The trend recording interval is set according to the chart speed in the range of
10 s to 90 s so that the dots do not overlap.
Fix:
The trend recording interval is fixed to 10 s/6 dots. On models with the
computation function (/M1 option), the dot printing interval varies depending on
the number of measurement and computation channels to be trend recorded.
