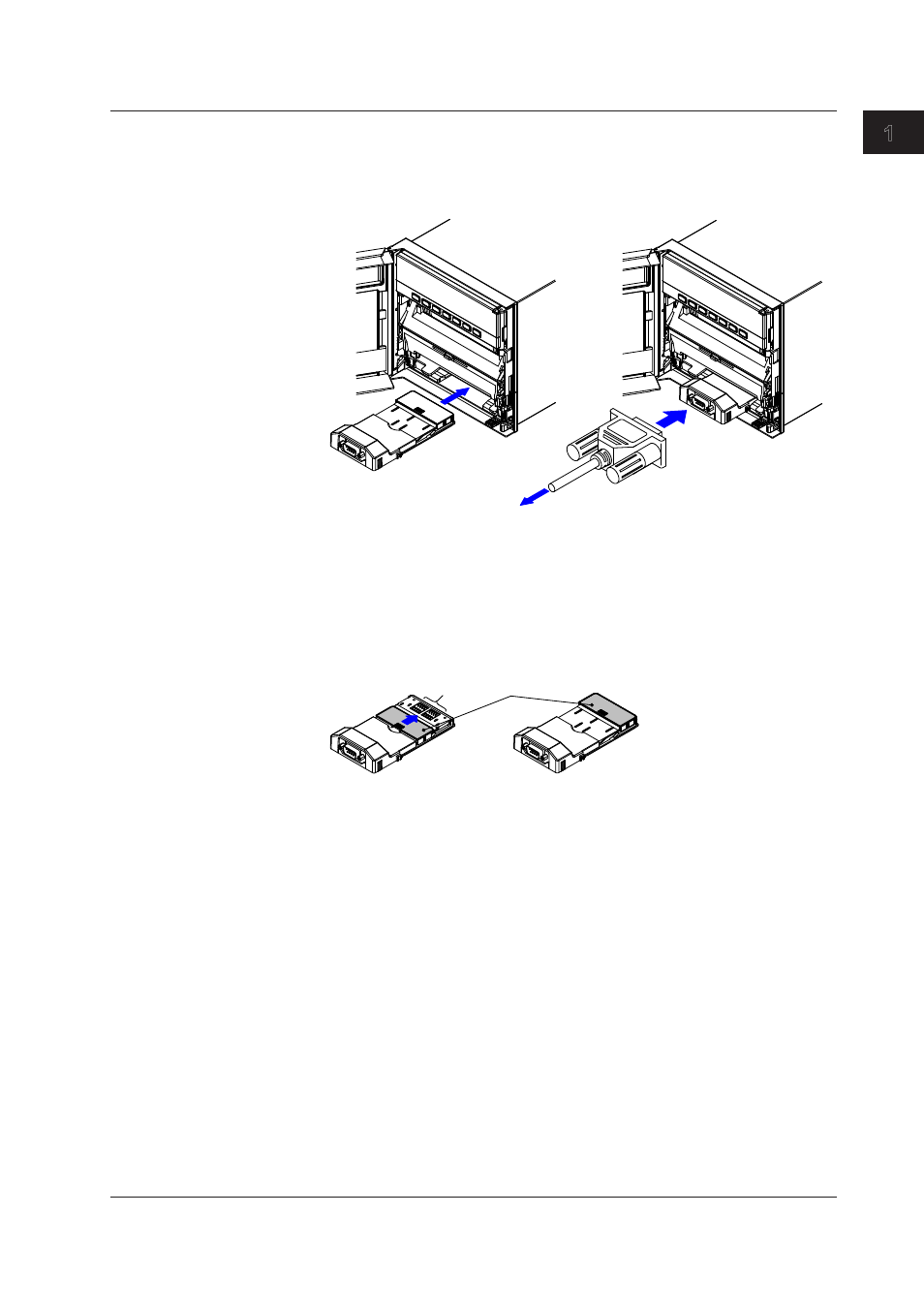

• Connecting the Recorder and the PC
1. Turn OFF the recorder and the PC.
2. Insert the interface unit in the opening under the chart cassette.
Insert it until it clicks in place.
Interface unit
Interface unit
RS-232 Cable To the PC
3. Connect the interface unit and the PC’s RS-232 connector with an RS-232 cable.
4. Turn ON the recorder first and then the PC.
• Disconnecting the Recorder from the PC
1. Turn OFF the recorder and the PC.
2. Pull out the interface unit.
3. Place the cover over the terminal section of the interface unit.
Cover
Terminal
section
1.4 Connecting the Recorder and the PC
