Chapter 3
Saving and Reading Screen Data
3.1 Saving Screen Data
Any screen configured on the builder screen can be saved in file form in an external
storage medium (CF card). Screen data is saved in two ways: specified screen and all
screen.
Note
After editing the [Create], or [EXTERNAL 1] through [EXTERNAL 25] screens, be sure to
update the screen. If you do not update the screen, the edited data will be lost. See “To Update
an Edited Screen” in section 1.13.
Saving the Specified Screen
The specified custom display screen setting file is saved.
Procedure

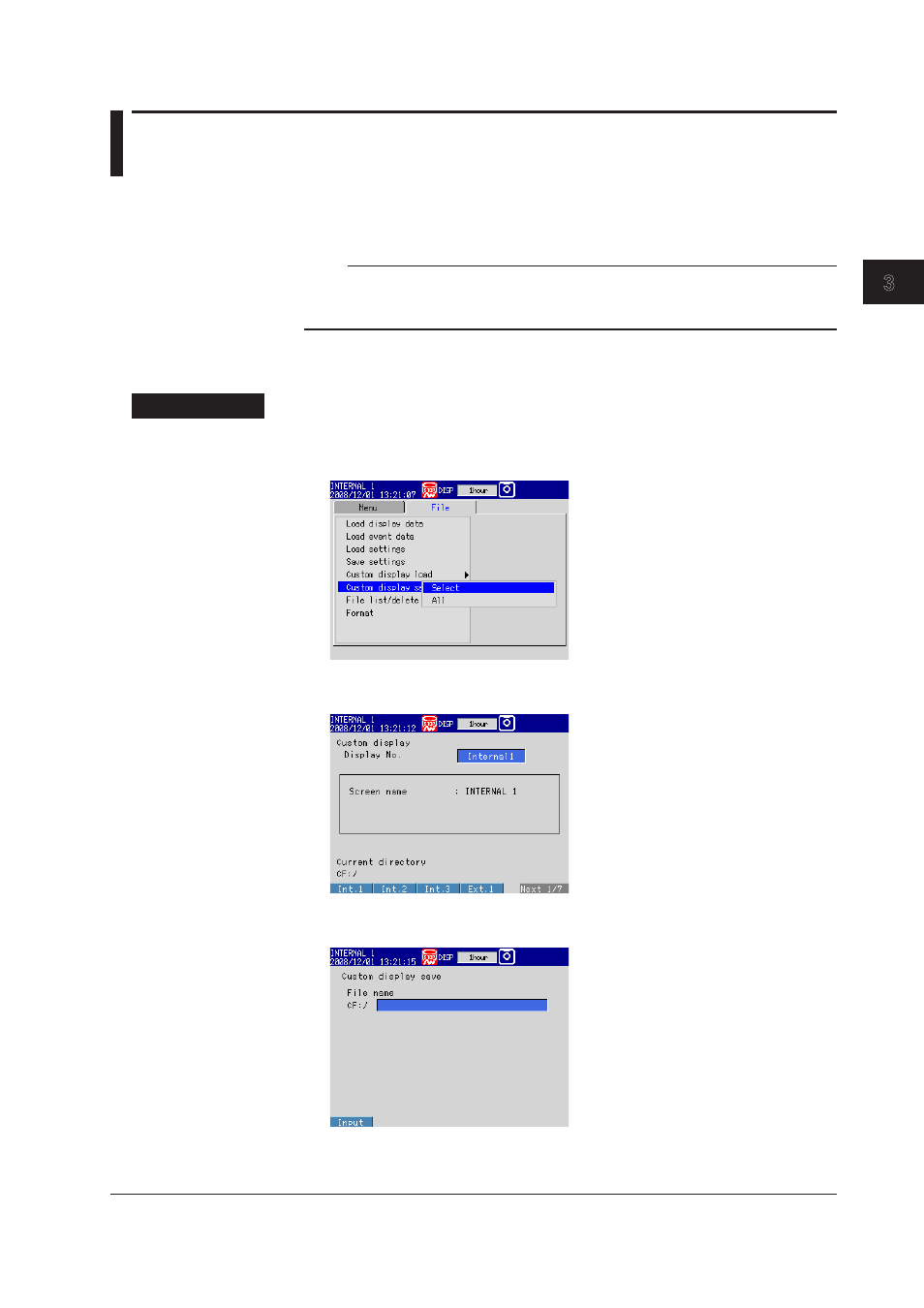

1.
Press
MENU.
2.
On the
[File] tab, select [Custom display save] > [Select].
3.
Select a screen number from the soft key menu.
4.
Press the
Input soft key and enter the file name.
5.
Press
DISP/ENTER.
The file is saved in the root directory.
