Wa t l o w S e r i e s 9 7 I n s t a l l a t i o n ■ 2 . 3
Removing the Series 97 Controller
1 Hold the controller with one hand while using the other hand to loosen the screws with
a #2 Phillips screwdriver until the end of the screw is flush or past the end of the can-
tilevers, see the figure below.
2. After the screws have been loosened, hold the controller with one hand while squeezing
the two screws together with the other hand. Then simply slide the mounting collar off
the controller.

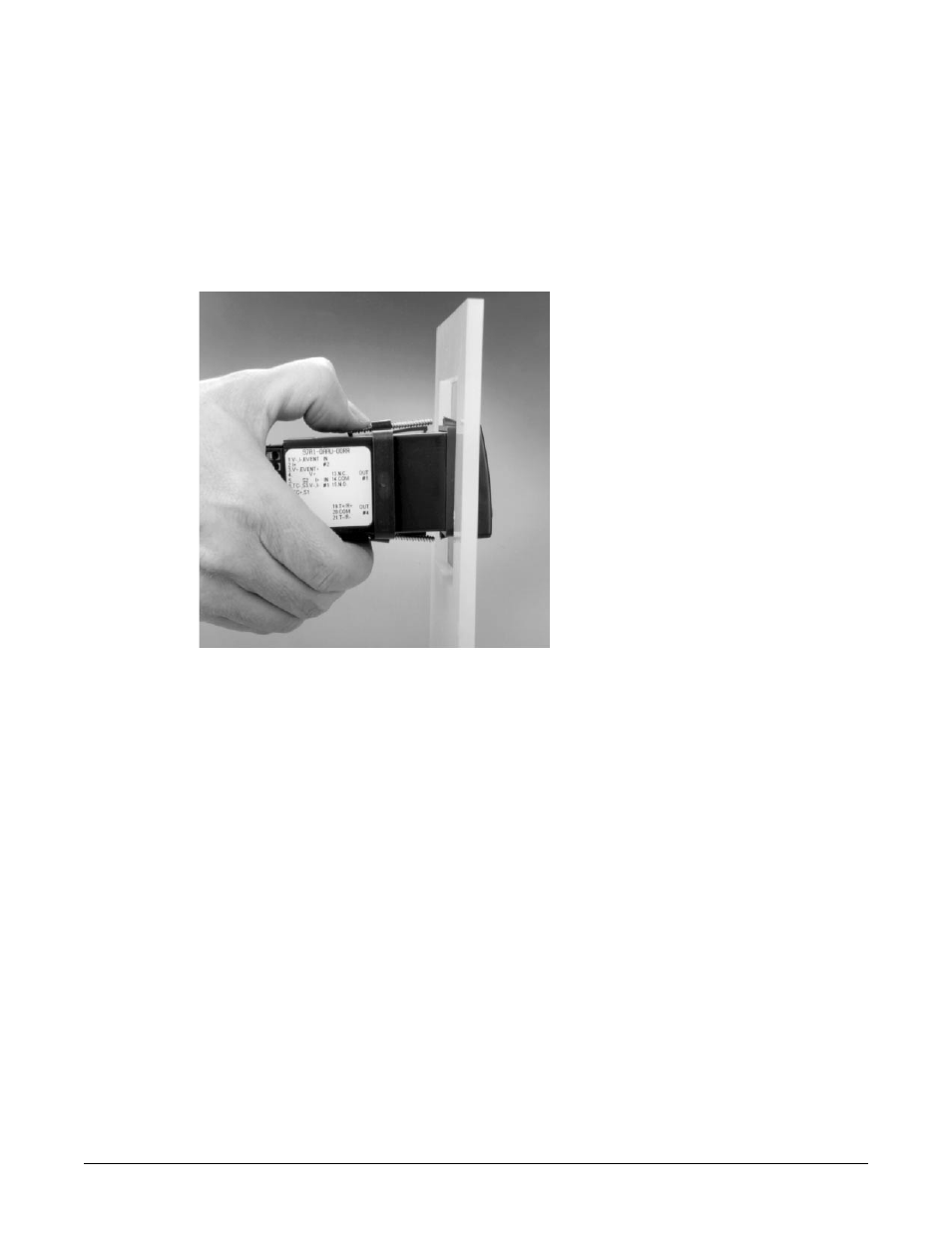

Figure 2.3 - Removing the controller.
