Navigating the Series 97
Choose a page (Operations, Setup or Factory) and press its key sequence. The page appears
in the lower display.

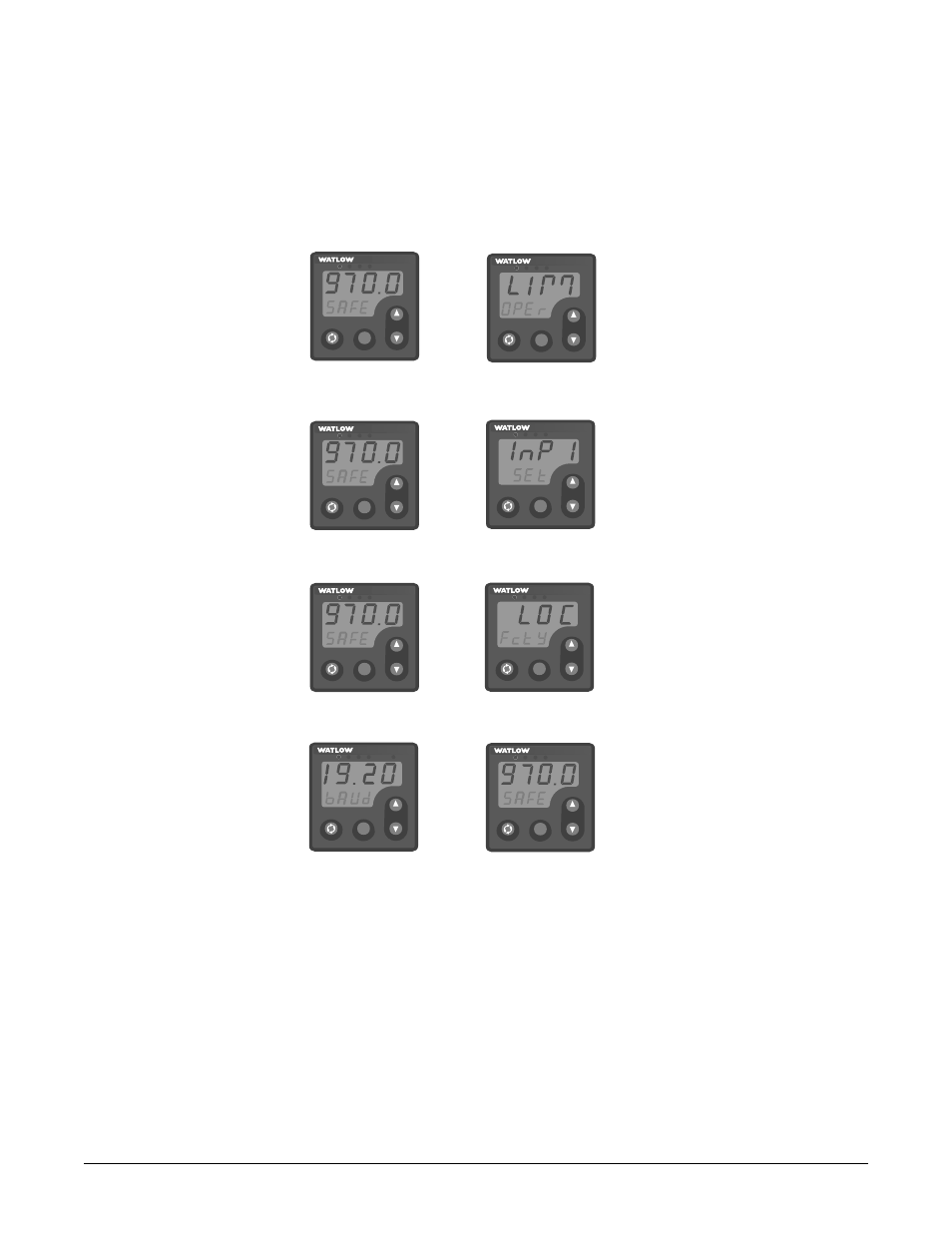

Figure 4.3 — Navigating the Series 97.
Press ¯ or ¿ to find a specific menu in a page. The menu appears in the upper display and
the page remains in the lower display.
Press ‰ to enter the list of paramenters in the menu displayed. The menu’s parameters
appear in the lower display and the values in the upper. To go backward through the
parameter list press ‰ and ¿ together.
Press ¯ or ¿ to select a value, either alpha or numeric.
Press ‰ to set the value and go to the next parameter.
2 3 4
LIMIT 97
1 2 3 4
LIMIT 97
1
2 3 4
LIMIT 97
1
2 3 4
LIMIT 97
1
2 3 4
LIMIT 97
1 2 3 4 %
LIMIT 97
1
• Operations Page: press ¿ and ¯ keys together for three seconds.
• Home Page: From anywhere, press the Reset Key.
RESET RESET
RESET
RESET
RESET RESET
• Factory Page: press ‰ and Reset keys together for six seconds.
• Setup Page: press ¿ and ¯ keys together for six seconds.
