Chapter Two
Installation

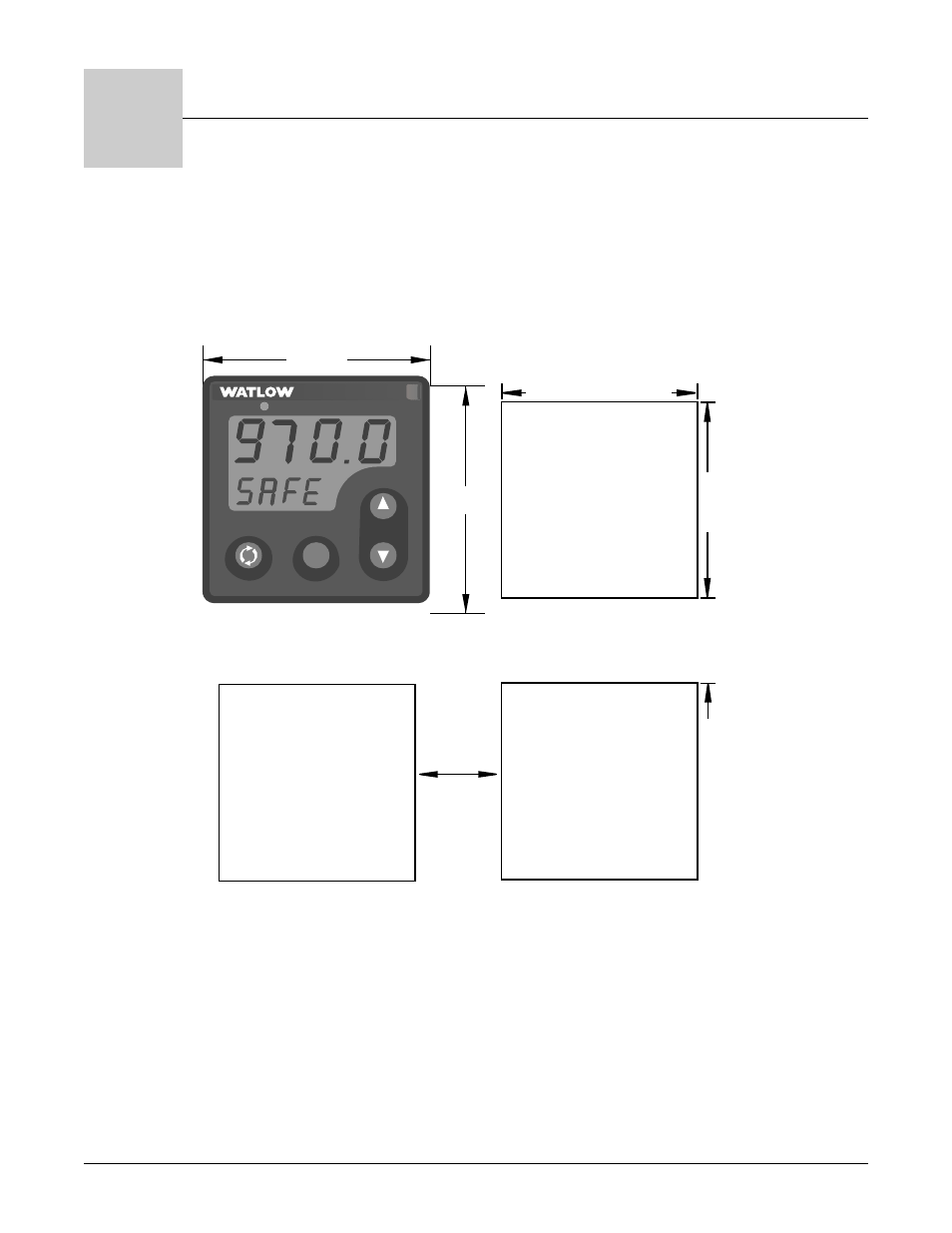

Figure 2.1 - Series 97 multiple panel cutout dimensions.
NOTE: Measurements between panel cutouts are the minimum recommended.
For rapid mounting, use Greenlee 1/16 DIN punch, die, draw stud, part number 60287.
Panel Cutout
Panel
Thickness
0.06" to 0.38"
(1.5 to 9.7 mm)
1.77" to 1.79"
(44.96mm to 45.47mm)
1.77" to 1.79"
(44.96mm
to 45.47mm)
0.540"
(13.72mm)
Minimum
0.310"
(7.874mm)
2.050"
2.050"
2 3 4
LIMIT 97
1
RESET
