Chapter Four
Navigation and Software
Keys and Displays
This chapter explains keys, displays and navigation skills. You’ll also find a complete
software map.
Increment/Decrement
Keys: Moves to next or
previous submenu if at
the top item of a menu, or
increments/decrements
current menu item.
Lower Display:
Indicates the
parameter whose
value appears in the
upper display.
Upper Display:
Indicates operating
levels - requested
current, line voltage or
power feedback levels
for the parameter in the
lower display.
Home Key:
Returns to the Display
Loop if in any other
page or menu, or in
the Display Loop,
moves between like
prompts of different
zones or phases.
Left/Right Keys: Moves
to the next or previous
item in a submenu.
***8
***8
Small LED:
Blinks with
communications
activity.
Alarm Indication LED:
Lit when an alarm is
active.
N a v i g a t i o n a n d S o f t w a r e , C h a p t e r 4 Wa t l o w P o w e r S e r i e s ■ 4 . 1
4

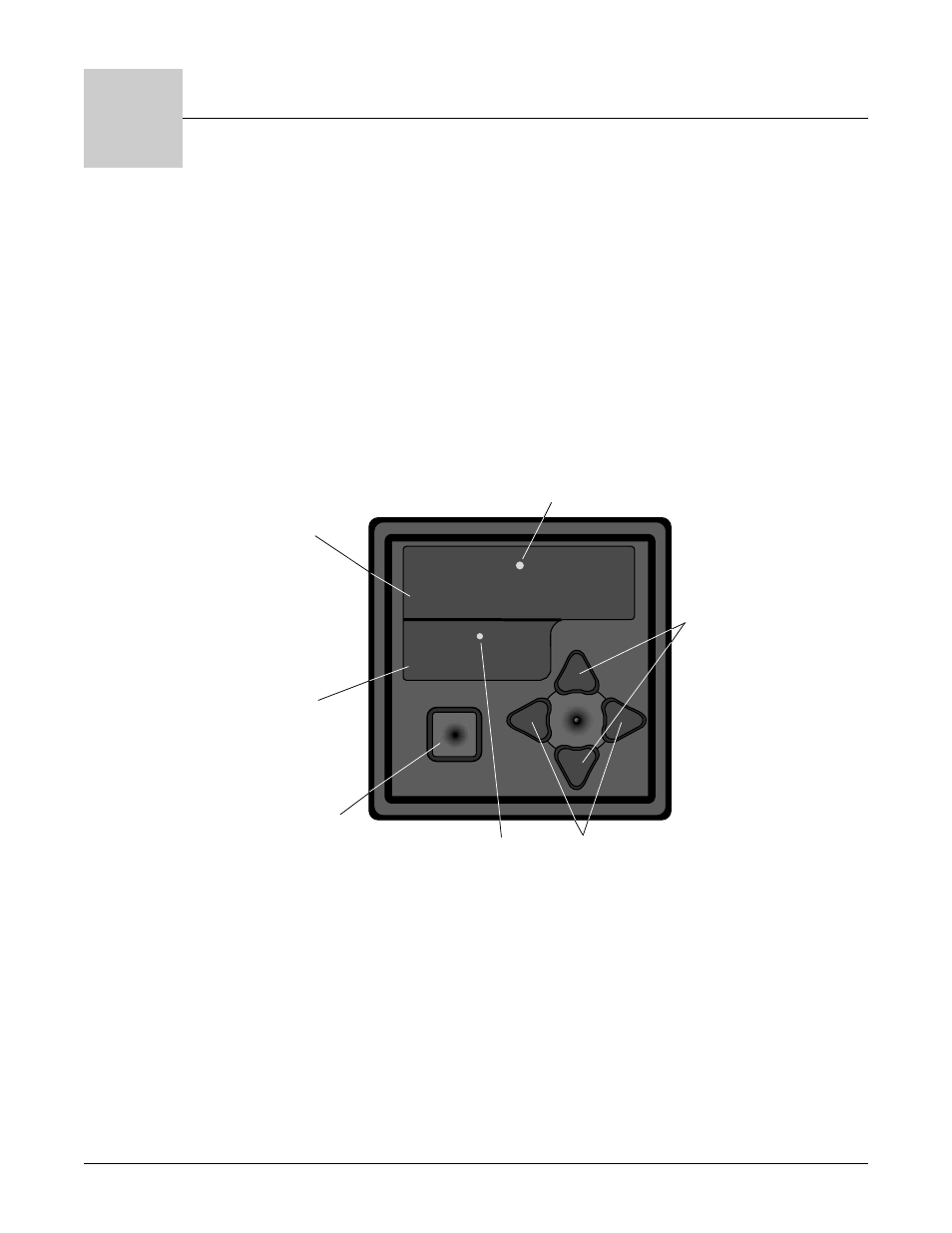

Figure 4.1 — Power Series keys and displays.
