Power series dimensions, Mounting the power series controller, Dimensions – Watlow Power Series Rev H User Manual

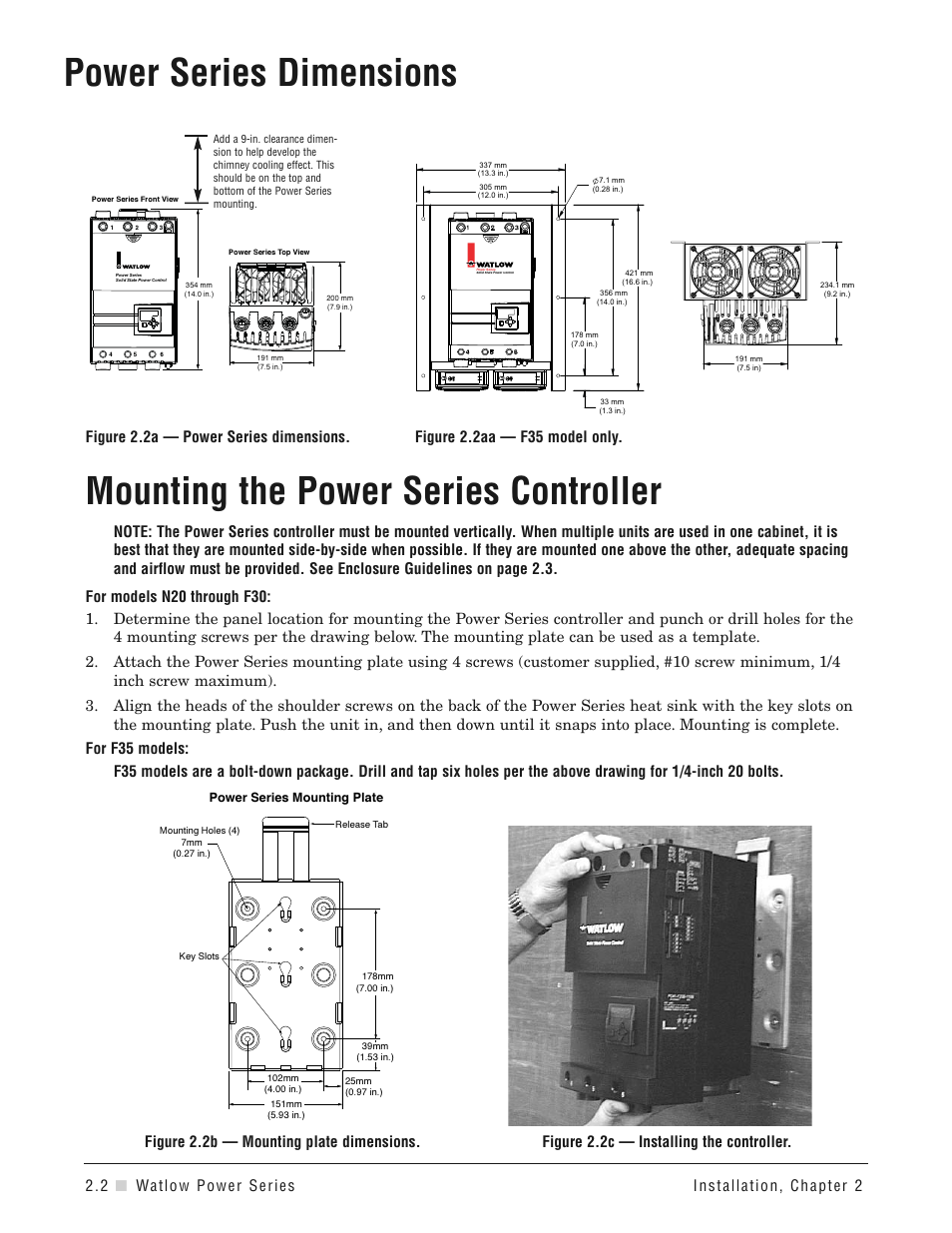

Page 8: Mounting the power series, 2 i watlow power series installation, chapter 2, Figure 2.2a — power series dimensions, Figure 2.2aa — f35 model only
