• Remote Serial Bus system.
• Pneumatics and I/O are not in close proximity
with one another.
• M23, 12-Pin output extension to remote valve
island.
• Separate output and input clusters using a
bus extender cable.
• Separate output and input power using a
power extension module.
• I/O density per module = 8.

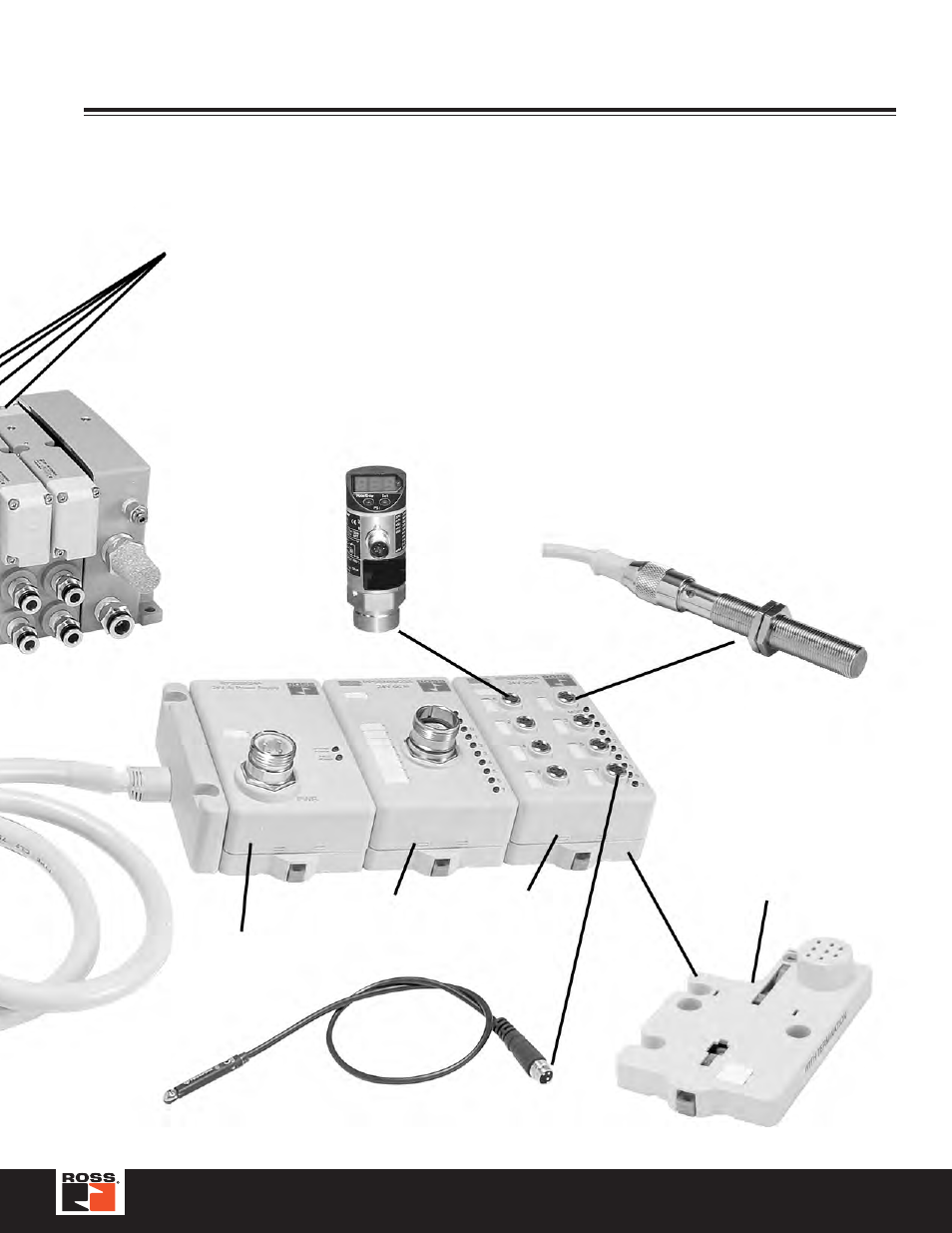

Terminating
Base Module
M23
Input
Module
Power
Extension
Module
M8
Input
Module
Series W66 18mm & 26mm
ISO 15407-2 Valves on one
island - no transition plate
needed.
I/O - Compartmentalized Remote Configuration
