Page 14
14
© 2012,
ROSS
CONTROLS
®
.
All Rights Reserved.
for ISO Bases (5599-2)

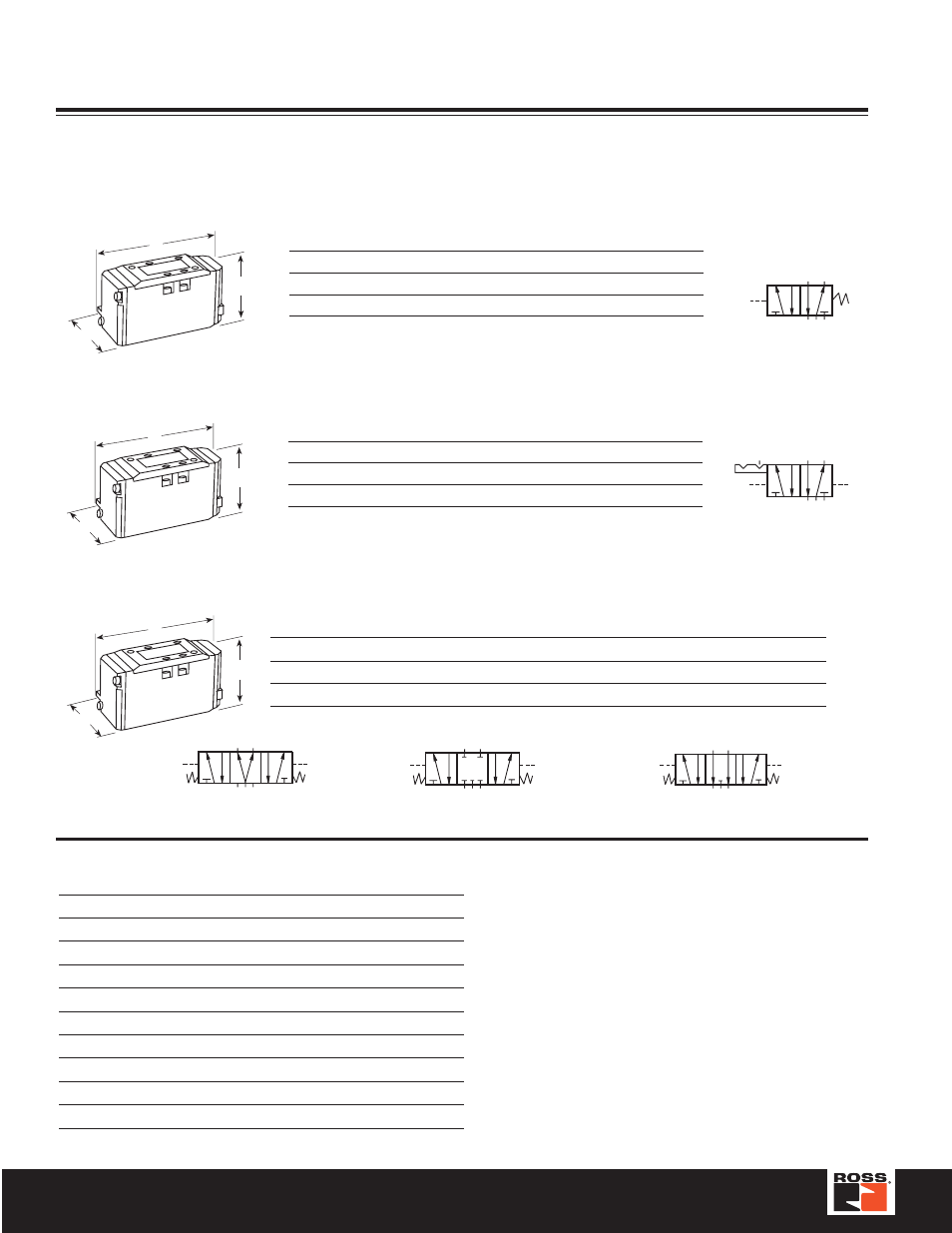

5/2 Valves – Single Remote Pressure Control Spring Return
ISO
Avg.
Port
Valve Model
Weight
Size
C
V
Size
Number*
lb. (kg)
1
1.0
1/4-3/8
W6556A2417
0.8 (0.4)
2
2.3 3/8-1/2
W6556A3417
1.5 (0.7)
3
3.4 1/2-3/4 W6556A4417 3.0 (1.4)
*Valve dimensions shown below.
5/3 Valves – Double Remote Pressure Control
ISO
Avg.
Port
Valve Model Number*
Weight
Size
C
V
Size
Power Center
Closed Center
Open Center
lb. (kg)
1
1.0 1/4-3/8
W6557A2900 W6557A2411 W6557A2417 1.0 (0.5)
2
2.3
3/8-1/2
W6557A3901 W6557A3411 W6557A3417 1.5 (0.7)
3
3.4 1/2-3/4 W6557A4900 W6557A4411 W6557A4417 3.0 (1.4)
*Valve dimensions shown below.
ISO
Avg.
Port
Valve Model
Weight
Size
C
V
Size
Number*
lb. (kg)
1
1.0
1/4-3/8
W6556A2411
0.8 (0.4)
2
2.3
3/8-1/2
W6556A3411
1.5 (0.7)
3
3.4 1/2-3/4 W6556A4411 3.0 (1.4)
*Valve dimensions shown below.
5/2 Valves – Double Remote Pressure Momentary Control
CLOSED CENTER
OPEN CENTER
STANDARD SPECIFICATIONS: For valves on this page.
Ambient Temperature: 40° to 175°F (4° to 80°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air. 5 micron recommended.
Inlet Pressure: Standard- Size 1: 2-10 bar, Size 2:
1-10 bar.
Size 3: 1-10 bar. All sizes available up to 16 bar.
Pilot Supply: Internal/external supply selected
automatically. Required pressure at least 30 PSIG (2 bar)
Materials of Construction:
End Caps & Valve Body: Die Cast Aluminum
Fasteners: Zinc Plated Steel
Spool & Sleeve: Stainless Steel
1
2
3
4
5
14
12
1
2
3
4
5
12
14
1
2
3
4
5
12
14
1
2
3
4
5
12
14
OVERALL DIMENSIONS inches (mm)
Type
Size A
B
C
Sgl. Sol.
1
6.3 (161)
1.6 (41)
2.7 (69)
Sgl. Sol.
2
7.3 (186)
2.1 (52)
2.8 (71)
Sgl. Sol.
3
8.5 (216)
2.6 (67)
3.1 (78)
Dbl. Sol.
1
8.8 (224)
1.6 (41)
2.7 (69)
Dbl. Sol.
2
9.0 (228)
2.1 (52)
2.8 (71)
Dbl. Sol.
3
10.0 (254)
2.6 (67)
3.1 (79)
Rem. Pressure 1
4.8 (121)
1.6 (41)
2.7 (68)
Rem. Pressure 2
5.8 (148)
2.1 (52)
2.8 (71)
Rem. Pressure 3
7.0 (178)
2.6 (67)
3.1 (79)
A
B
C
A
B
C
A
B
C
1
2
3
4
5
12
14
POWER CENTER
Series W65 Spool and Sleeve Valves
