Specifications
Series W66, Size 00: 0.55 Cv (18mm)
Series W66, Size 0: 1.1 Cv (26mm)
Materials of Construction
• End Caps: PBT
• Fasteners: Zinc Plated Steel
• Valve Body: Aluminum
• Coils: Thermoset Plastic
Operating Pressure
• Vacuum to 145 PSIG
• Minimum Operating Pressure
– 2-Position: 25 PSI
– 3-Position: 35 PSI
Ports
• NPT and BSPP “G” Standard
Manifolds
• Terminal Block Wiring (Series W66,
Size 0 Only)
• Collective Wiring
– 25-Pin, D-Sub
– 19-Pin Round
– 16 Point Terminal Strip
– M23, 12-Pin
– Serial Bus Field Bus
Certification / Approval
• Approved to be CE Marked
• CSA / C-US Approved
• NEMA 4
• IP65
• Manifold and Subbase Ports
Meet ISO 1179 Specifications
Solenoids
• Surge Suppression (Standard)
• Low Watt – 1.0, 24VDC, 2.0VA,
120VAC
• Indicator Lights

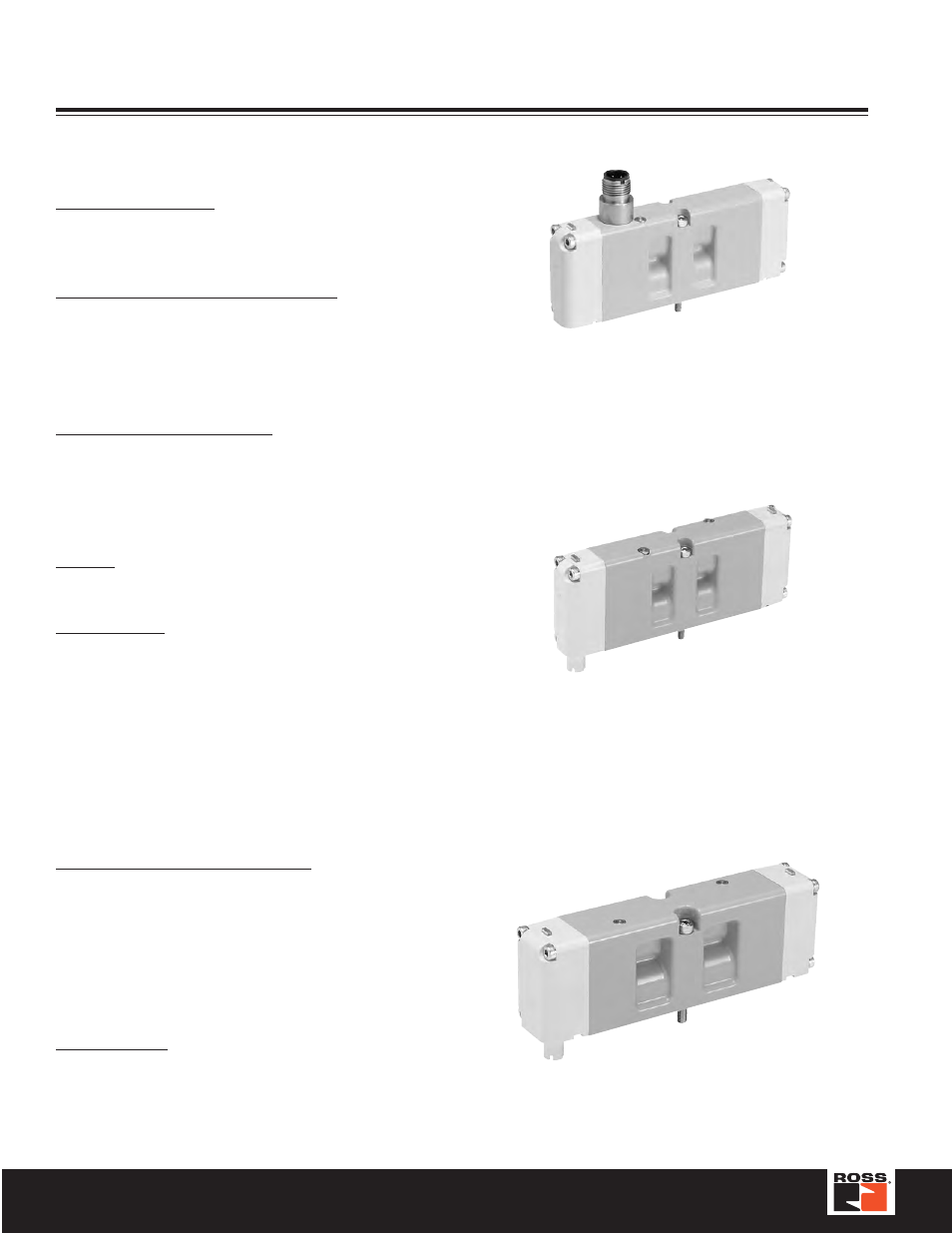

Series W66 (15407-2)
Size 00 (18mm), Double Solenoid (5/2)
Series W66 (15407-2)
Size 0 (26mm), Double Solenoid (5/3)
Open Center
Series W66 (15407-1)
Size 00 (18mm), Single Solenoid (5/2)
15407-1 & 2
ISO Size 00 & 0 Valves
