25 www.rosscontrols.com
• Remote Air Pilot Operated for hard-to-reach
pressure control.
• Unregulated Pilot Pressure to valve for
consistent valve shifting regardless of
pressure adjustment.

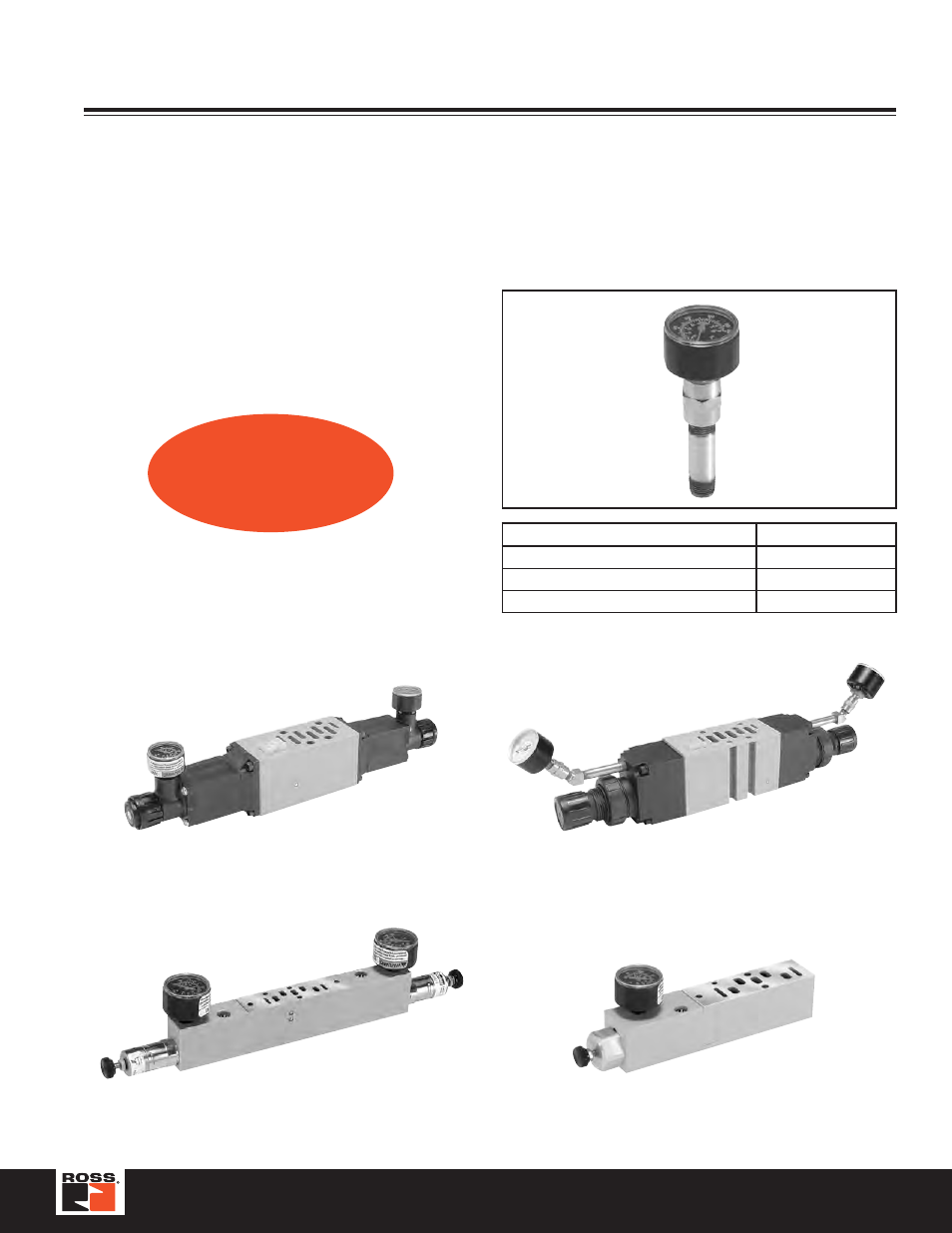

Size 1
(Dual Interposed Regulator Shown)
Size 2
(Dual Interposed Regulator Shown)
Size 0 - 26mm
(Single Interposed Regulator Shown)
Size 00 - 18mm
(Dual Interposed Regulator Shown)
Interposed Regulators Features
Included with all Size 00 Regulators. Both kits are
required on all Size 0 & 00 Regulators when the
Regulator is on the last Station on the Right (14) End.
Gauge Adapter Kit
Description Part Number
Gauge Kit RPS5651160P
1/8" Female to 1/8" Female Coupling R207P-2*
1/8" Male to 1/8" Male Long Nipple RVS215PNL-2-15*
* Included in Gauge Kit RPS5651160P
Accessories
Interposed Regulators
WARNING
Double interposed regulators will reverse
output ports, the 12 solenoid will pressurize
the 4 port, the 14 solenoid will pressurize
the 2 port which may cause unexpected,
potentially dangerous cylinder movement
at valve pressurization.
