22 © 2012, ROSS CONTROLS ® . All Rights Reserved.

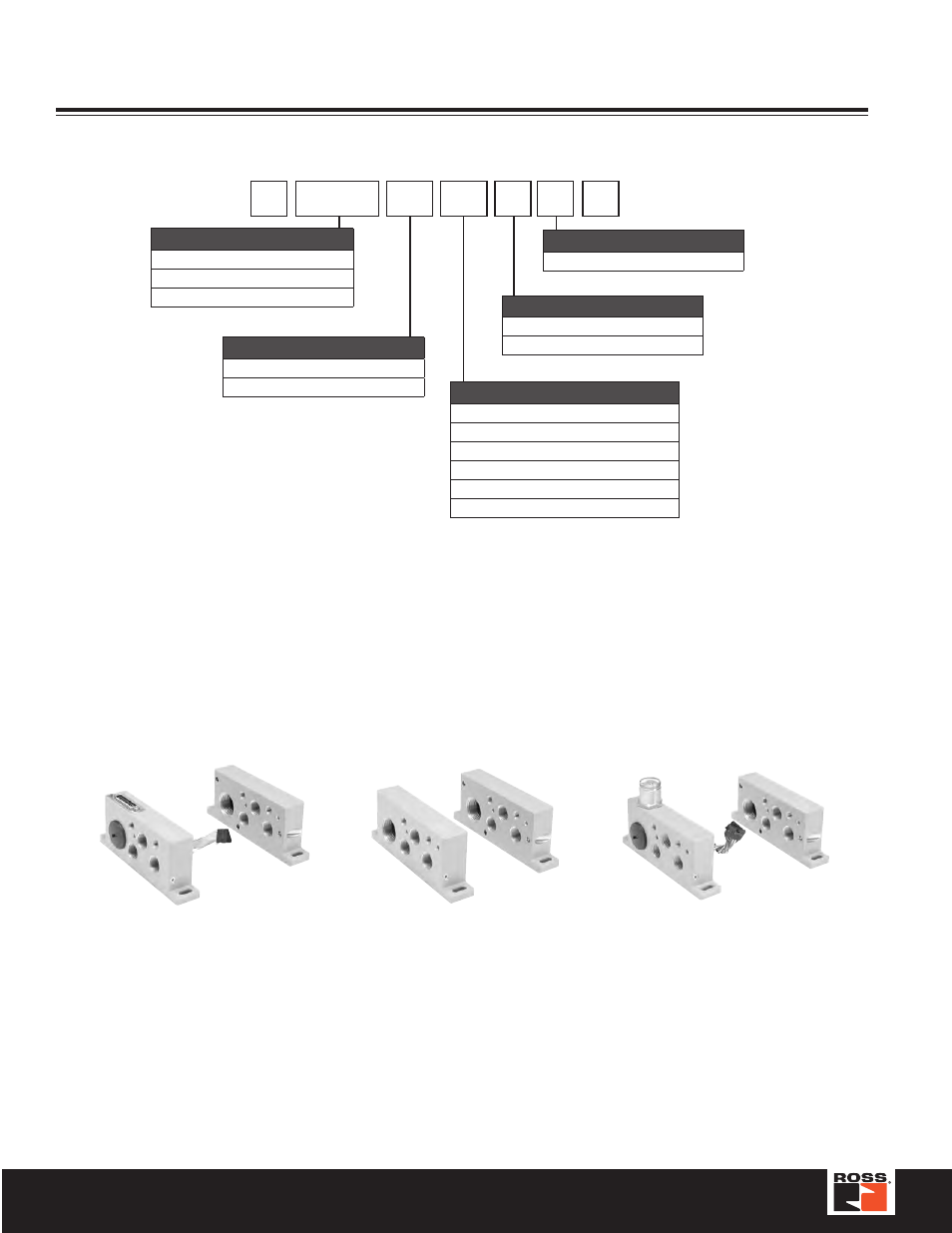

Size 1 19-Pin Round
End Plates
Size 1 25-Pin D-Sub
End Plates
Size 1 Non-Collective Wiring
End Plates
Size 1, 2, & 3 End Plate Kits
Options
01* Non-Collective Wiring
L1 †¤ ** Collective Wiring End Plate, Top Ported
L2 †#+ 25-Pin, D-Sub
L3 †+ 19-Pin, Round, Brad Harrison
L4 †+ 12-Pin, M23
L6 ^+ Serial Bus
* Only Available with End Plate Kit Type “31”.
** For PS41 and PS42 Kits Only.
† Only Available with End Plate Kit Type “20”.
¤ Must Order Collective Wiring Module Separately.
# 120VAC is Not CSA Rated.
^ Valve Driver Module and 24 Output Cable Installed. Must
order communication modules separately.
+ Must Order Bases with Circuit Boards.
R PS40 20 L2 0 C P
End Plate Kit Type
End Plate, Collective Wiring 20
End Plate, Non-Collective Wiring 31
Thread Type
0 NPT
1 BSPP “G”
Engineering Level
C Current
Basic Series
ISO 5599, Size 1 PS40
ISO 5599, Size 2 PS41
ISO 5599, Size 3 PS42
Series W65
