48 © 2012, ROSS CONTROLS ® . All Rights Reserved.
Serial Bus DeviceNet™ and Auxiliary Power Cables
Part Number Network
Recommended Rockwell
Automation Network Cable
Recommended Rockwell
Automation Auxiliary Power
Cables
RPSSCDM12A
RPSSCDM18PA
DeviceNet™
KwikLink Flat Media system standard
drop cable: 1485K-PzF5-R5
Thin Round system standard drop
cable: 1485R-PzN5-M5
Thick Round system standard drop
cable: 1485C-PzN5-M5
Standard Cordset (single-ended):
889N-F5AFC-y
Standard Patchcord (double-
ended): 889N-F4AFNC-x
RPSSCCNA ControlNet™

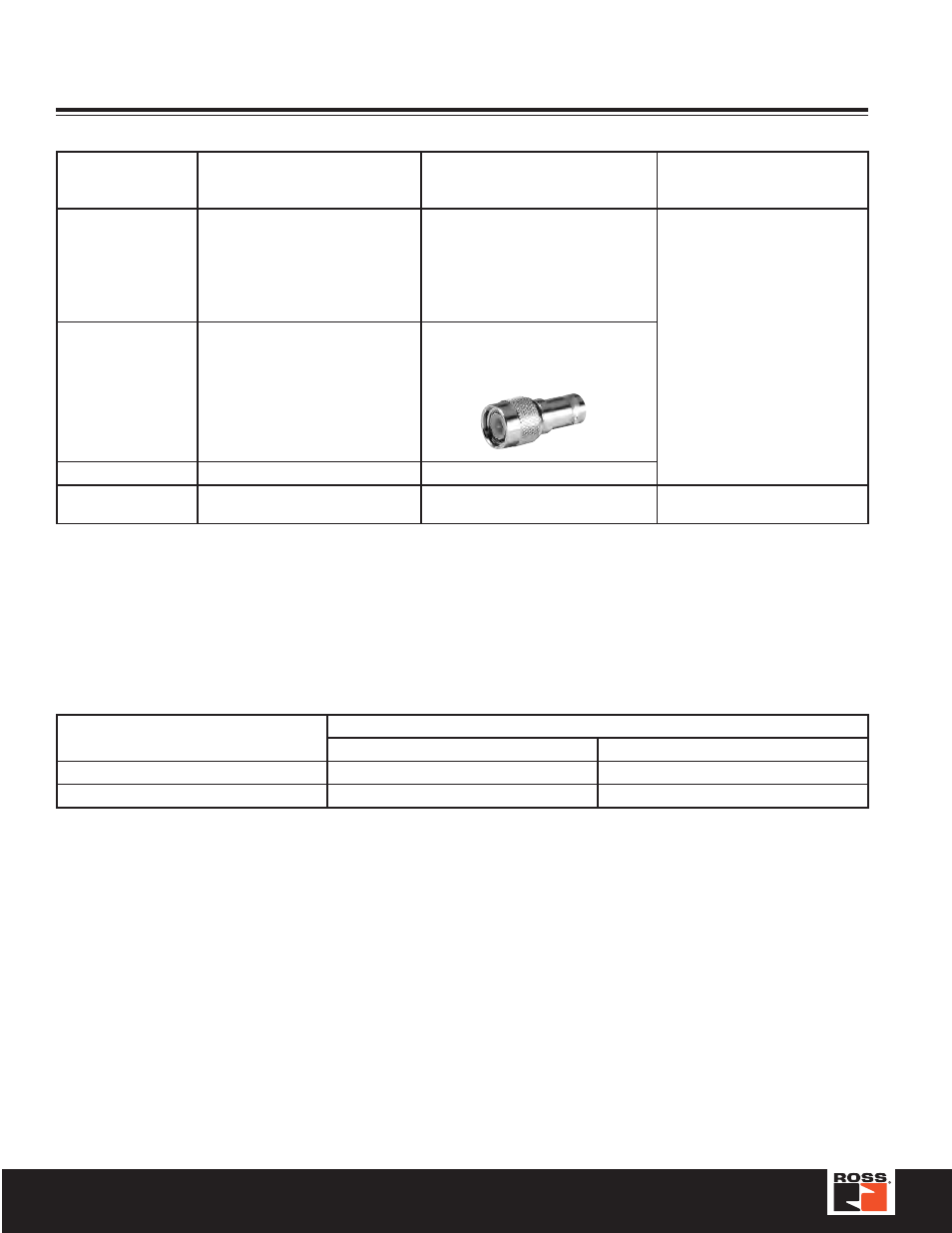

BNC to TNC Connector is required
when using BNC Cordsets.
See www.amphenolrf.com
RPSSCENA EtherNet/IP™ —
RPSSCPBA PROFIBUS DP —
Standard Cordset (single-ended):
889N-F5AFC-y
x = length in meters (1, 2, 3, and 6 standard)
y = length in feet (6, 12, and 20 standard)
z = length in feet (1, 2, 3, 4, 5, and 6 standard)
For more cables and cordsets, please refer to www.connector.com
Serial Bus Valve Driver Module Harness Assemblies
Valve
Part Number
1 to 24 Outputs 25 to 32 Outputs
Size 0 and Size 00 Valve RPS5624P RPS5632P
Size 1, 2, & 3 Valve RPS4024P RPS4032P
Serial Bus System
