15 www.rosscontrols.com

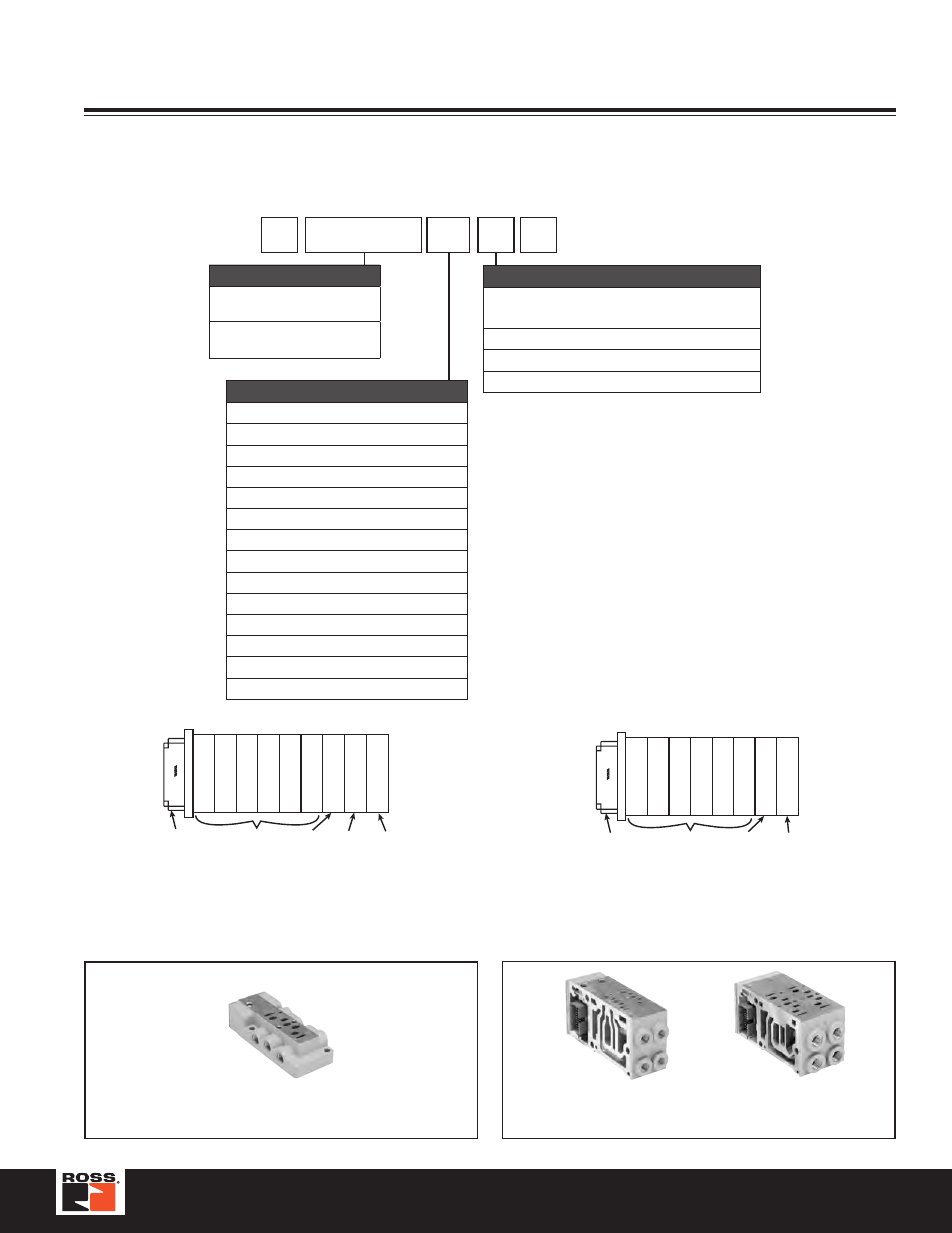

Size 00 & 0 Manifold / Subbase Kits
Manifold and Subbase Kit Ordering Code
Subbase Kits Manifold Kits
Series W66, Size 0
Subbase
Series W66, Size 00
Series 2-Station
Manifold
Series W66, Size 0
Series 2-Station
Manifold
Double Address
Manifold
(Option M)
Single
Address
Manifold
(Option J)
Double
Address
Manifold
(Option M)
Single
Address
Manifold
with 32 Output
Expansion
(Option N)
2 4
1 3
DS DS
6 8
5 7
DS DS
10 12
9 11
DS DS
14 16
13 15
DS DS
18 20
17 19
DS DS
22 24
21 23
DS DS
25 26
SS SS
28 30
27 29
DS DS
31 32
SS SS
Valve Driver
Module
(RPSSV32A)
Double Address
Manifold
(Option M)
Double
Address
Manifold
(Option M)
Double
Address
Manifold
with 32 Output
Expansion
(Option P)
2 4
1 3
DS DS
6 8
5 7
DS DS
10 12
9 11
DS DS
14 16
13 15
DS DS
18 20
17 19
DS DS
22 24
21 23
DS DS
26 28
25 27
DS DS
30 32
29 31
DS DS
Valve Driver
Module
(RPSSV32A)
Option “N” Option “P”
* Manifolds Only.
† Available with Series W66, Size 0 (26mm).
§ When using an Series W66, Size 0 or Series W66, Size 00 manifold base
with the “N” Enclosure / Lead
Length option:
• Outputs 1 – 24 can be single or double address bases. Use a base
with “J” or “M” Enclosure / Lead Length option.
• Outputs 25 – 26 are a single address base. Use a base with “N”
Enclosure / Lead Length option (this is a single address board with
a ribbon connection from the valve driver module, RPSSV32A).
• Outputs 27 – 32 can be single or double. Use a base with “J” or “M”
Enclosure / Lead Length option.
‡ When using an Series W66, Size 0 or Series W66, Size 00 manifold base
with the “P” Enclosure / Lead
Length option:
• Outputs 1 – 24 can be single or double address bases. Use a base
with “J” or “M” Enclosure / Lead Length option.
• Outputs 25 – 28 are a double address base. Use a base with “P”
Enclosure / Lead Length option (this is a double address board with
a ribbon connection from the valve driver module, RPSSV32A).
• Outputs 29 – 32 can be single or double. Use a base with “J” or “M”
Enclosure / Lead Length option.
Enclosures / Lead Length
C † Terminal Strip
J* Circuit Board, Single Address
M* Circuit Board, Double Address
N* § Single Address Circuit Board with 32 Output Expansion
P* ‡ Double Address Circuit Board with 32 Output Expansion
R PS5511 13 C P
Basic Series
ISO 15407-2 18mm,
Series W66, Size 00
PS5611
ISO 15407-2 26mm,
Series W66, Size 0
PS5511
Mounting Style / Port Size
Series W66, Size 00
Manifold with 1/8 NPT End Ports 51
Manifold with 1/8 BSPP End Port 52
Manifold with 1/8 NPT Bottom / End Port 61
Manifold with 1/8 BSPP Bottom / End Port 62
Series W66, Size 0
Subbase with 1/4 NPT Side Ports 13
Subbase with 1/4 BSPP Side Ports 14
Subbase with 1/4 NPT Bottom / Side Port 23
Subbase with 1/4 BSPP Bottom / Side Port 24
Manifold with 1/4 NPT End Port 53
Manifold with 1/4 BSPP End Port 54
Manifold with 1/4 NPT Bottom / End Port 63
Manifold with 1/4 BSPP Bottom / End Port 64
Plug-in, Series W66 (15407-2)
