21 www.rosscontrols.com
Series W66, Size 00 & 0
25-Pin
End Plates
Series W66, Size 00 & 0
19-Pin
End Plates
Series W66, Size 00 & 0
Non-Collective Wiring
End Plates
Series W66, Size 00 & 0
16-Point Terminal Strip
End Plates

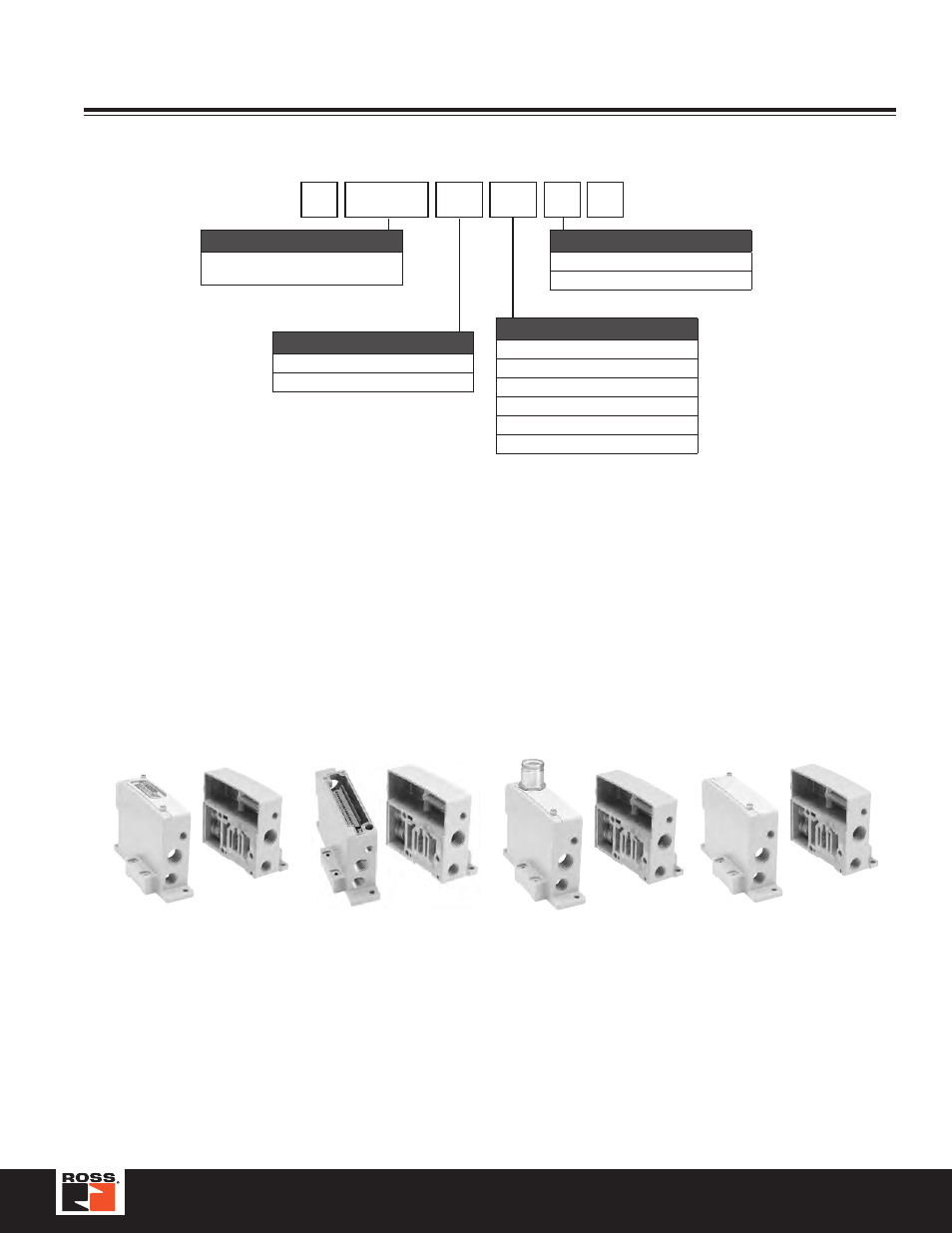

Size 00 & 0 End Plate Kits
Thread Type
0 NPT
1 BSPP “G”
Options
01* Non-Collective Wiring
L2 †§# 25-Pin, D-Sub
L3 †# 19-Pin, Round, Brad Harrison
L4 †# 12-Pin, M23
L5 †# 16-Point Terminal Strip
L6 †‡# Serial Bus
* Only Available with End Plate Kit Type “31” &
Series W66, Size 0 Valves.
† Only Available with End Plate Kit Type “20”.
§ 120VAC is not CSA rated.
‡ Valve Driver Module and 24 Output Cable
Installed.
Must order communication modules separately.
# Must Order Bases with Circuit Boards.
R PS56 20 01 0 P
Basic Series
ISO 15407, Size 00 (18mm) &
Size 0 (26mm)
PS56
End Plate Kit Type
End Plate, Collective Wiring 20
End Plate, Non-Collective Wiring 31
Series W66
