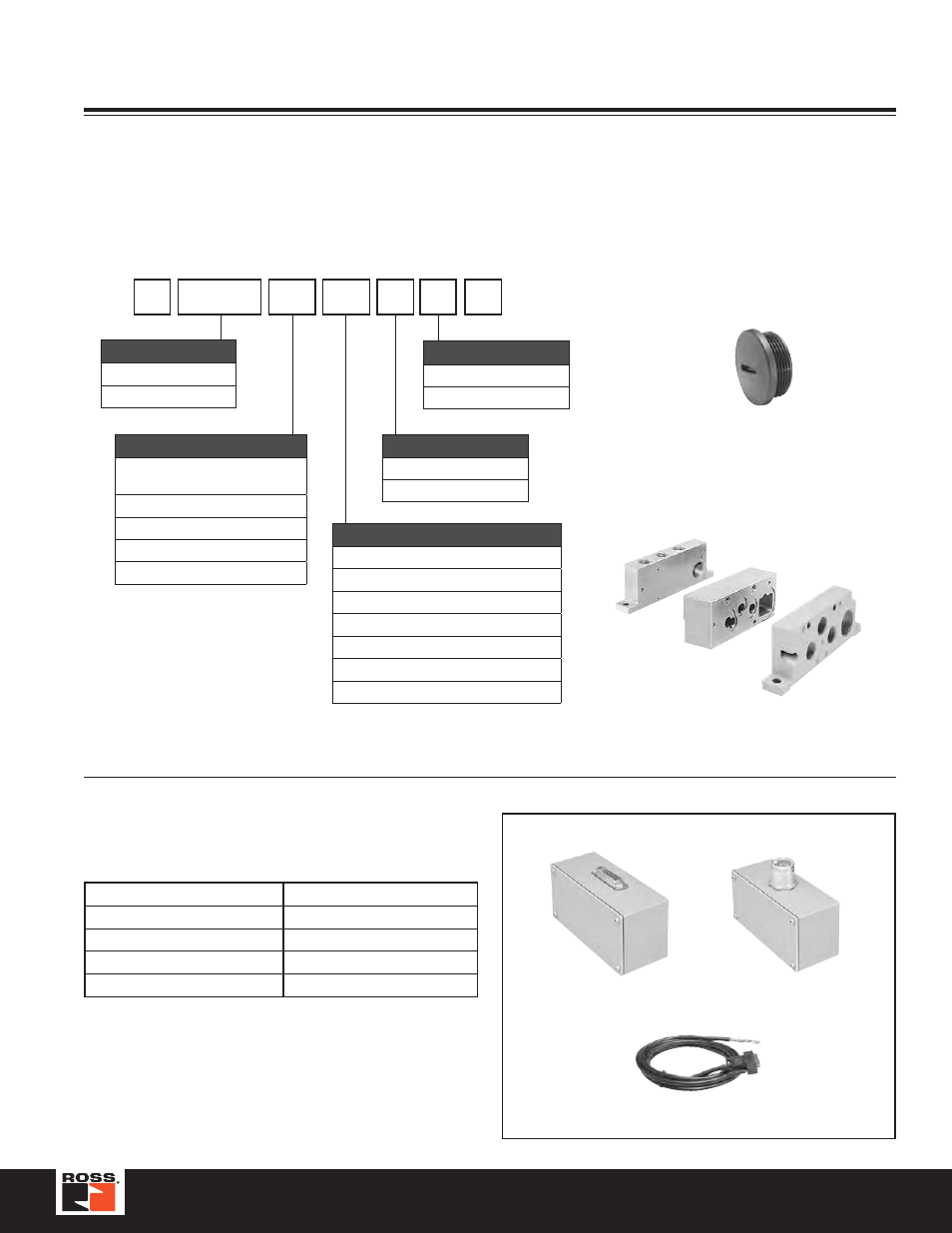

Accessories
Collective Wiring Module Kits
Size 2 & 3
Size Kit Number
25-Pin, D-Sub Module* † RSCD251MC
M23, 12-Pin* † RSCM231MC
19-Pin Heavy Duty Round* † RSCC191MC
D-Sub Cable, Non-IP, 3 Meters RP8LMH25M3A
* Kit includes: Wiring Module with Circuit Board Connection, Gasket, Tie
Rods and Bolts.
† Available with, ISO 5599-2, Sizes 2 & 3.
25-Pin, D-Sub
Collective Wiring Module
19-Pin Heavy Duty
Wiring Module
Sizes 00, 0, 1, 2 & 3
25-Pin, D-Sub Cable
Interface
Plate
Right Hand
End Plate
Size 1 to Size 2 Shown
15407-2 & 5599-2 Plug-in
Transition Plate Kit
Transition
Plate
RK21R01100P
1 Inch Plastic
Conduit Plug
Options
01 Non-Collective Wiring
L1* Collective Wiring End Plate, Top Ported
L2 25-Pin, D-Sub
L3 19-Pin, Round, Brad Harrison
L4 12-Pin, M23
L5** 16-Pt. Terminal Strip
L6 Serial Bus
* Used Only with Transition Plate Type “28”. Must order
Collective Wiring Modules Separately.
** Only Available with Transition Plate Type “24”.
R PS40 26 L2 0 C P
Basic Series
Size 1, 2, &3 PS40
Size 00 & 0 PS56
Transition Plate Type
Series W66, Size 0 / Series W66,
Size 00 to Size 2
24*
Size 1 to 2 to 3 25
Size 1 to 3 26
Size 1 to 2 27
Size 2 to 3 28
* Used Only with Basic Series PS56.
Thread Type
0 NPT or No Ports
1 BSPP “G”
Engineering Level
Blank Basic Series PS56
C Basic Series PS40
Transition Plates, Collective Wiring Modules
Kit includes:
1 Left-hand end plate,
1 Transition plate,
1 Right-hand end plate, &
1 Valve Driver Module (when ordered with L6 option).
