Page 20: Maximum solenoids energized simultaneously, Example, How to order manifold assemblies

20
© 2012,
ROSS
CONTROLS
®
.
All Rights Reserved.
Maximum Solenoids Energized
Simultaneously
(Interconnect Circuit Boards)
Size 1, 2 & 3 (5599-2)
#14 End
#12 End
Station 1 Station 2 Station 3

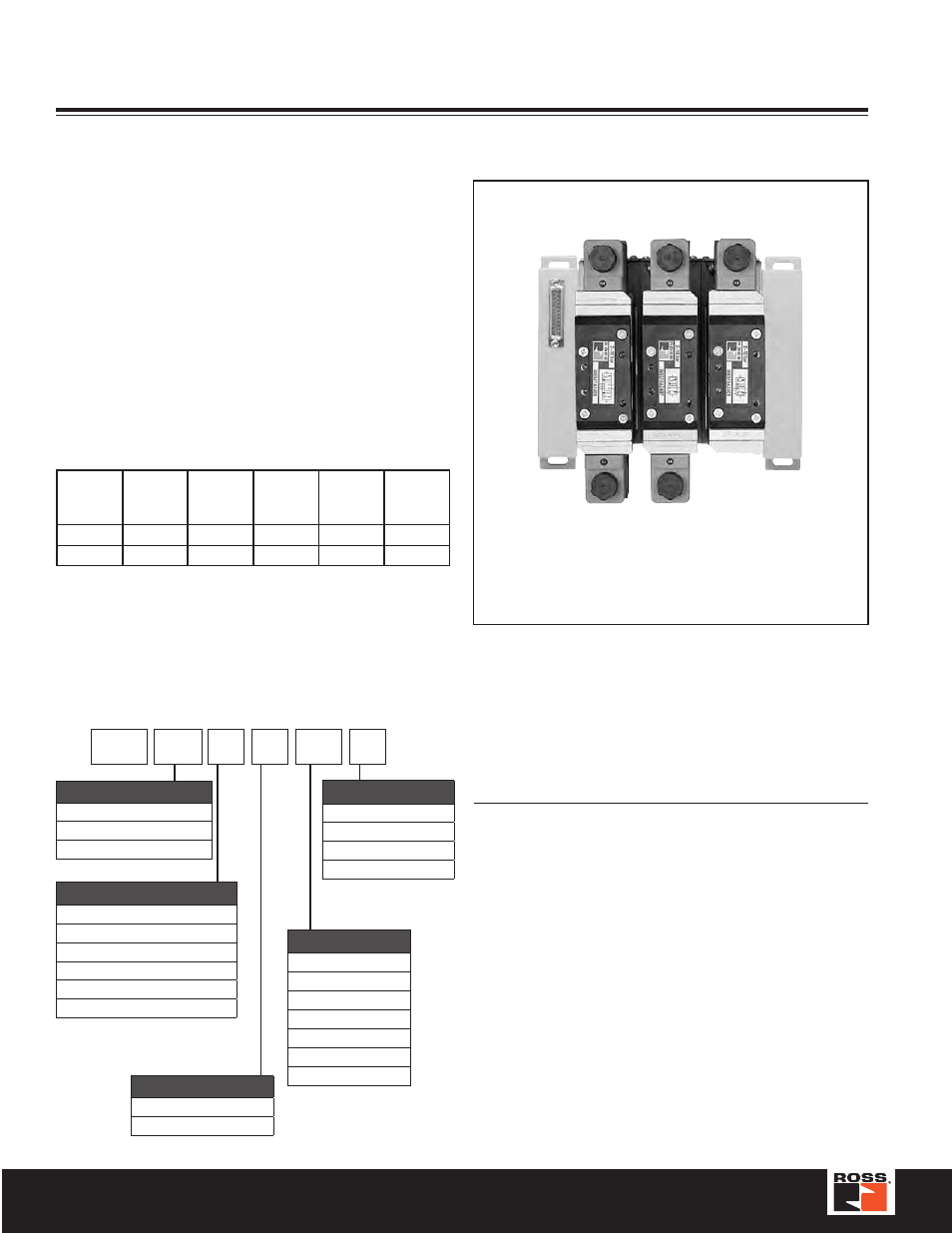

Example
Application requires a 3-Station manifold with a valve,
regulator on Station 3.
Item
Qty. Part No.
Location
01
1 AAH1E003
02
1 W6577A2401 .............................................. Station 1
03
1 RPS401155MCP ......................................... Station 1
04
1 W6576A2407 .............................................. Station 2
05
1 RPS401155MCP ......................................... Station 2
06
1 W6576A2401 .............................................. Station 3
07
1 RPS401155MCP ......................................... Station 3
NOTE:
When using the Enclosure / Lead Length “J” or “M” option:
24VDC - maximum number of coils is 20.
120VAC - Coils limited by the number of pins available in the connector.
(25-Pin, D-Sub = 24 coils; 19-Pin Brad Harrison = 16, 12-Pin, M23 = 8).
NOTE:
Construct manifold assemblies from left to right while looking at the cylinder
ports.
Valves must be ordered as External Pilot when using Interposed Regulator.
Example:
3-Station Manifold with (3) Size 1 Valves
On Manifold Bases
Manifold Assembly Model Number — Size 1, 2 & 3 (5599-2)
1. List Manifold Assembly call out. This automatically includes
the end plate kit assembly.
2. List complete Valve, Regulator, Flow Control and Base model
number. List left to right, LOOKING AT THE CYLINDER
PORTS on the #12 end of the manifold.
The left most station is station 1. (If a blank station is
needed, list the blanking plate part number and the individual
manifold number in the station specified.)
How To Order Manifold Assemblies
Voltage
Voltage
Code
25-Pin
D-Sub
19-Pin
Round
Single
12-Pin
M23
Serial
Bus
24VDC
W
20
16
8
21
120VAC*
Z
24
16
8
N/A
* Not CSA certified for 25-Pin, D-Sub option.
AA H1 D 0 03
–
Number of Stations*
01
02
03
04
•
•
21
Transition Plate
Blank No Transition Plate
C
Size 1 to 2
D
Size 1 to 3
E*
Size 2 to 3
* Use Largest Size (H3) Number.
Not Available with Type “V”.
End Plate Type
25-Pin
D
†
19-Pin
E
†
M23, 12-Pin
G
†
Standard - Non-Collective Wiring S
Serial Bus for Size 1
X*
Serial Bus for Size 2 & 3
Y*
* Valve Driver Module included. Must order
Communication Modules Separately.
†
Multi Connector Included.
Manifolds
Port Type
NPT
0
BSPP “G”
1
Valve Series
Right & Left End Plate Size 1 H1
Right & Left End Plate Size 2 H2
Right & Left End Plate Size 3 H3
