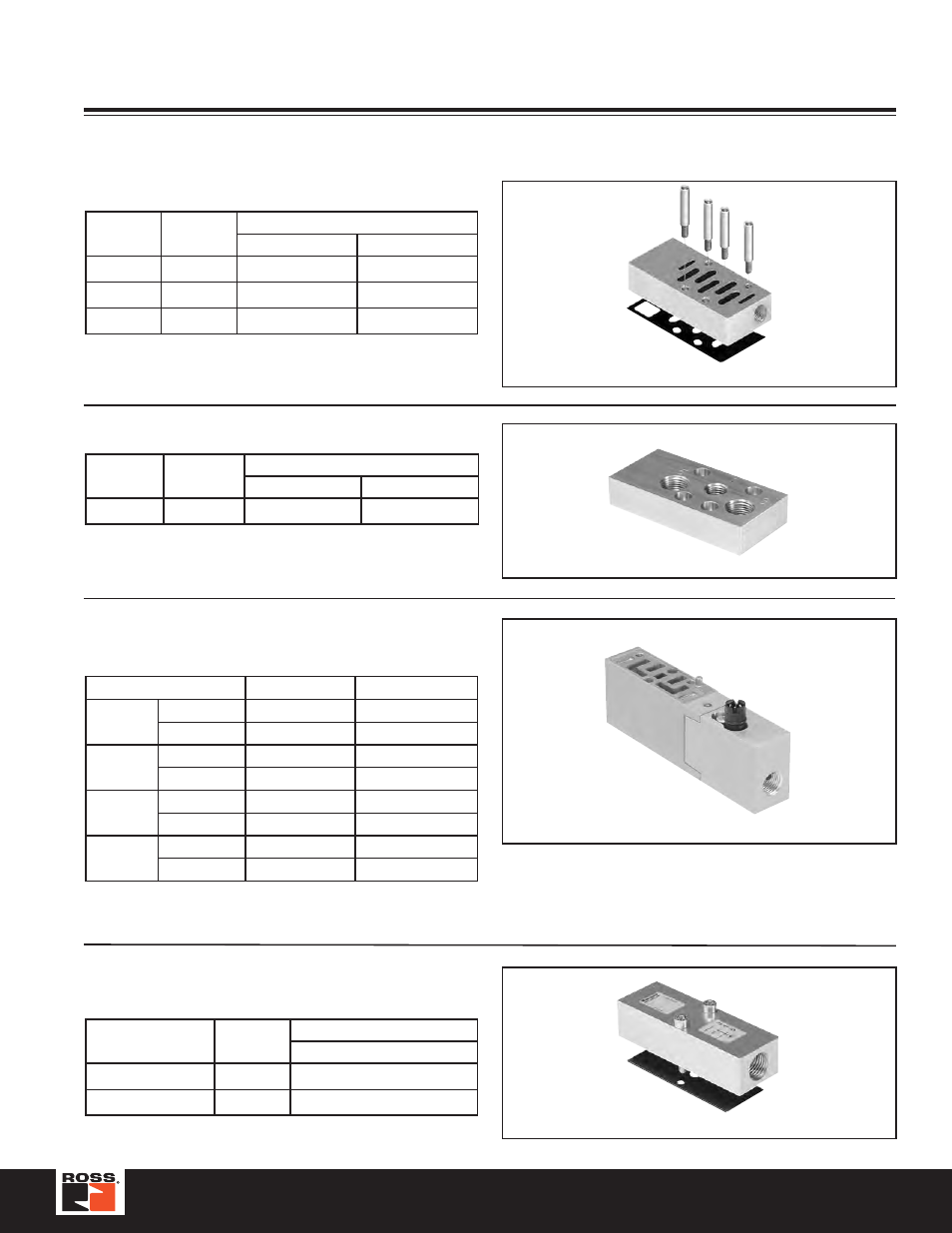

5599-1 Shown
Remote Pilot Access Plate Kits
Size Port Size
Kit Number
NPT BSPP “G”
Size 1 1/8" RPS401500CP RPS401501CP
Size 2 1/8" RPS411500CP RPS411501CP
Size 3 1/8" RPS421500CP RPS421501CP
Kit includes: Pilot Port Access Plate, Gasket and Mounting Studs.
Size 1 Auxiliary Access Plate Kits
Size Port Size
Kit Number
NPT BSPP “G”
Size 1 1/4" & 3/8" RPS403000CP RPS403001CP
Kit includes: Pilot Port Access Plate, Gasket and Mounting Screws.
• Used on Size 1 Manifolds to provide auxiliary access to Ports 1, 3 & 5.
• Port 1: 1/4", Ports 3 & 5: 3/8".
Height: .72 Inch
Interposed Supply &
Exhaust Modules
Valve Size NPT BSPP “G”
Size 00
(15407-1) Supply RPS562600P RPS562601P
Exhaust RPS562700P RPS562701P
Size 0
(15407-1) Supply RPS552600P RPS552601P
Exhaust RPS552700P RPS552701P
Size 00
(15407-2) Supply RPS561600P RPS561601P
Exhaust RPS561700P RPS561701P
Size 0
(15407-2) Supply RPS551600P RPS551601P
Exhaust RPS551700P RPS551701P
Quantity 1
• Used on Size 00 & Size 0 valves to provide a pressure or exhaust path to
individual valves.
15407-2 Shown
Intermediate Air Supply Bases
15407-1
Size Port Size
Kit Number
NPT
Size 00 (15407-1) 1/8" RD02P-01-80
Size 0 (15407-1) 1/4" RD01P-02-80
Kit includes: Gasket and Mounting Bolts. RD01P-02-80 Shown
Accessories
Remote Pilot Access Plates, Exhaust Modules, Air Supply Bases
