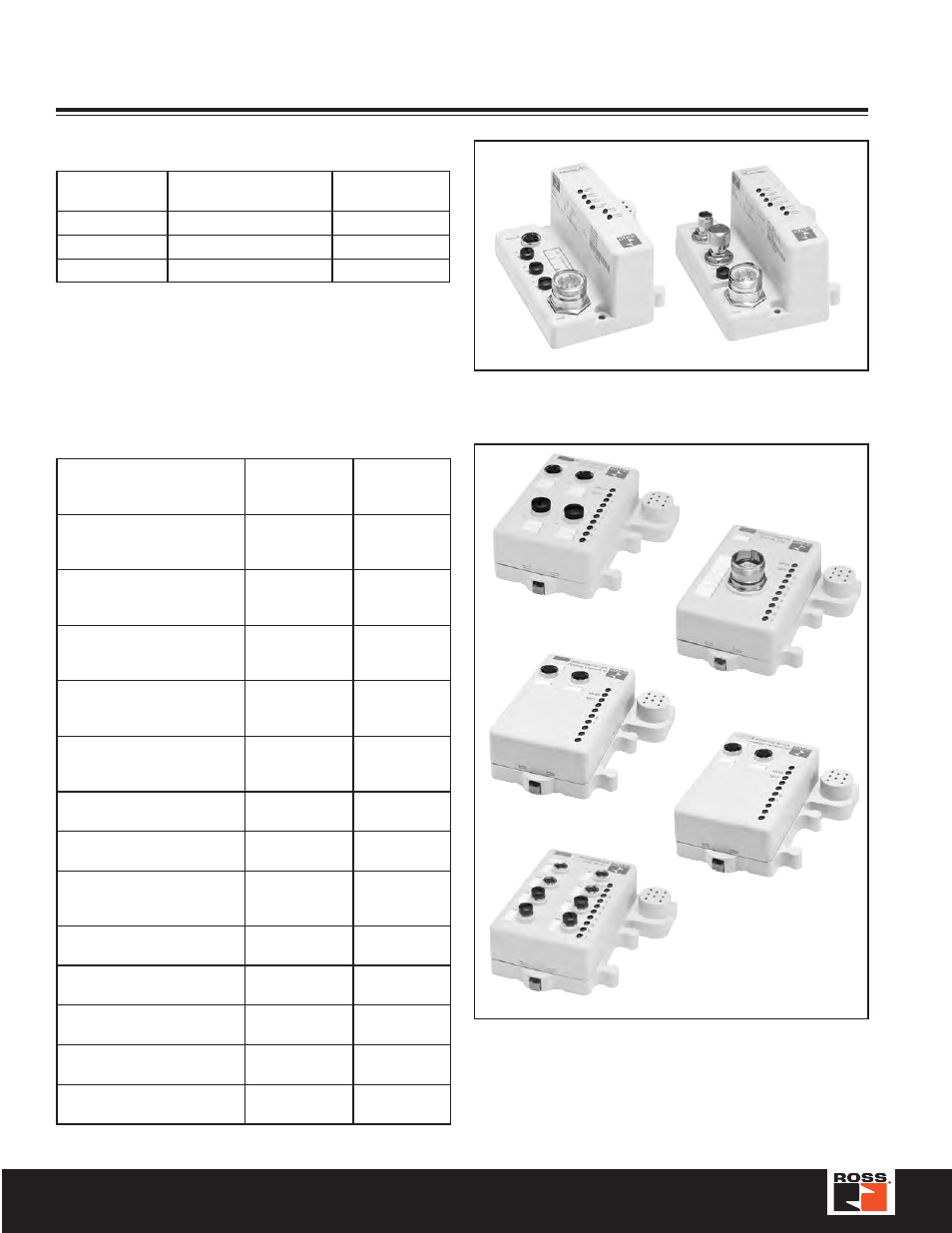

Communication Modules*
†§ DeviceNet ™
(M18 or M12)
RPSSCDM18PA (M18) or
RPSSCDM12A (M12)
10 to 28.8VDC
†§ ControlNet™ RPSSCCNA 10 to 28.8VDC
†§ Ethernet I/P ™ RPSSCENA 10 to 28.8VDC
†§ Profibus-DP ® RPSSCPBA 10 to 28.8VDC
* IP67 Certified
† Reference the following Documents for Installation Instructions.
DeviceNet™ - A10313, A10311; ControlNet™ - A10315
Ethernet I/P - A10316; Profibus-DP - A10314
§ Requires a RPSST8M23A or RPSSV32A in all manifold assemblies.
RPSSV32A is included in factory assembled manifolds and Serial Bus End
Plate Kits.
EDS and GSD files located at www.rosscontrols.com
I/O Modules*
Reference the following Documents for Installation Instructions.
† A10318
+ A10319
§ A10320
‡ A10321
** A10322
# Can be used with RPSSTERM.
See www.rosscontrols.com
RPSSCENA RPSSCCNA
RPSST8M12A
RPSSN8M8A
RPSSP8M23A
RPSSNACM12A
RPSSTACM12A
* IP67 Certified
†
8 Digital Inputs M12
(NPN Sinking - Requires
PNP Sourcing Input Device)
RPSSN8M12A
10 to
28.8VDC
†
8 Digital Inputs M12
(PNP Sourcing - Requires
NPN Sinking Input Device)
RPSSP8M12A
10 to
28.8VDC
†
8 Digital Inputs M8
(NPN Sinking - Requires
PNP Sourcing Input Device)
RPSSN8M8A
10 to
28.8VDC
†
8 Digital Inputs M8
(PNP Sourcing - Requires
NPN Sinking Input Device)
RPSSP8M8A
10 to
28.8VDC
†
8 Digital Inputs M23 12-Pin
(PNP Sourcing - Requires
NPN Sinking Input Device)
RPSSP8M23A
10 to
28.8VDC
†
8 Digital Inputs M23 12-Pin
(NPN Sinking - Requires
PNP Sourcing Input Device)
RPSSN8M23A
10 to
28.8VDC
+
8 Digital Outputs M12
(PNP Sourcing)
RPSST8M12A
10 to
28.8VDC
+
8 Digital Outputs M8
(PNP Sourcing)
RPSST8M8A
10 to
28.8VDC
§
4 Digital Output,
High Watt Relay M12
(PNP Sourcing) (2 Amp)
RPSTR4M12A 24VDC
+#
8 Digital Outputs M23
(PNP Sourcing)
RPSST8M23A
10 to
28.8VDC
‡
2 Analog Inputs
Voltage (M12)
RPSSNAVM12A
0 to
10V ± 10V
‡
2 Analog Inputs
Current (M12)
RPSSNACM12A
4 to 20mA or
0 to 20mA
**
2 Analog Outputs
Voltage (M12)
RPSSTAVM12A
0 to
10V ± 10V
**
2 Analog Outputs
Current (M12)
RPSSTACM12A
4 to 20mA or
0 to 20mA
Serial Bus System
