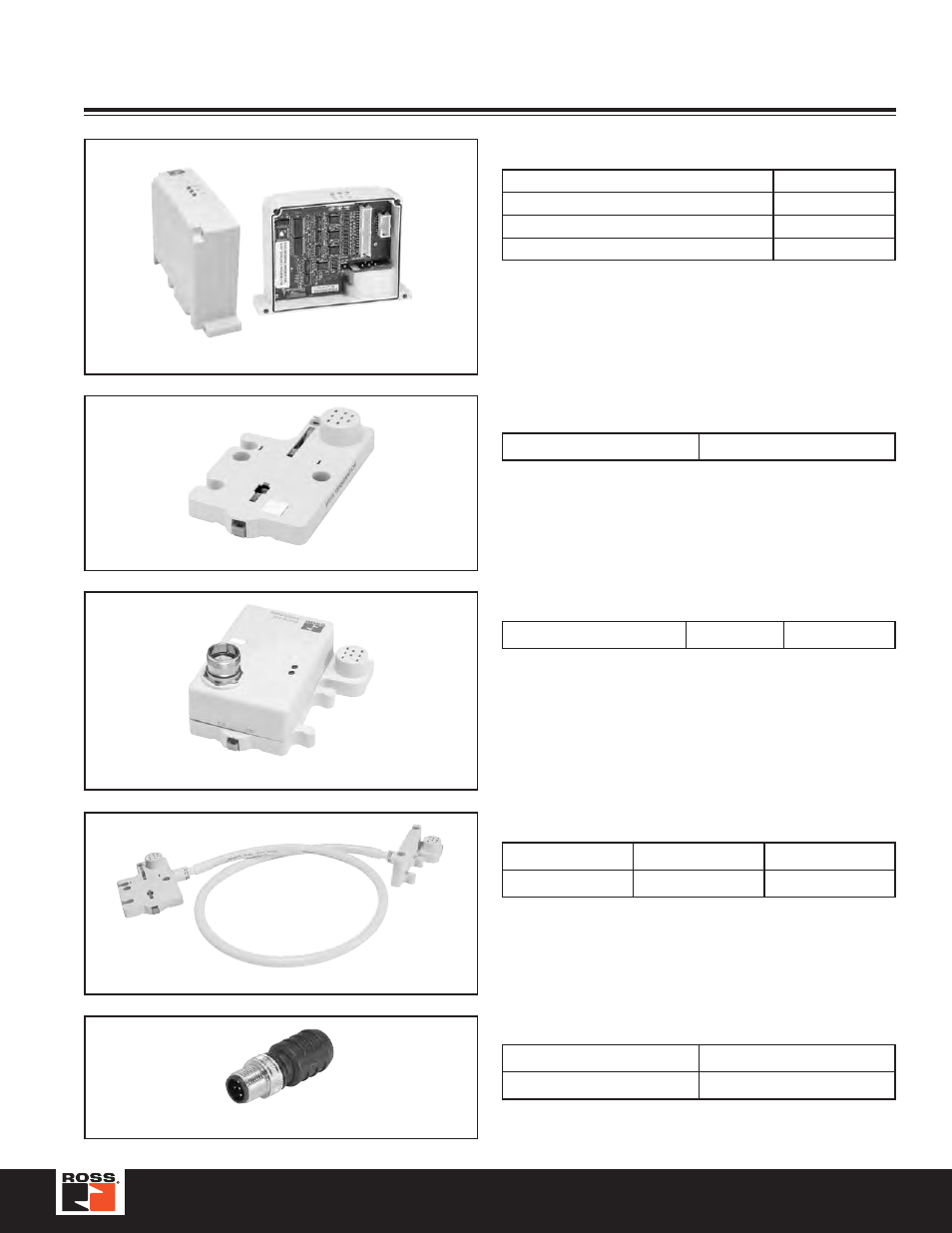

Valve Driver Module
32 Point Module – Size 00, 0, 1, 2, & 3 RPSSV32A* †
24 Output Cable – Size 00 & 0 RPS5624P †
25 - 32 Output Cable – Size 00 & 0 RPS5632P †
24 Output Cable – Size 1, 2, & 3 RPS4024P †
Power Extender Module
24VDC Field Power Module RPSSSE24A 24VDC
Terminating Base Module
Terminating Module RPSSTERM
RPSSV32A
RPSSTERM
RPSSSE24A
Bus Extender Cable
1 Meter Cable* RPSSEXT1 24VDC
3 Meter Cable* RPSSEXT2 24VDC
* Requires a RPSSSE24A Power Extender Module.
IP67 Certified
See www.rosscontrols.com
RPSSEXT1
A Power Extender Module must be used on every 12th Module in an Serial Bus
assembly. See www.rosscontrols.com
Reference Document A10317 and A10311 for configuration instructions. See
www.rosscontrols.com
Used as the last Terminating Module for a Stand Alone Serial Bus Assembly.
A RPSST8M23A must be located in the Serial Bus assembly.
* Reference Document A10312 for Installation Instructions.
See www.rosscontrols.com
† Serial Bus Manifold assemblies and end plate kits include a valve driver module
(RPSSV32A) and cable.
Series W66, Size 00 / Series W66, Size 0 24 output manifolds require a
RPS5624P.
Series W66, Size 00 / Series W66, Size 0 32 output manifolds require a
RPS5624P + RPS5632P.
Size 1, 2, & 3 manifolds require a RPS4024P, allowing 21 outputs.
Devicebus Terminating Resistor
DeviceNet™ M12 Type A RP8BPA00MA
Profibus-DP M12 Type B RP8BPA00MB
RP8BPA00MA
Serial Bus System
