8

© 2012,

ROSS

CONTROLS

®

.

All Rights Reserved.

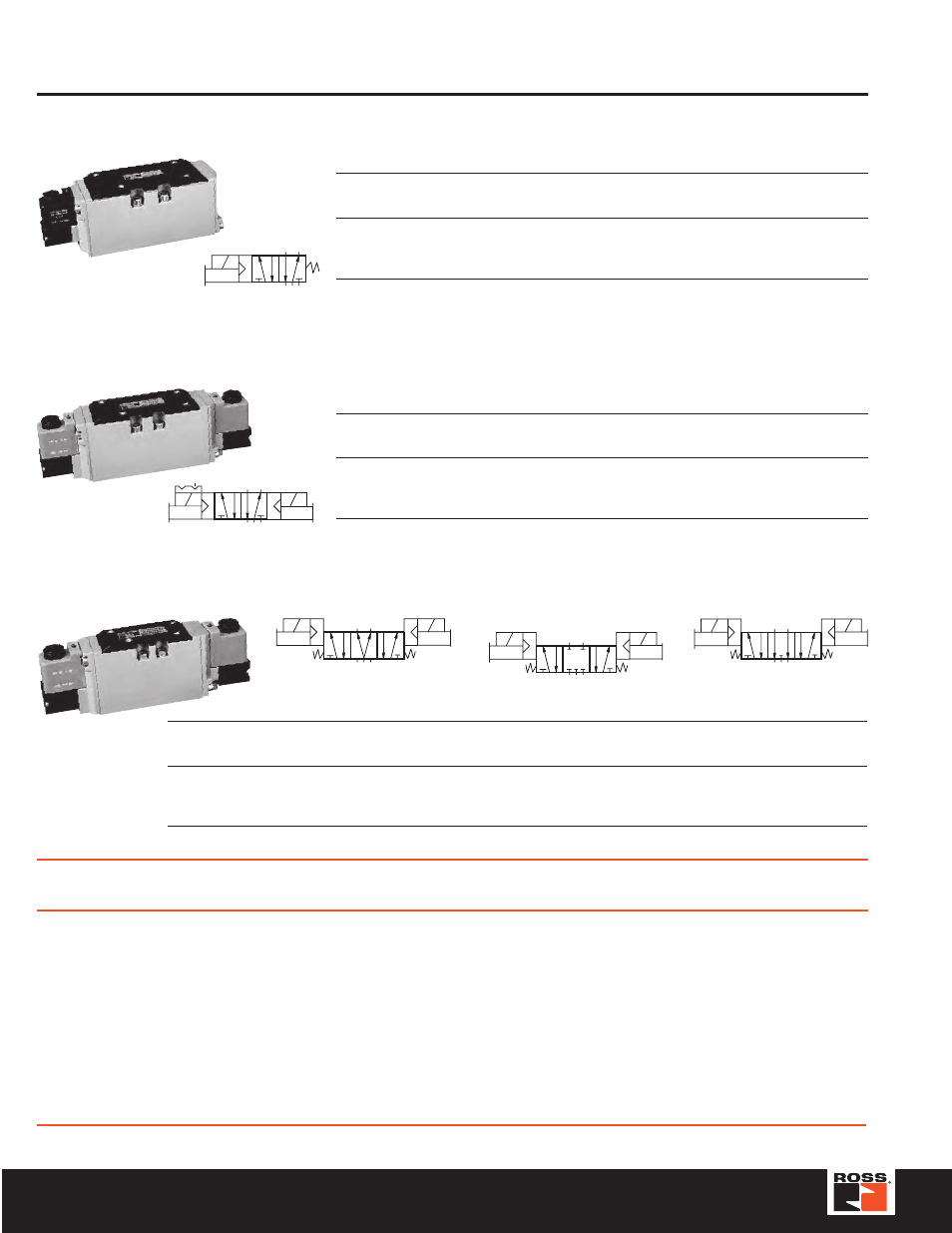

5/2 Valves – Single Solenoid Pilot Controlled, Spring Return

1

2

3

4

5

12

14

5/3 Valves – Double Solenoid Pilot Controlled

5/2 Valves – Double Solenoid Pilot Controlled, Detented

STANDARD SPECIFICATIONS (for valves on this page):
Solenoids:
Rated for continuous duty.
Standard Voltages: 100-110 volts, 50 Hz; 100-120 volts, 60
Hz; 24 volts DC; 110 volts DC. For other voltages, consult
ROSS.
Power Consumption: Each solenoid. 6.5 VA holding on 50
or 60 Hz; 3.5 watts on DC (at 10 bar).
Ambient Temperature: 40° to 120°F (4° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air; 5 micron recommended.

Standard Inlet Pressure:
Size 1 models: 2-10 bar; Size 2 & 3 models: 1-10 bar.
All sizes also available up to 16 bar.
Pilot Supply: Internal/external supply selected automatically.
Required pressure at least 30 psig (2 bar).
Certification / Approval: CSA
Materials of Construction:

End Caps & Valve Body: Die Cast Aluminum

Fasteners: Zinc Plated Steel

Spool & Sleeve: Stainless Steel

Coils: Thermoset Plastic

The W65 Series has a base electrical connector which eliminates the need to disconnect wires to remove the valve. This eliminates drop cords,
simplifies maintenance and connection to Serial Data Communication systems. For more information, refer to Bulletin 379B (form number A10090).

Closed Center

1

2

3

4

5

12

14

1

2

3

4

5

12

14

Open Center

12

14

4

2

5 1 3

Power Center

ISO

Port

Valve Model Number*

Avg.

Dimensions inches (mm) Weight

Size

Size

Power Center Closed Center Open Center C

V

Length

Width Height

lb (kg)

1 1/4 - 3/8

W6577A2902

W6577A2401 W6577A2407 1.0

8.8 (224) 1.6 (41)

2.7 (69)

2.0 (1.0)

2 3/8 - 1/2

W6577A3901

W6577A3401 W6577A3407 2.3

9.0 (228) 2.1 (52)

2.8 (71)

2.5 (1.2)

3 1/2 - 3/4

W6577A4900

W6577A4401 W6577A4407 3.4 10.0 (254) 2.6 (67)

3.1 (78)

4.0 (1.9)

* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

ISO

Port

Valve Model

Avg.

Dimensions inches (mm) Weight

Size

Size

Number*

C

V

Length

Width Height

lb (kg)

1

1/4 - 3/8 W6576A2401

1.0

6.3 (161)

1.6 (41)

2.7 (69)

1.5 (0.7)

2

3/8 - 1/2 W6576A3401

2.3

7.3 (186)

2.1 (52)

2.8 (71)

2.0 (1.0)

3

1/2 - 3/4 W6576A4401

3.4

8.5 (216)

2.6 (67)

3.1 (78)

3.5 (1.6)

* Sub-base not included. See page 11-17 for sub-bases, manifolds and accessories.

1

2

3

4

5

14

ISO

Port

Valve Model

Avg.

Dimensions inches (mm) Weight

Size

Size

Number*

C

V

Length

Width Height

lb (kg)

1

1/4 - 3/8

W6576A2407

1.0

8.8 (224)

1.6 (41)

2.7 (69)

2.0 (1.0)

2

3/8 - 1/2

W6576A3407

2.3

9.0 (228)

2.1 (52)

2.8 (71)

2.5 (1.2)

3

1/2 - 3/4

W6576A4407

3.4

10.0 (254) 2.6 (67)

3.1 (78)

4.0 (1.9)

* Sub-base not included. See pages 11-17 for sub-bases, manifolds and accessories.

Spool and Sleeve Valves for ISO Sub-Bases (5599/II) Series W65

IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
