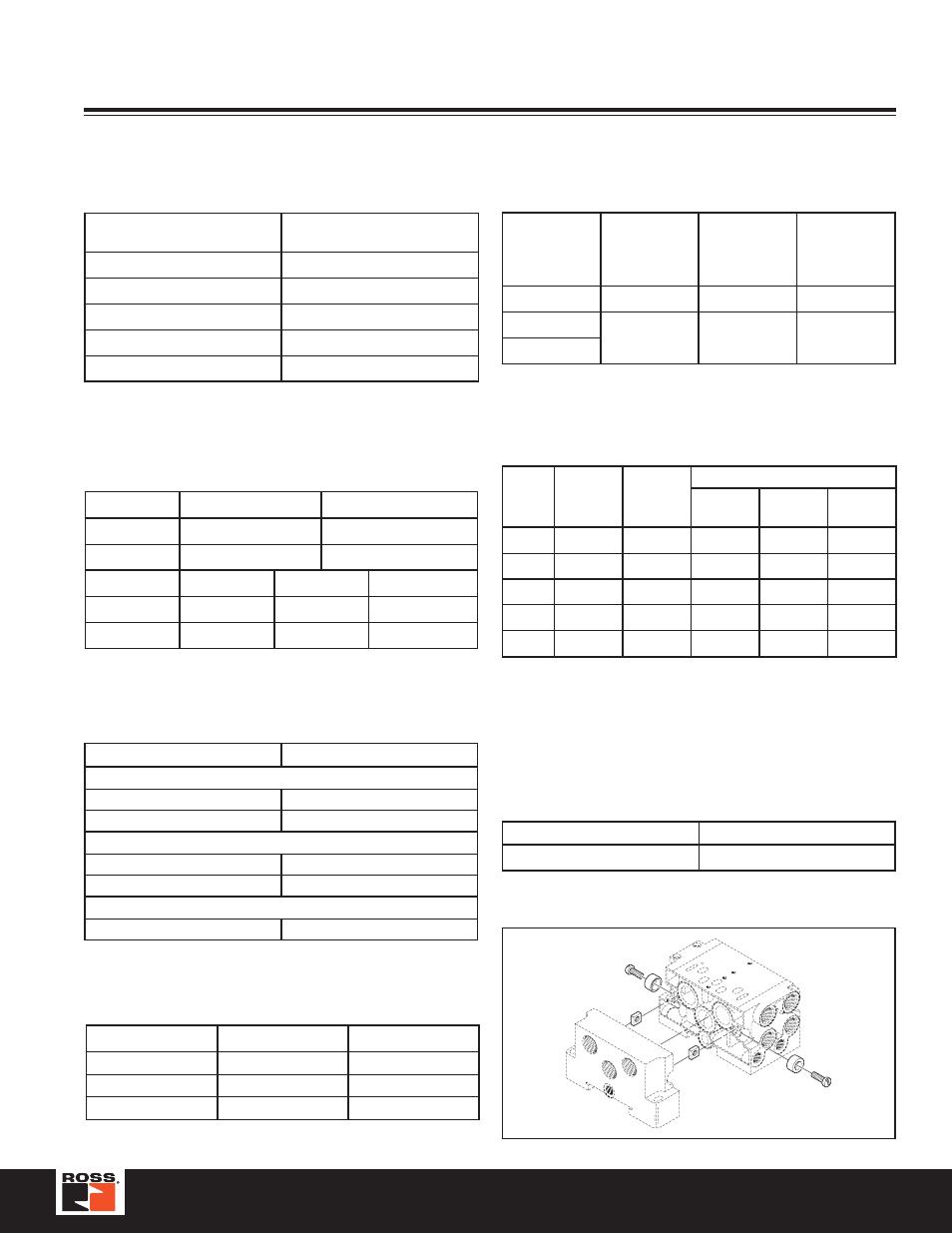

Ross Controls ROSS MODULAR I - Manual (Page 33)

33 www.rosscontrols.com
Service & Repair Kits
Spring Range Size 1 Size 2 & 3
0 to 30 PSIG RPS4050030P RPS4150030BP
2 to 60 PSIG RPS4050060P RPS4150060BP
5 to125 PSIG RPS4050125P RPS4150125BP
Quantity 1
Regulator Gauge Kits –
Size 1, 2 & 3
Gauge Type Kit Number
3/4" Face Air - Standard
0-60 PSIG RPS4051060BP
0-160 PSIG RPS4051160BP
1-1/2" Face Air - Large*
0-60 PSIG RPS4053060BP
0-160 PSIG RPS4053160BP
1-1/2" Face Liquid*
0-160 PSIG RPS4052160BP
* Includes brass pipe fitting extensions
Quantity 1
Regulator Conversion Kits
Regulator Spring Range Kits
Regulator & Flow Control
Mounting Studs
Type Size 00 Size 0
Flow Control RPS5636P RPS5536P
Regulator RPS5636P RPS5536P
Type Size 1 Size 2 Size 3
Flow Control RPS4036P RPS4136P RPS4236P
Regulator RPS4040P RPS4140P RPS4240P
Quantity 12
Valve
Size
Manual
Bonnet
Assembly
(w/o Spring)
Air Pilot
Bonnet
Assembly
Independent
By-Pass
Plate
Size 1 RPS4045BP RPS4047BP RPS4048BP
Size 2
RPS4145BP RPS4147BP RPS4148BP
Size 3
Quantity 1
Valve
Size
Standard
Size 00 RPS5605P*
Size 0 RPS5505P*
Size 1 797B11
Size 2 828B11
Size 3 858B11
Quantity 1
* Quantity 10
Valve to Base Gasket Kits
Body Service Kits
Kit Includes: Spool assembly with seals, all piston seals, return spring, pilot
selector gasket, coil to end cap gasket.
Quantity 1
Valve
Size
2
Position
Single
2
Position
Double
3-Position
Closed
Center
Open
Center
Power
Center
Size 00 RPS5601P RPS5601P RPS5602P RPS5603P RPS5604P
Size 0 RPS5501P RPS5501P RPS5502P RPS5503P RPS5504P
Size 1 1422K77 1423K77 1424K77 1425K77 1424K77
Size 2 1467K77 1468K77 1469K77 1470K77 1469K77
Size 3 1471K77 1472K77 1473K77 1474K77 1473K77
Manifold Bolt Kit –
(Size 00 & 0, 15407-1 Manifolds)
Part Number Items
RDX02M2MB* Bolt, Washer & Nut*
* Includes 10 Bolts, 10 Washers, 10 Nuts
** Use this number for both sizes, RPJLP02 & RPJLP01.
