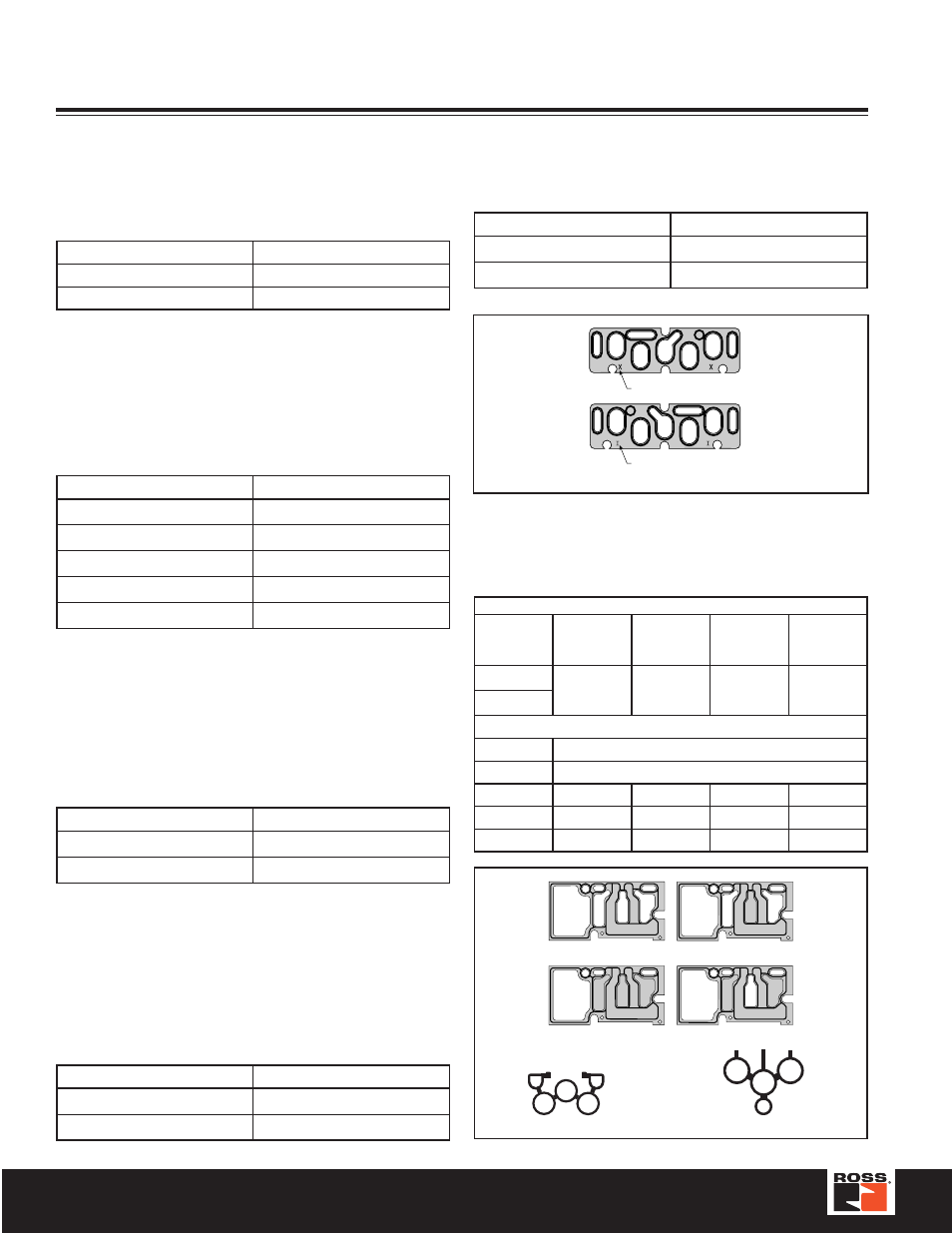

Service & Repair Kits
Series W65 Replacement Pilot
Assembly & Coil
Description Model Number
Pilot Assembly 1149C79
Coil 334B33
Specify Voltage and Hz when ordering.
Valve Bolt Kits
Valve Size Kit Number
Size 00 RPS5687P
Size 0 RPS5587P
Quantity 12
Manifold Hardware Kits
Valve Size Kit Number
Size 00 RPS5612P
Size 0 RPS5512P
Size 1 RPS4012P
Size 2 RPS4112P
Size 3 RPS4212P
Quantity 12
Regulator Kits
Valve Size Kit Number
Size 1 RPS4039P
Size 2 & 3 RPS4139P
Pilot Select Gasket Kits
Valve Size Kit Number
Size 00 RPS5605P
Size 0 RPS5505P
Quantity 10
Indicates External Pilot
Indicates Internal Pilot
Size 00 Shown
Manifold to Manifold Gasket Kits
15407-2
Size Standard
Blocked
#1 Port
Blocked
#1, 3, 5
Ports
Blocked
#3, 5
Ports
Size 00
RPS561AP RPS561BP RPS561CP RPS561DP
Size 0
15407-1
Size 00 RDX02M2MGSKT (RPJLP02)
Size 0 RDX01M2MGSKT (RPJLP01)
Size 1 RPS4013P — — —
Size 2 RPS4113P — — —
Size 3 RPS4213P — — —
RPS561AP
RPS561CP RPS561DP
RDX02M2MGSKT (RPJLP02) RDX01M2MGSKT (RPJLP01)
RPS561BP
