4.7.3 VGA Monitor Connection

The NANO-CV-D25502/N26002 has two female DB-15 connectors on the external

peripheral interface panel. The DB-15 connectors are connected to a CRT or VGA monitor.

To connect a monitor to the NANO-CV-D25502/N26002, please follow the instructions

below.

Step 1:

Locate the female DB-15 connector. The locations of the female DB-15

connectors are shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector.

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

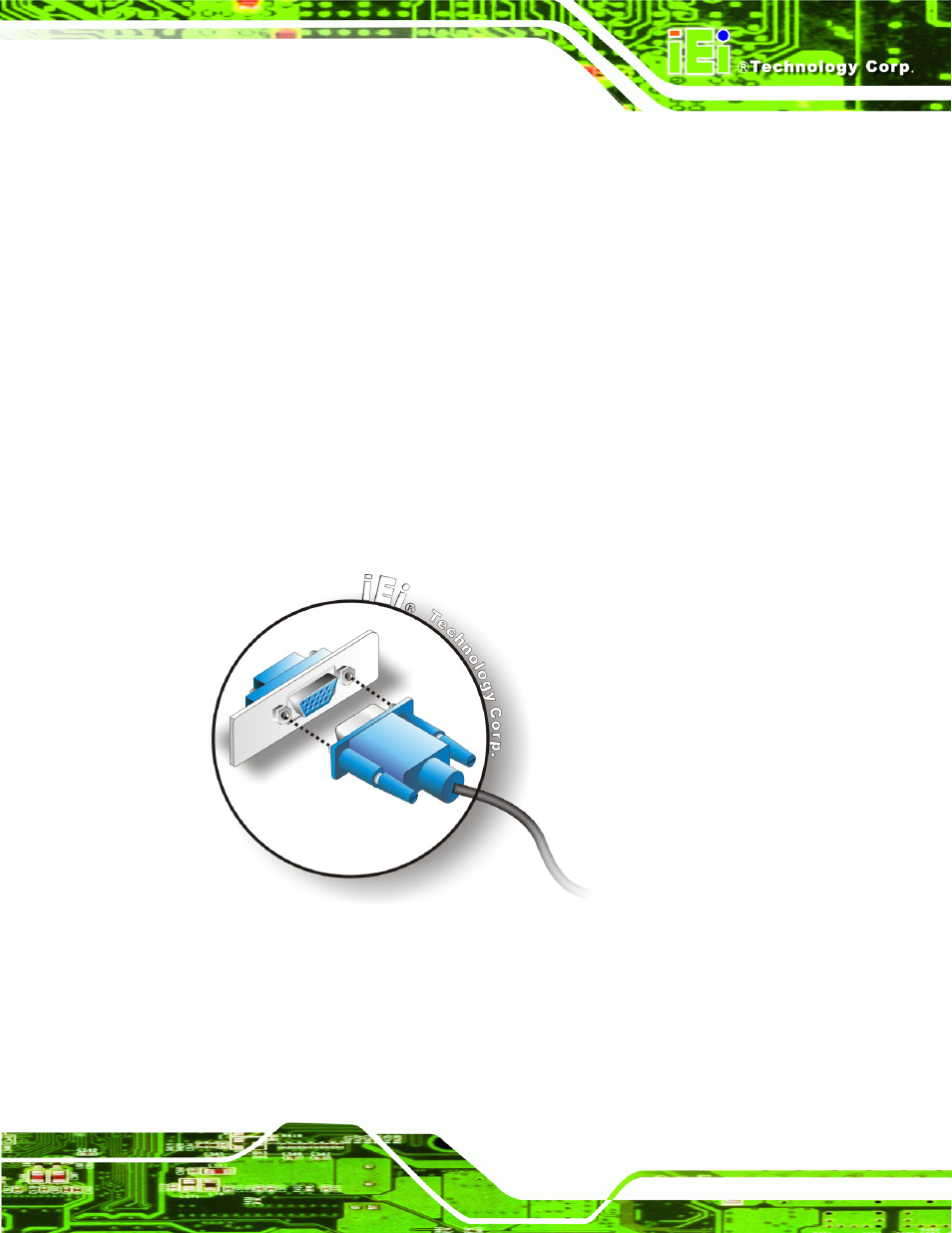

Figure 4-16: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
