NANO-CV-D25502/N26002 EPIC SBC
Page 43

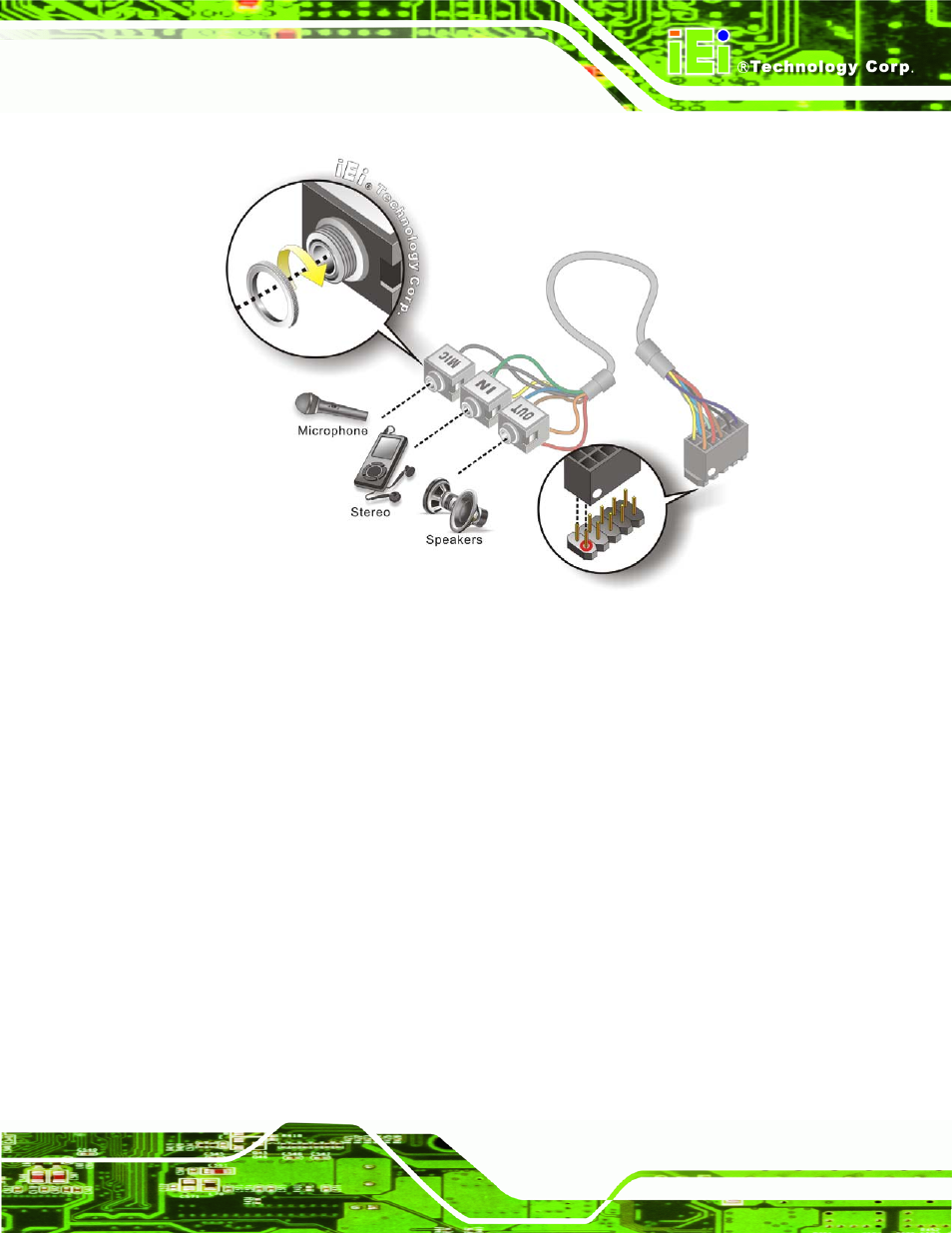

Figure 4-8: Audio Kit Cable Connection
Step 3: Connect the audio devices. Connect one speaker to the line-in audio jack, one
speaker to the line-out audio jack and a microphone to the mic-in audio jack.
4.6.3 LVDS LCD Installation
The NANO-CV-D25502/N26002 can be connected to a TFT LCD screen through the
LVDS crimp connectors on the board. To connect a TFT LCD to the
NANO-CV-D25502/N26002, please follow the steps below.
Step 1: Locate the connector. The location of the LVDS connector is shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector from the LVDS PCB driving
board to the LVDS connector as shown in Figure 4-9. When connecting the
connectors, make sure the pins are properly aligned.
