NANO-CV-D25502/N26002 EPIC SBC

Page 21

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2

Y-cable to add keyboard and mouse functionality to the system.

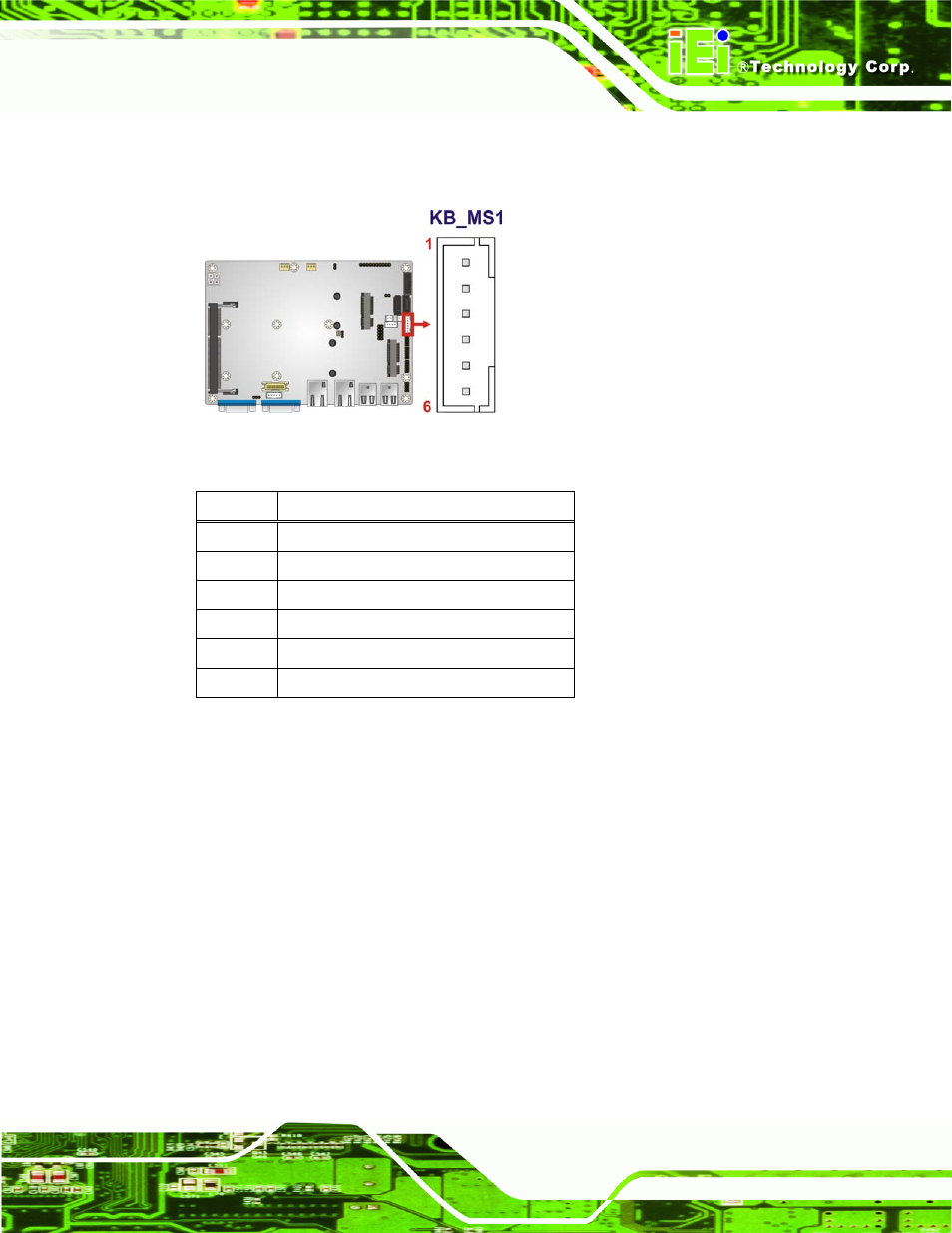

Figure 3-9: Keyboard/Mouse Connector Location

Pin Description

1 VCC

2 Mouse

Data

3 Mouse

Clock

4 Keyboard

Data

5 Keyboard

Clock

6 GND

Table 3-10: Keyboard/Mouse Connector Pinouts

3.2.9 LVDS1 Connector

CN Label:

LVDS1

CN Type:

20-pin crimp

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The 20-pin LVDS LCD connector can be connected to an 18-bit/24-bit single-channel

LVDS panel.
