NANO-CV-D25502/N26002 EPIC SBC
Page 22

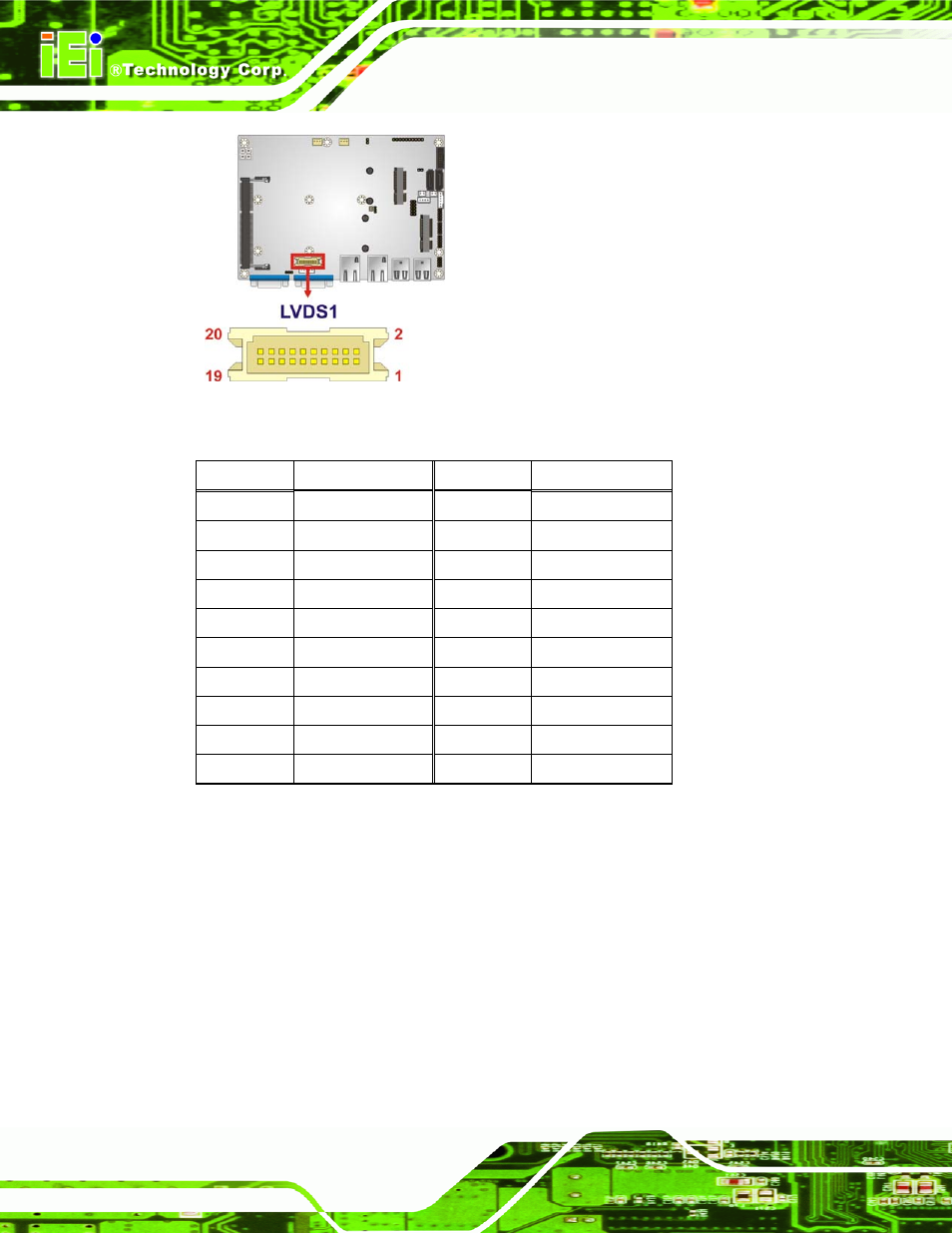

Figure 3-10: LVDS1 Connector Location
Pin Description Pin Description
1 GND 2 GND
3 LVDS_DATA0 4 LVDS_DATA0#
5 LVDS_DATA1 6 LVDS_DATA1#
7 LVDS_DATA2 8 LVDS_DATA2#
9 LVDS_CLK 10 LVDS_CLK#
11 NC 12 NC
13 GND 14 GND
15 LDDC_DATA 16 LDDC_CLK
17 VCC_LCD 18 VCC_LCD
19 VCC_LCD 20 VCC_LCD
Table 3-11: LVDS1 Connector Pinouts
3.2.10 PCIe Mini Card Slots
CN Label: M_PCIE1, M_PCIE2
CN Type: 52-pin PCIe Mini card slot
CN Location: See Figure 3-11
CN Pinouts: See Table 3-12
The M_PCIE1 slot can be connected to a full-size PCIe Mini card while the M_PCIE2 slot
can be connected to a half-size PCIe Mini card.
