NANO-CV-D25502/N26002 EPIC SBC
Page 39

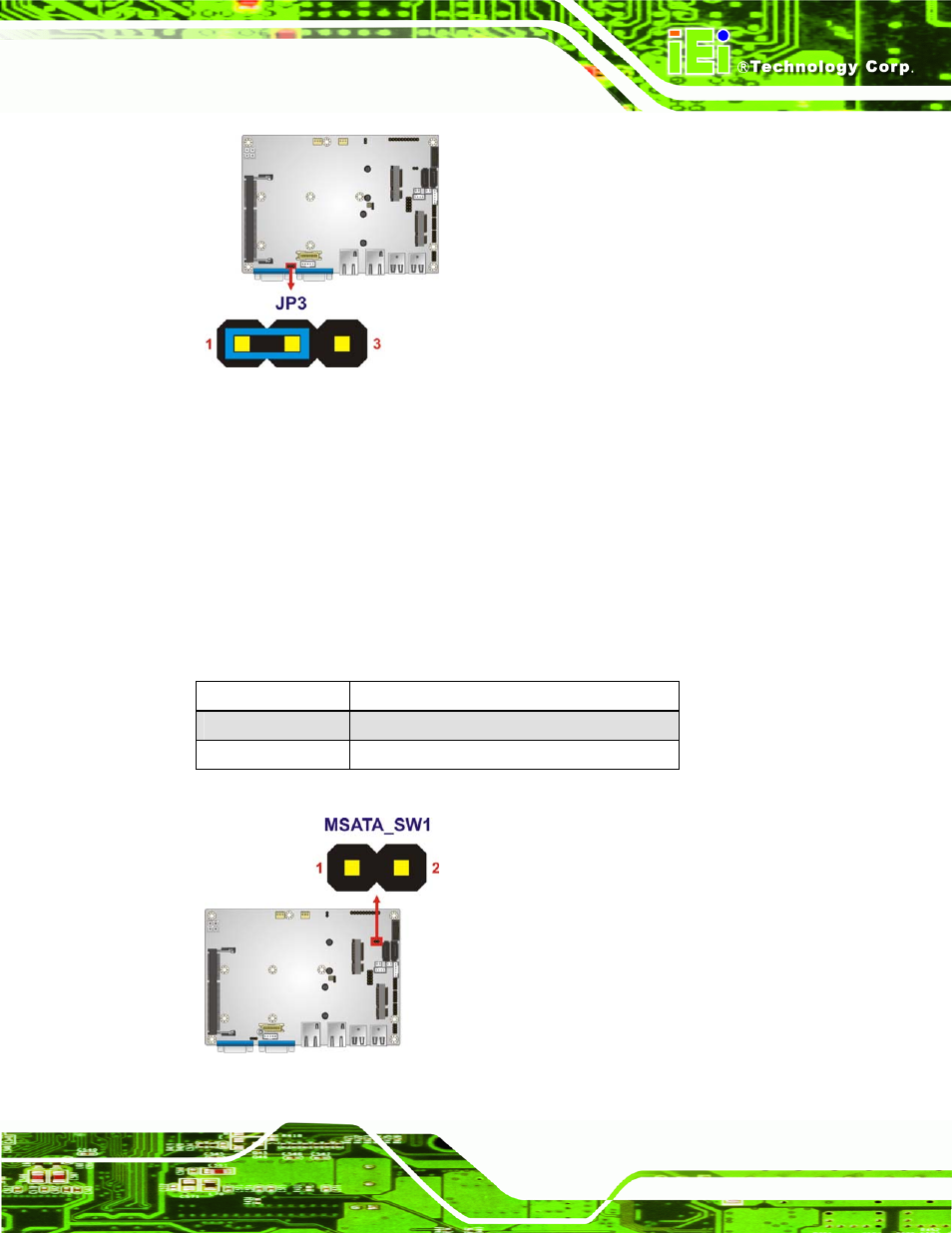

Figure 4-4: LVDS1 Voltage Selection Jumper Location
4.4.4 mSATA/PCIe Mini Selection
Jumper Label: MSATA_SW1
Jumper Type: 2-pin header
Jumper Settings: See Table 4-5
Jumper Location: See Figure 4-5
The mSATA/PCIe Mini mode selection jumper specifies the M_PCIE1 connector as
MSATA or PCIe Mini mode.
Setting Description
Off Auto detection (Default)
Short 1-2 PCIe Mini
Table 4-5: mSATA/PCIe Mini Mode Selection Jumper Settings
Figure 4-5: mSATA/PCIe Mini Mode Selection Jumper Location
