NANO-CV-D25502/N26002 EPIC SBC

Page 27

3.2.14 SATA Drive Connectors

CN Label:

SATA1, SATA2

CN Type:

7-pin SATA drive connector

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s

data transfer rate.

NOTE:

The SATA1 connector will be disabled when an mSATA device is

installed to the M_PCIE1 slot.

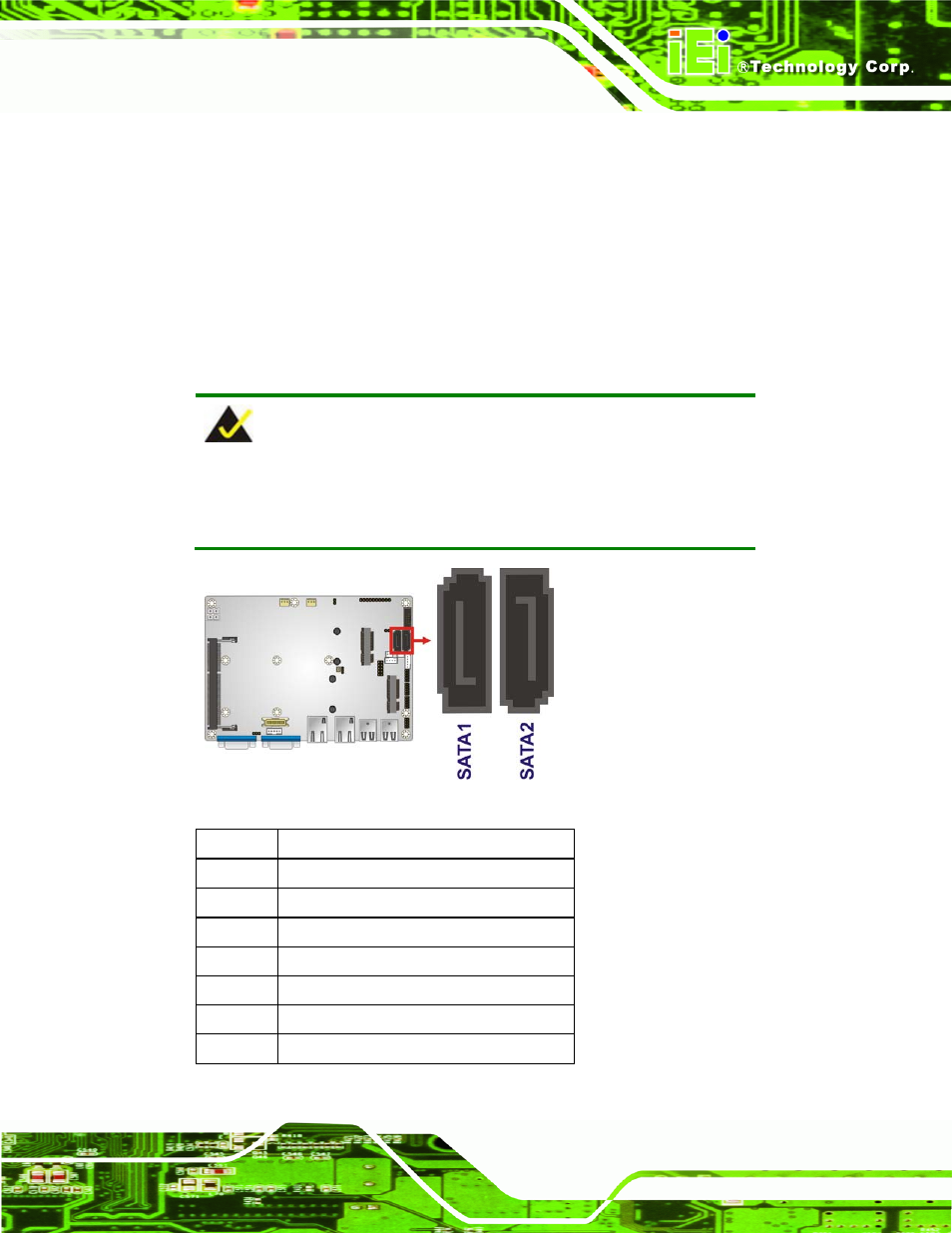

Figure 3-15: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-16: SATA Drive Connector Pinouts
