NANO-CV-D25502/N26002 EPIC SBC

Page 16

The 10-pin audio connector is connected to external audio devices including speakers and

microphones for the input and output of audio signals to and from the system.

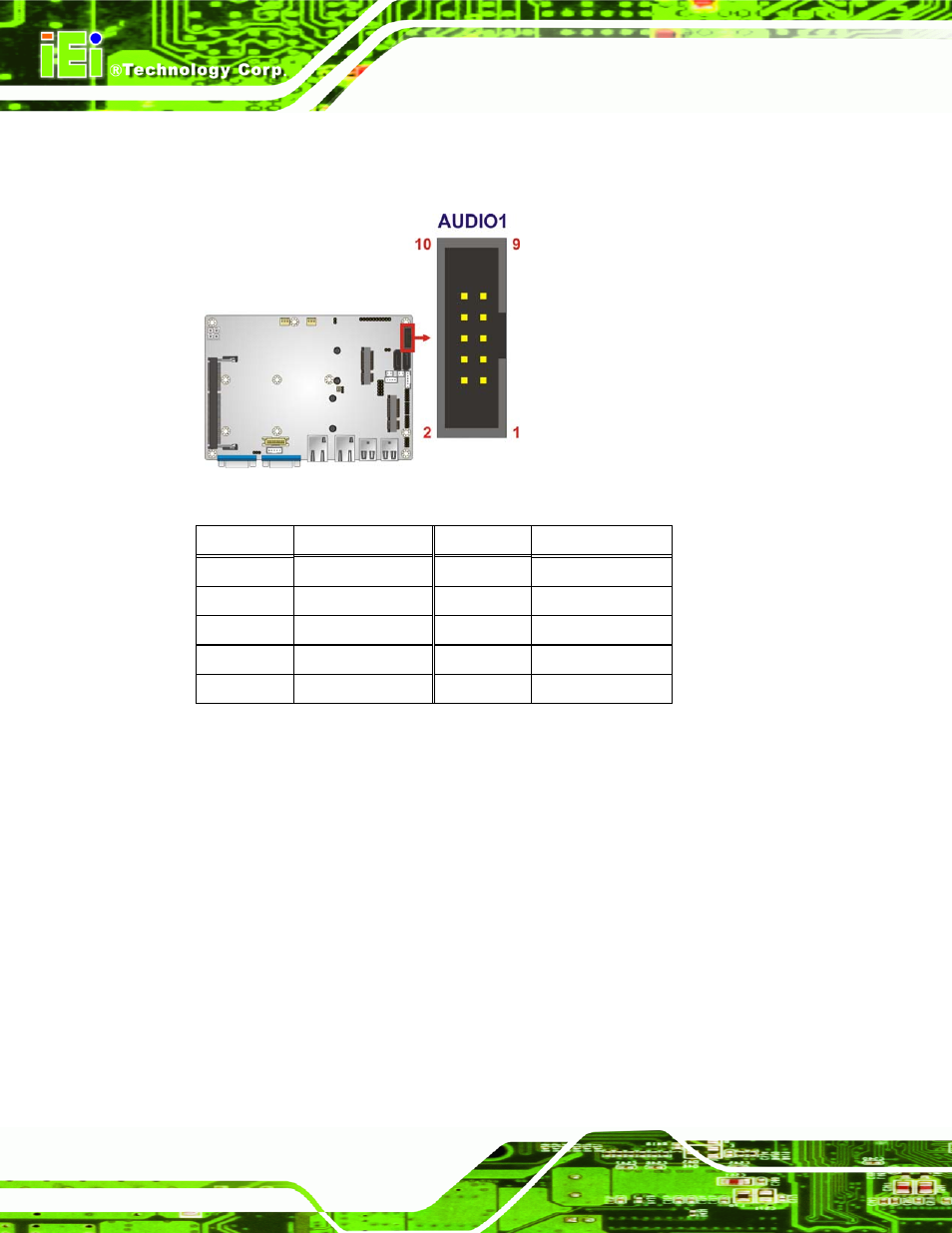

Figure 3-3: Audio Connector Location

Pin Description

Pin Description

1

SPK_R

2

LINE1_R

3

AUD_GND

4

AUD_GND

5

SPK _L

6

LINE1_L

7

AUD_GND

8

AUD_GND

9

MIC1_R

10

MIC1_L

Table 3-4: Audio Connector Pinouts

3.2.3 Backlight Inverter Connector

CN Label:

INV1

CN Type:

5-pin wafer

CN Location:

See Figure 3-4

CN Pinouts:

See Table 3-5

The backlight inverter connector provides the backlight on the LCD display connected to

the NANO-CV-D25502/N26002 with +12V of power.
